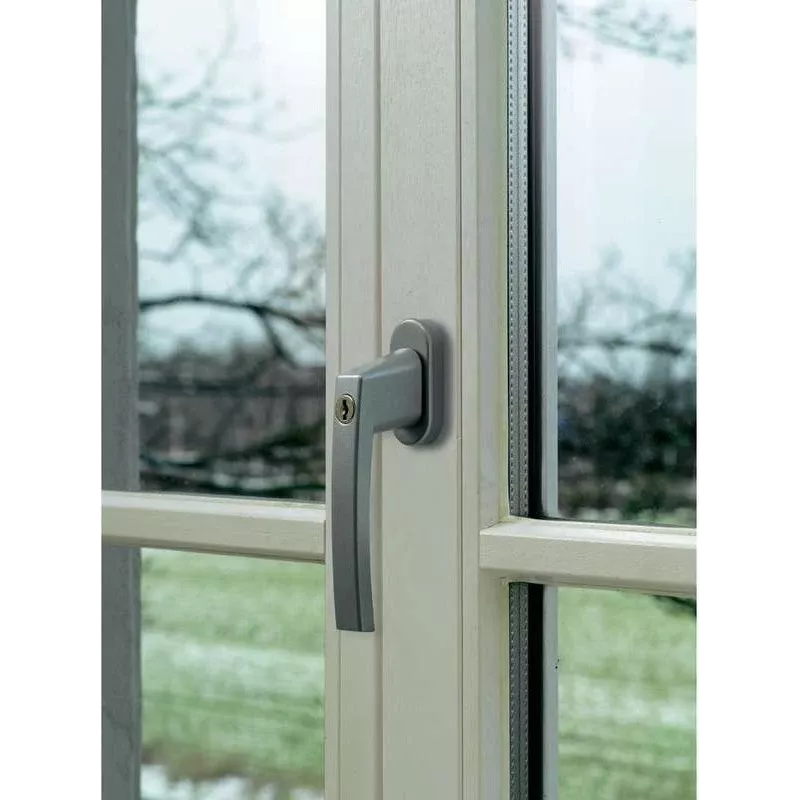

ABUS κλειδωνόμενη λαβή παραθύρου ασημί ABFS59486

The ABUS ABFS59486 is a lockable window handle that adds a key-operated barrier to tilt-and-turn or casement windows, preventing unauthorized opening from outside. Its push-cylinder lock sits flush in the handle body and is opened with one of the two included keys, making it a practical upgrade for ground-floor or accessible windows.

Highlights

• Keyed locking mechanism blocks handle rotation, securing the window against forced opening
• Square spindle with adjustable length from 32 to 43 mm fits common window profiles
• Aluminium construction in silver finish for durability and a neutral look
• Suitable for tilt-and-turn and casement windows with 43 mm mounting hole distance
• High resistance against twisting and tearing, with child-safety benefit

In daily use

The handle rotates 90° or 180° depending on the window's hardware, and the lock engages only when the handle is in the closed position. The push-cylinder design means you press the cylinder to lock, then turn the key to secure. Because the spindle length is adjustable, installation is DIY-friendly and does not require special tools.

Full specifications

• Product type: Lockable window handle
• Locking mechanism: Push cylinder with key
• Spindle type: Square spindle
• Spindle dimensions: 7 x 7 mm
• Spindle length: Adjustable 32 - 43 mm
• Mounting hole distance: 43 mm
• Rotation angle: 90° / 180°
• Material: Aluminium
• Colour: Silver
• Security features: Child safety, protection against unauthorized opening
• Application: Tilt-and-turn windows, casement windows
• Number of keys included: 2
• Locking type: Keyed different (standard)
• Resistance: High resistance against twisting and tearing
• Installation: DIY-friendly, easy self-assembly
• Standard compliance: DIN 18267

Final note

The ABFS59486 combines a proven locking principle with adjustable spindle length, making it a flexible retrofit option for many European window profiles.
