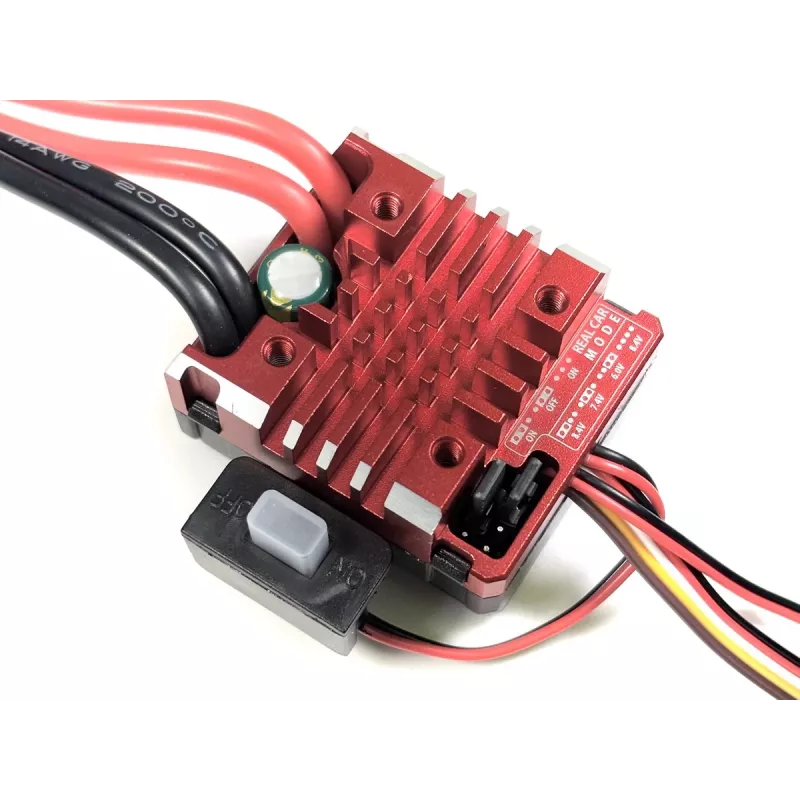

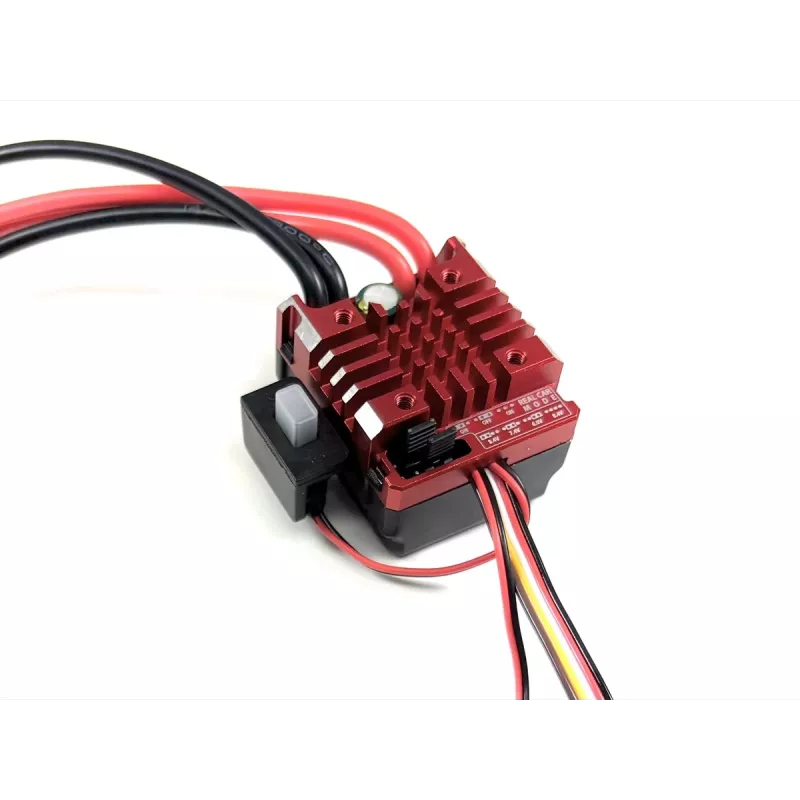

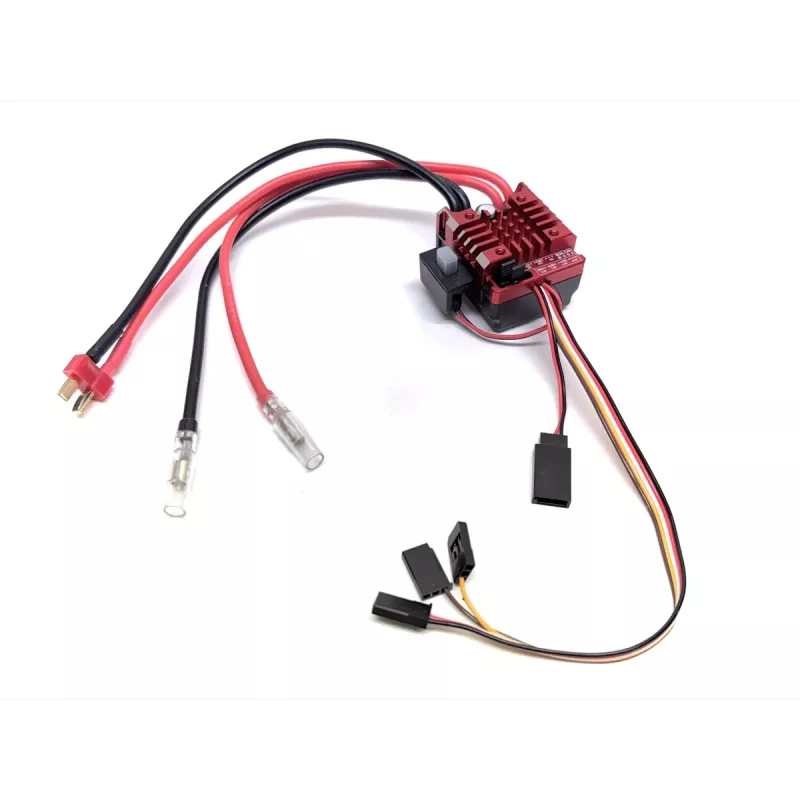

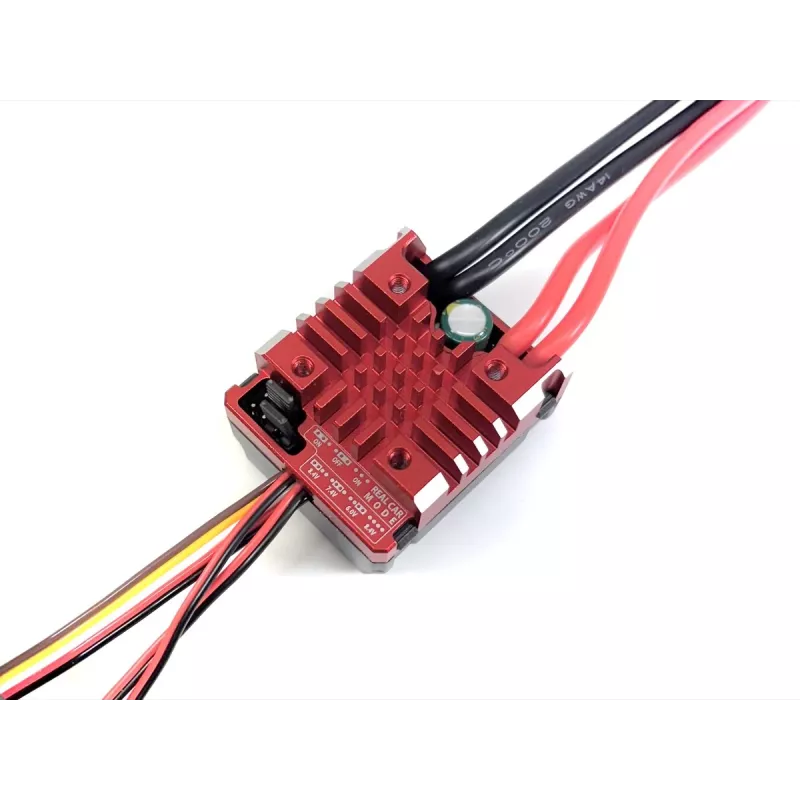

Absima 1:10 Brushed Crawler PRO 80A ESC (320A Peak, IP67)

This 1:10 scale brushed electronic speed controller delivers a massive 320A peak current, making it the go-to choice for demanding RC crawlers and trucks that need instant punch and reliable power delivery in any terrain. Its fully waterproof IP67-rated housing and robust construction ensure consistent performance even in mud, snow, or water crossings.

Advantages

The PRO 80A ESC combines high current handling with a switch-mode BEC for stable servo voltage under load. It supports both LiPo and NiMH batteries, with built-in low-voltage cutoff to protect your LiPo packs. Thermal protection and signal loss fail-safe add an extra layer of safety. The compact design with passive heat sink keeps temperatures in check without adding bulk.

Suitable for

• 1:10 scale rock crawlers and trail trucks
• Brushed 540/550 motors up to 80A continuous
• 2-3S LiPo or 5-9 cell NiMH power systems
• Wet and muddy conditions thanks to IP67 waterproofing

Key specifications

• Continuous current: 80A
• Peak current: 320A
• Input voltage: 2-3S LiPo / 5-9 cells NiMH
• BEC: 6V/3A switch mode
• Waterproof rating: IP67
• Motor connectors: 4.0mm bullet
• Battery connector: T-Plug (Deans style)
• Dimensions: 36.5 x 32 x 18 mm
• Weight: 39g

Recommendations

For optimal performance, pair with a high-torque 35T or 55T crawler motor and a 2S or 3S LiPo battery. Use the optional program card to fine-tune drag brake and punch settings for your driving style.
