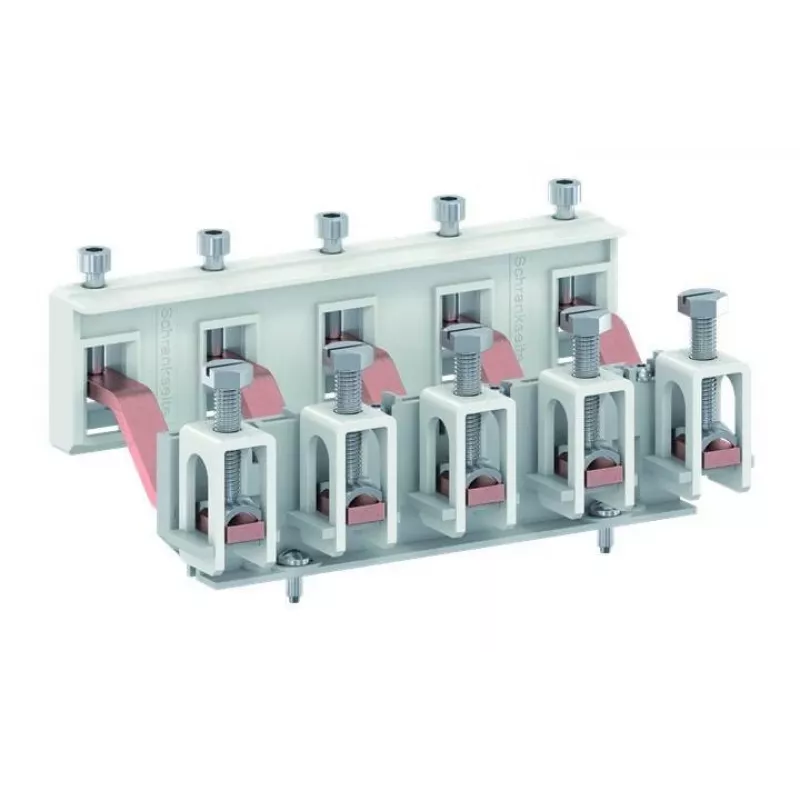

ABB Σύνδεσμος Τροφοδοσίας IP43 CZE60

The ABB Feed-in Connector IP43 CZE60 is a high-quality accessory designed for main power supply connections in distribution boards. Manufactured by Striebel & John, this connector ensures reliable and safe electrical distribution in industrial and commercial applications.

Advantages

This feed-in connector offers robust construction with a thermoplastic housing, providing durability and long service life. Its IP43 rating protects against solid objects larger than 1mm and water splashes, making it suitable for indoor environments. The screw terminal connection ensures secure and maintenance-free wiring.

Suitable for

• Main power supply connection in distribution boards
• 5-pole busbar systems (3P+N+PE)
• 12x5mm and 10x3mm busbar systems

Key specifications

• Rated current: 63 A
• Rated voltage: 400 V AC
• Number of poles: 5-pole (3P+N+PE)
• Ingress protection: IP43
• Connection type: Screw terminal
• Max. conductor cross-section (rigid): 35 mm²
• Max. conductor cross-section (flexible): 25 mm²
• Mounting type: For 5-pole busbar
• Busbar compatibility: 12x5mm / 10x3mm
• Module width: 3 TE (54 mm)
• Housing material: Thermoplastic
• Colour: Grey
• Rated impulse withstand voltage: 4 kV
• Operating temperature range: -25 to +55 °C
• Standards: IEC 61439-1, IEC 61439-3

Recommendations

For optimal performance, ensure compatibility with your existing busbar system and follow the manufacturer's installation guidelines. This connector is ideal for use in ABB distribution boards and similar enclosures.
