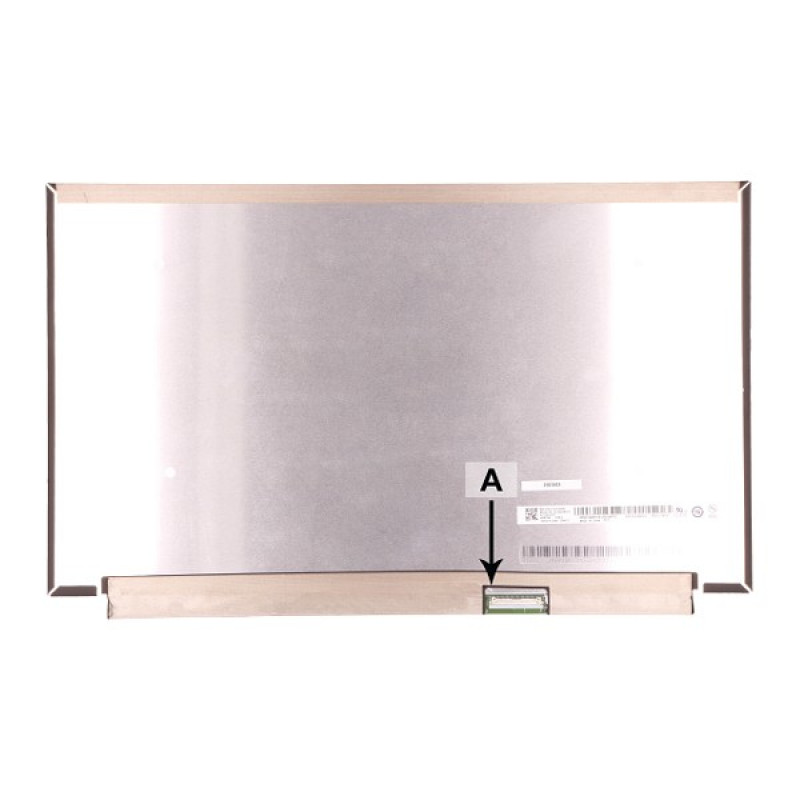

2-POWER LCD CSOT 15,6 inch UHD IPS 600nit (SD10Q66915)

A laptop technician replaces a cracked display in a high-end ultrabook, and this 2-POWER 15.6-inch UHD IPS panel brings the screen back to life with stunning clarity. Built around a CSOT SD10Q66915 LCD module, it delivers 3840 x 2160 resolution, 600-nit brightness, and 100% sRGB colour coverage for vivid, accurate visuals. The IPS technology ensures wide 178° viewing angles, while the anti-glare surface reduces reflections in bright environments. Designed for direct drop-in replacement, it uses an eDP connector and LED backlight for efficient power consumption. Whether you're repairing a workstation laptop or upgrading a gaming rig, this panel offers the performance and reliability expected from 2-POWER.

Key specifications

• Screen size: 15.6 inches
• Resolution: 3840 x 2160 (UHD 4K)
• Panel type: IPS (In-Plane Switching)
• Brightness: 600 cd/m² (nits)
• Refresh rate: 60 Hz
• Viewing angle: 178° horizontal / 178° vertical
• Colour support: 1.07 billion colours (10-bit)
• Contrast ratio: 1000:1 (typical)
• Backlight: LED
• Connector: eDP (Embedded DisplayPort)
• Surface: Anti-glare (matte)
• Manufacturer: CSOT (China Star Optoelectronics Technology)
• MPN: SD10Q66915

Why choose it

This panel combines high resolution, exceptional brightness, and accurate colour reproduction, making it ideal for content creators, engineers, and anyone who demands visual precision. The 600-nit luminance ensures readability even in direct sunlight or brightly lit offices, while the matte finish prevents distracting glare. As a genuine CSOT component, it meets strict quality standards, and 2-POWER's rigorous testing guarantees long-term reliability. Installation is straightforward for experienced technicians, with no need for additional adapters or firmware modifications.

Ideal use cases

• Replacing a damaged or faulty laptop display
• Upgrading a standard FHD panel to UHD for enhanced productivity
• Building or repairing custom portable workstations
• Restoring high-end ultrabooks and gaming laptops
• Professional colour-critical tasks such as photo editing and CAD

Good to know

Before ordering, verify that your laptop's original panel matches the size, resolution, connector type, and mounting holes. This panel is compatible with laptops that use a 40-pin eDP connector and support 4K UHD output. The anti-glare coating is factory-applied and should not be cleaned with harsh chemicals; use a soft, dry microfiber cloth. For best results, handle the panel by its edges and avoid touching the surface to prevent fingerprints or damage. 2-POWER provides a 12-month warranty covering manufacturing defects.
