2-Power LCD CSOT 15,6 inch UHD IPS 600nit (07X71H)

When a laptop display fails, productivity grinds to a halt—flickering pixels, dim backlight, or a cracked panel can make even basic tasks impossible. This 2-POWER 15.6-inch UHD IPS LCD screen panel, built around the CSOT 07X71H module, restores your notebook to its original visual glory. With a stunning 3840x2160 resolution and a brilliant 600-nit brightness, it delivers sharp, vibrant images even in bright environments. The IPS technology ensures wide 178° viewing angles and accurate colours, covering 100% sRGB and 90% DCI-P3, making it ideal for content creators, engineers, and anyone who demands precise visuals on the go.

Who is it for

This panel is perfect for laptop owners, repair technicians, and IT professionals looking for a reliable replacement display. Whether you're reviving a high-end ultrabook or upgrading a portable workstation, this screen offers OEM-grade quality and performance. It's also suited for DIY enthusiasts building custom portable monitors, thanks to its standard 40-pin eDP connector.

Main features

• 15.6-inch IPS panel with UHD 3840x2160 resolution for exceptional detail
• High brightness of 600 cd/m² ensures readability in direct sunlight
• Wide colour gamut: 100% sRGB and 90% DCI-P3 for true-to-life colours
• 178° horizontal and vertical viewing angles with minimal colour shift
• Anti-glare matte surface reduces reflections and eye strain
• 40-pin eDP interface for easy integration with modern laptops
• LED backlight for energy efficiency and long lifespan
• 8-bit + FRC colour depth supporting 1.07 billion colours

Specifications

• Display Type: LCD, IPS technology
• Screen Size: 15.6 inches
• Resolution: 3840 x 2160 (UHD)
• Aspect Ratio: 16:9
• Brightness: 600 cd/m² (nits)
• Refresh Rate: 60 Hz
• Colour Gamut: 100% sRGB, 90% DCI-P3 (typical)
• Viewing Angle: 178° horizontal / 178° vertical
• Contrast Ratio: 1000:1 (typical)
• Backlight Type: LED
• Surface Treatment: Anti-glare (matte)

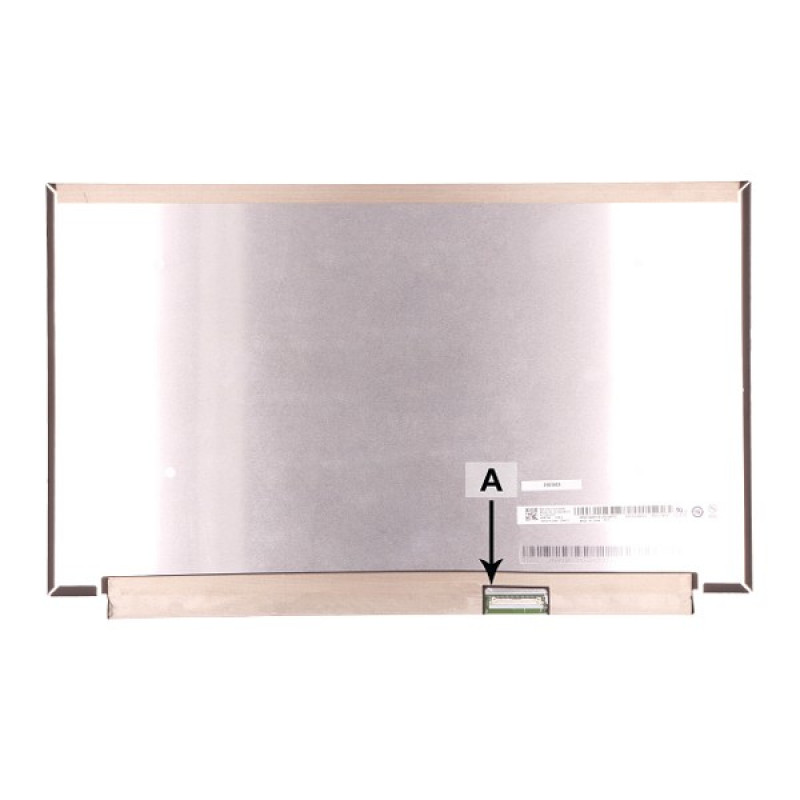

• Connector Type: 40-pin eDP (Embedded DisplayPort)
• Response Time: 30 ms (typical)
• Colour Depth: 8-bit + FRC (1.07 billion colours)
• Pixel Density: ~282 PPI
• Manufacturer: CSOT (China Star Optoelectronics Technology)
• Application: Laptop / Portable Monitor Replacement

Tips

Before ordering, verify the exact screen size, resolution, and connector position of your original panel. The 40-pin eDP connector is common but not universal; check your laptop's service manual or existing panel part number. Handle the screen by its edges to avoid pressure marks, and always disconnect the battery before installation. For best results, calibrate the display after installation to match your workflow's colour requirements.
