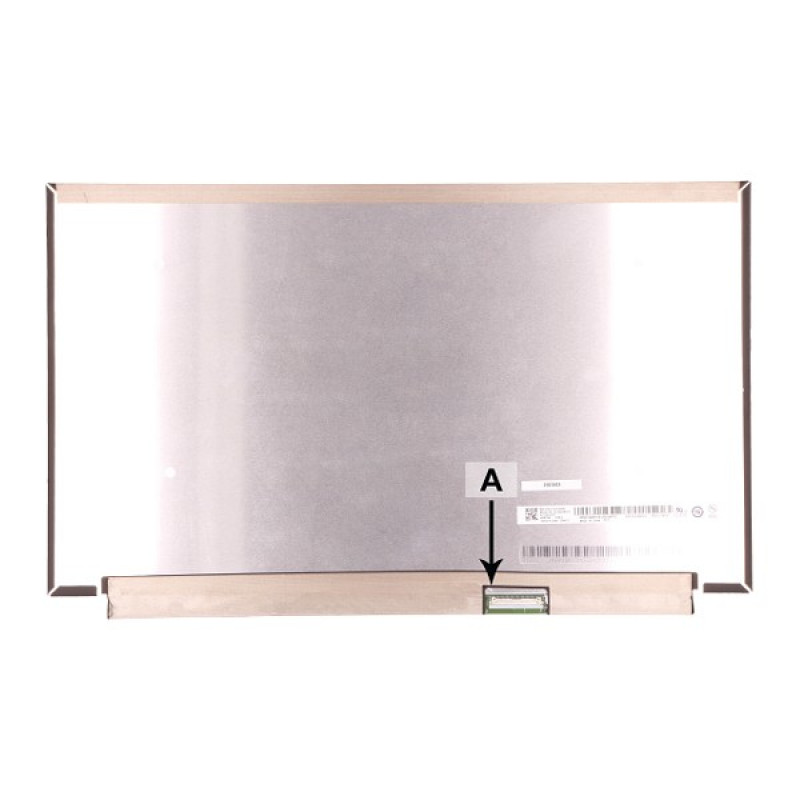

2-Power LCD CSOT 15,6 ίντσες UHD IPS 600nit (B156ZAN04.1)

The B156ZAN04.1 from 2-POWER stands apart from generic replacement screens with its exceptional 600-nit brightness and full DCI-P3 colour coverage. This 15.6-inch UHD IPS panel delivers 3840 x 2160 resolution, four times the detail of standard Full HD, making it ideal for photo editing, video production, and high-end gaming. The anti-glare surface reduces reflections, while the 1200:1 contrast ratio ensures deep blacks and vivid colours. With a 40-pin eDP connector and 3.3V input, it is a drop-in upgrade for compatible laptops.

Highlights

• 15.6-inch IPS panel with 3840 x 2160 (UHD) resolution
• 600 cd/m² brightness for excellent visibility in bright environments
• 100% DCI-P3 colour gamut for professional-grade colour accuracy
• Anti-glare coating (Haze 25%) reduces eye strain
• Wide 89° viewing angles in all directions
• eDP 4-lane interface with 40-pin connector
• Supports 1.07 billion colours (8-bit + FRC)

In daily use

This panel transforms your laptop into a mobile workstation. The high pixel density of 282 PPI ensures razor-sharp text and images, while the 60 Hz refresh rate provides smooth motion for everyday tasks. The 25 ms response time is adequate for most applications, though competitive gamers may prefer faster panels. The WLED backlight offers consistent illumination, and the 3.3V power consumption is standard for modern laptops. Installation is straightforward for technicians familiar with eDP connections.

Full specifications

• Display Size: 15.6 inches
• Resolution: 3840 x 2160 (UHD)
• Panel Type: IPS
• Brightness: 600 cd/m² (Nits)
• Refresh Rate: 60 Hz
• Aspect Ratio: 16:9
• Contrast Ratio: 1200:1 (Typ.)
• Color Gamut: 100% DCI-P3 (Typ.)
• Display Colors: 1.07 Billion (8-bit + FRC)
• Response Time: 25 ms (Typ.)
• Viewing Angle: 89/89/89/89 (L/R/U/D)
• Surface Treatment: Anti-Glare (Haze 25%)
• Backlight Type: WLED with LED Driver
• Signal Interface: eDP (4 Lanes)
• Connector Pins: 40 pins
• Input Voltage: 3.3V (Typ.)
• Pixel Density: 282 PPI
• Application: Laptop Display Panel

Final note

The 2-POWER B156ZAN04.1 is a premium replacement screen that matches or exceeds original specifications, ensuring your laptop looks as good as new.
