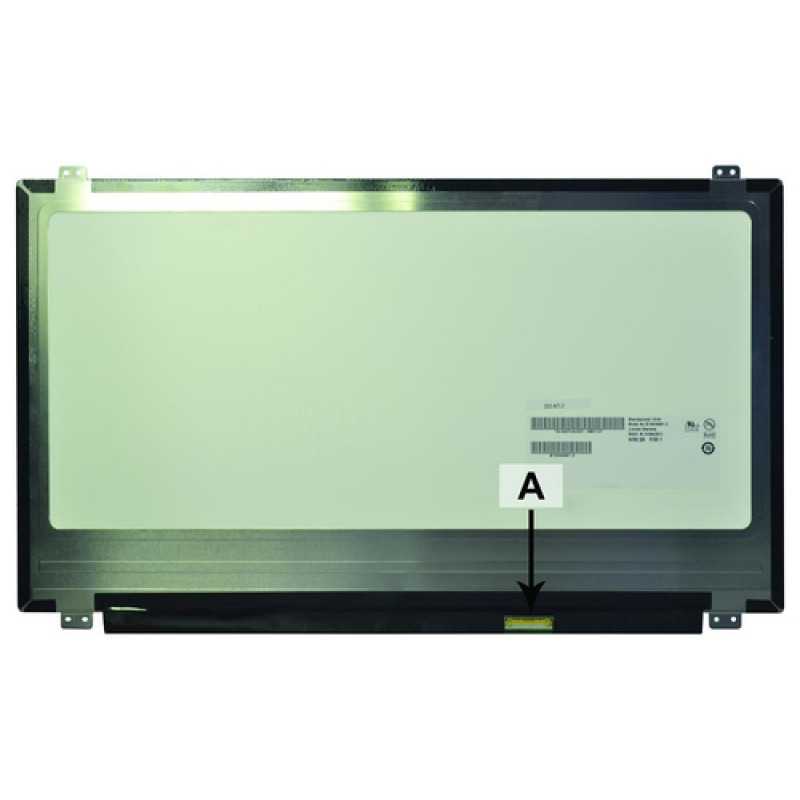

2-power 2P-SD10A09790 - 39,6 cm (15,6 inch) - Full HD

When a laptop display cracks or fades, a reliable replacement panel gets the machine back to work without the cost of a new device. The 2-POWER 2P-SD10A09790 is a 15.6-inch Full HD panel built for technicians and DIY upgraders who need a drop-in screen with a standard 30-pin eDP connector. Its IPS technology delivers consistent colour from wide angles, while the matte finish cuts reflections in bright offices or on the move.

Key specifications

• Screen size: 15.6 inches (39.6 cm)
• Resolution: 1920 x 1080 (Full HD)
• Panel type: IPS (In-Plane Switching)
• Backlight: LED
• Connector: 30-pin eDP
• Refresh rate: 60 Hz
• Brightness: 250 cd/m²
• Contrast ratio: 700:1
• Viewing angles: 85° left/right/up/down
• Colour gamut: 45% NTSC
• Response time: 25 ms (GtG)
• Surface: Matte (anti-glare)
• Touchscreen: No

Why choose it

This panel matches the specifications of many original 15.6-inch Full HD laptop screens, making it a straightforward swap for common models. The 30-pin eDP interface is widely used, and the IPS panel ensures sharp text and accurate colours for everyday productivity, streaming, and light creative work. The matte coating reduces glare, so it remains usable near windows or under harsh lighting.

Ideal use cases

• Replacing a broken or dim laptop display in a service centre
• Upgrading a TN panel to IPS for better viewing angles
• Refurbishing used laptops for resale or donation
• DIY repair projects where a standard 30-pin eDP panel is required

Good to know

This is a bare panel without a mounting bracket or bezel. Before ordering, verify that your laptop uses a 15.6-inch Full HD 30-pin eDP screen and that the connector position matches. Installation requires careful handling of the ribbon cable and may involve removing adhesive or screws. The panel is not touch-sensitive.
