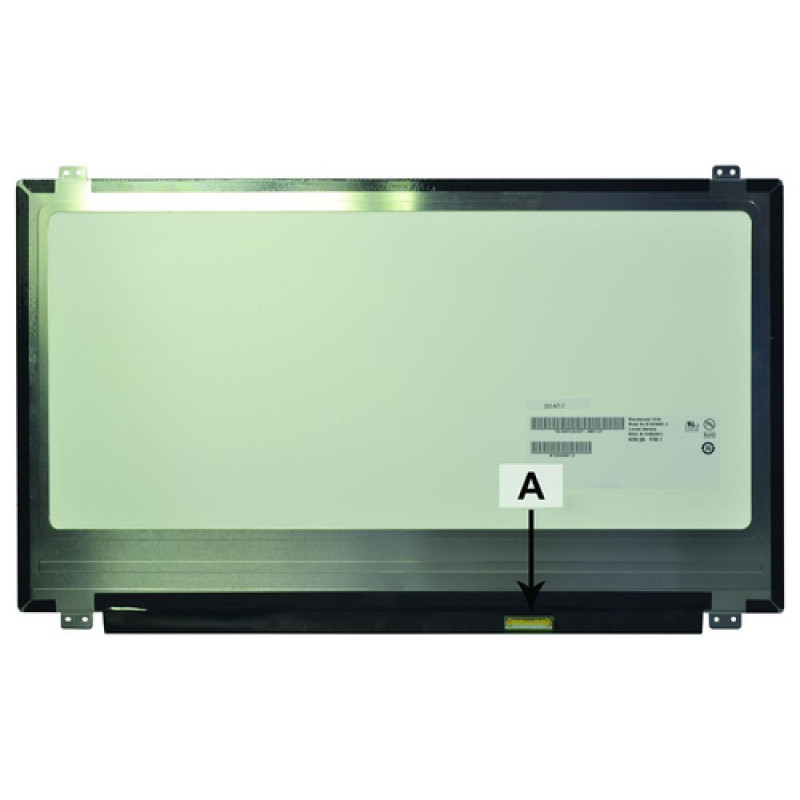

2-power 2P-NV156FHM-N42 V8.1 - 39,6 cm (15,6 inch) - Full HD

When a laptop screen cracks or its backlight fails, this 2-POWER 2P-NV156FHM-N42 V8.1 panel restores a crisp Full HD picture. Technicians and DIY upgraders rely on it as a direct replacement for the Innolux NV156FHM-N42 in many 15.6-inch notebooks. The IPS technology keeps colours accurate even at wide viewing angles, while the matte surface reduces glare in bright offices or on the go.

Key specifications

• 15.6-inch (39.6 cm) IPS display with LED backlight
• Full HD resolution: 1920 x 1080 pixels, 16:9 aspect ratio
• Brightness: 250 cd/m² typical; contrast ratio: 800:1
• Viewing angles: 85° left/right/up/down
• Colour support: 262K (6-bit), 45% NTSC colour gamut
• Response time: 25 ms typical
• Surface: Matte (haze 25%, hard coating 3H)
• Interface: 30-pin eDP (2 lanes), 60 Hz refresh rate
• Compatible with laptops using the NV156FHM-N42 panel

Why choose it

This panel matches the original Innolux specifications, ensuring a straightforward swap without driver or mounting issues. The IPS panel delivers consistent colour and clarity from any seat, and the anti-glare finish keeps reflections to a minimum. With a standard 30-pin eDP connector, it fits a wide range of popular laptop models.

Ideal use cases

• Replacing a broken or faulty 15.6-inch laptop screen
• Upgrading a laptop from a lower-resolution or TN panel
• Refurbishing used notebooks for resale or reuse
• Repairing devices in IT service centres or repair shops

Good to know

Before ordering, verify your laptop's exact panel model and connector type. The 2P-NV156FHM-N42 V8.1 is a bare panel without mounting brackets or cables; reuse the original brackets and cable from your device. Handle the panel by its edges and avoid pressure on the surface to prevent damage.
