2-power 2P-LTN156AT37-W02 - Οθόνη - 39,6 cm (15,6 ίντσες) - WXGA

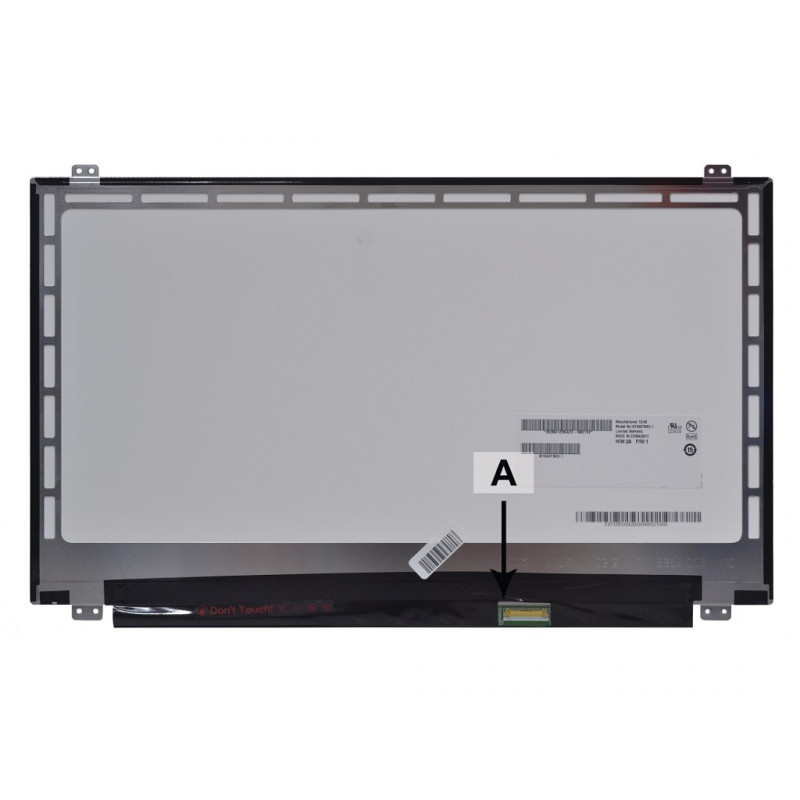

When a laptop screen cracks or dims, technicians and DIY repairers need a reliable replacement that restores clarity without breaking the bank. The 2-Power 2P-LTN156AT37-W02 delivers a 15.6-inch WXGA display with LED backlighting, offering sharp 1366x768 resolution and a glossy finish for vibrant visuals. Compatible with laptops using Samsung LTN156AT37 series panels, this screen is a practical choice for refurbishing everyday notebooks.

Key specifications

• Display size: 15.6 inches (39.6 cm)
• Resolution: WXGA (1366 x 768 pixels)
• Panel type: TN (Twisted Nematic)
• Backlight: LED, 200 cd/m² brightness
• Aspect ratio: 16:9
• Surface finish: Glossy
• Connector: 40-pin LVDS
• Refresh rate: 60 Hz
• Response time: 8 ms
• Viewing angles: 45°/45°/20°/40° (L/R/U/D)
• Colour depth: 6-bit (262,144 colours)
• Voltage: 3.3V
• Backlight lamp life: 10,000 hours typical
• Mounting: Side brackets

Why choose it

This panel matches the specifications of the original Samsung LTN156AT37-W02, ensuring a straightforward swap. The LED backlight provides consistent brightness and energy efficiency, while the glossy coating enhances contrast for media consumption. With a standard 40-pin LVDS connector and side brackets, installation is simplified for compatible models.

Ideal use cases

• Replacing a damaged or faulty laptop screen in compatible notebooks
• Upgrading from a lower-resolution panel to WXGA for better clarity
• Refurbishing business or student laptops for resale or extended use
• DIY repairs where cost-effective, reliable components are needed

Good to know

Before ordering, verify your laptop's screen size, resolution, connector type, and mounting style. The 2P-LTN156AT37-W02 is designed for models that use the Samsung LTN156AT37 series panel. Handle the screen by its edges to avoid damaging the delicate circuitry, and test before final assembly.
