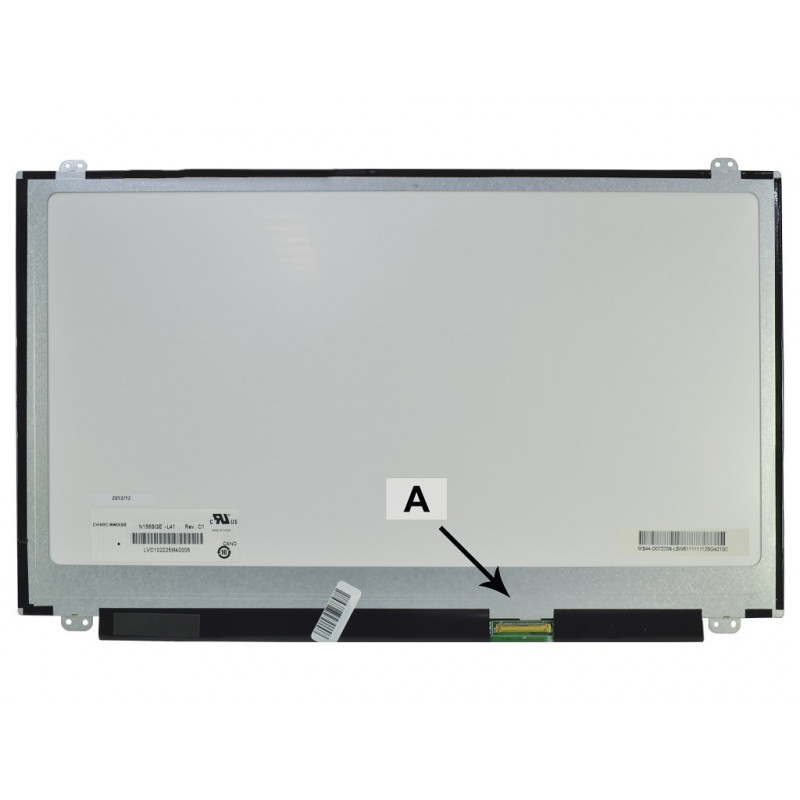

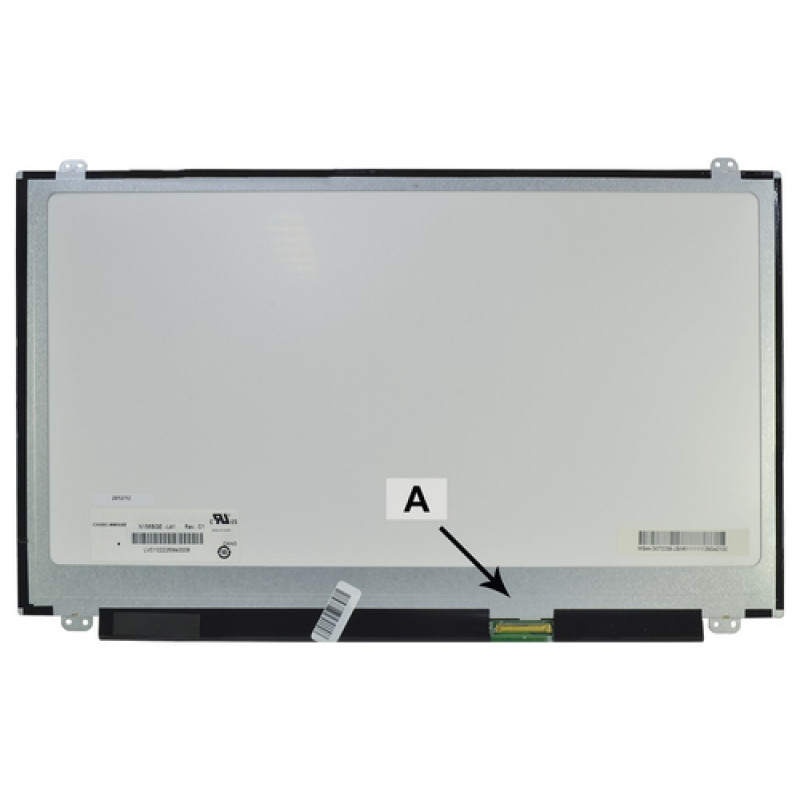

2-power 2P-LTN156AT11 - οθόνη - 39,6 cm (15,6 ίντσες) - WXGA

With a bright 220 cd/m² WLED backlight and a crisp 1366x768 WXGA resolution, this 15.6-inch display from 2-POWER delivers clear visuals for everyday computing. The 500:1 contrast ratio and 8 ms response time keep images sharp and motion smooth, while the 16:9 aspect ratio provides a widescreen view for documents, web browsing, and media.

Overview

The 2-POWER 2P-LTN156AT11 is a high-quality replacement LCD screen designed for laptops that use a 15.6-inch WXGA panel. It features an a-Si TFT-LCD panel type with a 6-bit color depth, producing up to 262K colors for accurate and vibrant images. The screen has a glossy finish with a hard coating (3H) for durability and a clear viewing experience. It connects via a standard 40-pin LVDS interface, making it compatible with a wide range of laptop models, including those that originally used Samsung LTN156AT11 panels.

What stands out

• Bright 220 cd/m² WLED backlight for clear visibility in various lighting conditions.
• WXGA resolution (1366x768) with 16:9 aspect ratio for widescreen productivity.
• Fast 8 ms response time reduces ghosting and blur in moving images.
• Glossy surface with anti-scratch hard coating (3H) for long-lasting clarity.
• Standard 40-pin LVDS connector, bottom-right orientation, for easy installation.
• Wide compatibility: drop-in replacement for Samsung LTN156AT11 and similar panels.

Technical details

• Display Size: 15.6 inches (39.6 cm diagonal)
• Resolution: 1366 x 768 (WXGA)
• Aspect Ratio: 16:9
• Panel Type: a-Si TFT-LCD
• Backlight: WLED (White LED)
• Brightness: 220 cd/m² (typical)
• Contrast Ratio: 500:1 (typical)
• Response Time: 8 ms (typical)
• Viewing Angles: 45/45/20/40 degrees (L/R/U/D)
• Color Depth: 6-bit (262K colors)
• Surface: Glare (Glossy), Hard coating (3H)
• Signal Interface: LVDS (1 channel, 6-bit)
• Connector: 40-pin LVDS, bottom-right (viewed from back)
• Refresh Rate: 60 Hz
• Supply Voltage: 3.3V (typical)
• Condition: New

Our verdict

For a reliable and affordable laptop screen replacement, the 2-POWER 2P-LTN156AT11 offers excellent value. Its standard LVDS interface and compatibility with common Samsung panels make it a straightforward upgrade or repair, while the bright WLED backlight and glossy finish ensure a pleasant viewing experience.
