2-power 2P-LTN156AT06-A01 - Οθόνη - 39,6 cm (15,6 inch) - WXGA

When a laptop screen cracks or fades, a technician reaches for a reliable replacement panel to restore the display to factory clarity. The 2-POWER 2P-LTN156AT06-A01 is a new 15.6-inch WXGA LED panel built for that exact job — a direct-fit LCD for compatible notebooks using the Samsung LTN156AT06 panel type. With a 1366 x 768 resolution and a glossy finish, it delivers sharp text and vivid colors for everyday computing, whether in a repair shop or a home office.

Key specifications

• Panel size: 15.6 inches (39.6 cm) diagonal
• Native resolution: WXGA (1366 x 768), 16:9 aspect ratio
• Panel technology: TN (Twisted Nematic), TFT active matrix
• Backlight: LED, brightness 200 cd/m² typical
• Contrast ratio: 500:1 typical
• Response time: 8 ms typical
• Viewing angles: 45°/45° horizontal, 20°/40° vertical
• Color gamut: 45% NTSC
• Surface finish: Glossy

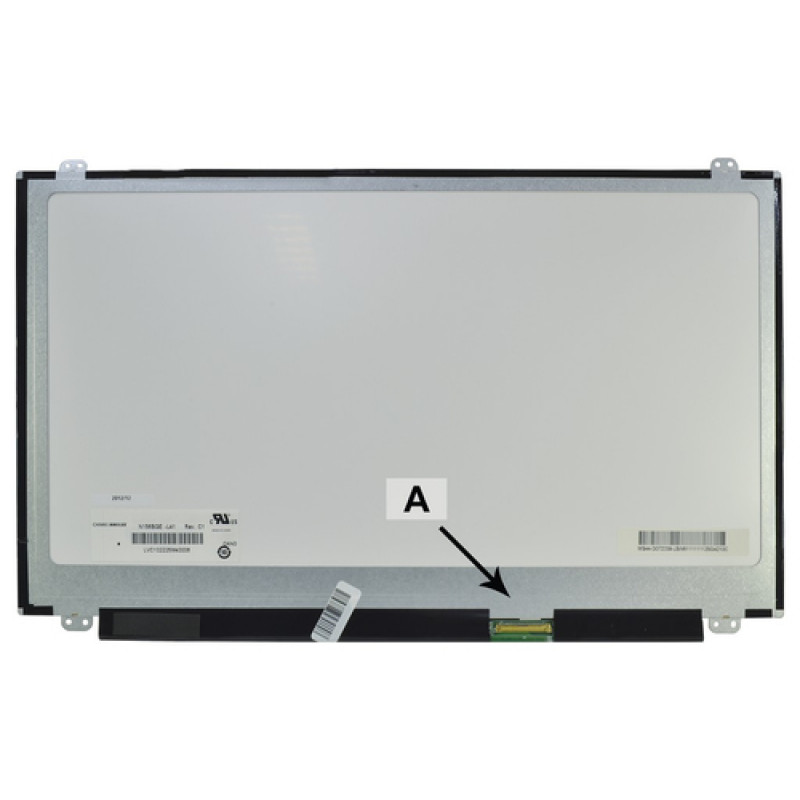

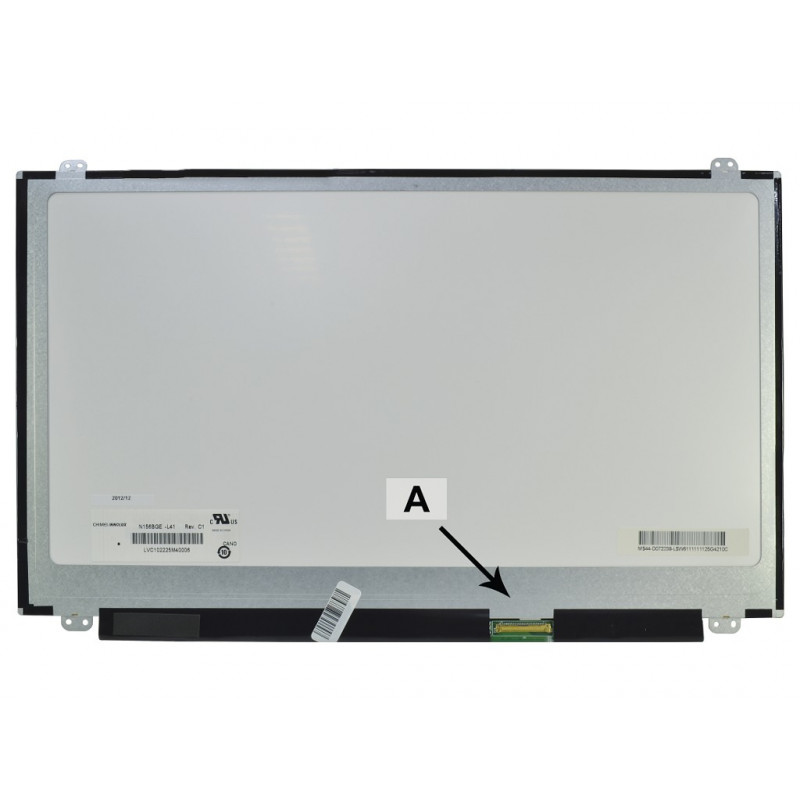

• Connector: 40-pin LVDS, bottom left (viewed from back)
• Refresh rate: 60 Hz
• Condition: New

Why choose it

This panel matches the original Samsung LTN156AT06 specifications, ensuring compatibility and consistent image quality. The LED backlight offers energy efficiency and long life, while the glossy coating enhances perceived contrast for media and web browsing. It is a dependable choice for laptop refurbishers and IT service providers who need a drop-in replacement without guesswork.

Ideal use cases

• Replacing a damaged or faulty 15.6" WXGA laptop screen
• Upgrading a compatible notebook to a new panel
• Stocking repair inventory for common 15.6-inch laptops
• DIY laptop screen repair projects

Good to know

Installation requires careful handling of the LVDS connector and bezel removal. The panel is new and tested, but always verify the exact connector position and mounting holes against your original screen before ordering. No cables or brackets are included unless specified.
