2-power 2P-LP156WHB-TL-D1 - 39,6 cm (15,6) - WXGA

A cracked or dim laptop display can render your device unusable, but replacing the screen is a cost-effective way to restore full functionality. The 2-POWER 2P-LP156WHB-TL-D1 is a 15.6-inch WXGA LED panel that brings back crisp visuals and vibrant colours to compatible laptops. This new replacement screen matches the original specifications, ensuring a seamless fit and reliable performance.

Who is it for

This panel is ideal for technicians, IT professionals, and DIY users who need to replace a faulty 15.6-inch laptop screen. It suits a wide range of laptops that use a 40-pin LVDS connector and require a 1366x768 resolution TN panel with a glossy finish.

Main features

• 15.6-inch diagonal size with 1366x768 (WXGA) resolution for clear, detailed images.
• LED backlighting provides bright, uniform illumination and energy efficiency.
• Glossy surface enhances colour saturation and contrast for multimedia use.
• TN panel technology offers fast response times, suitable for everyday computing.

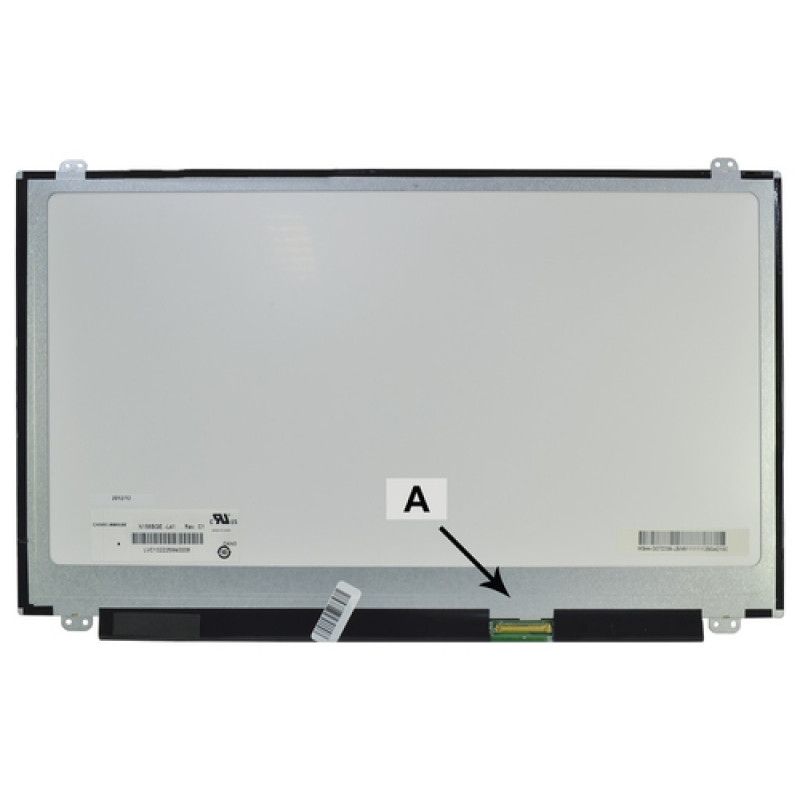

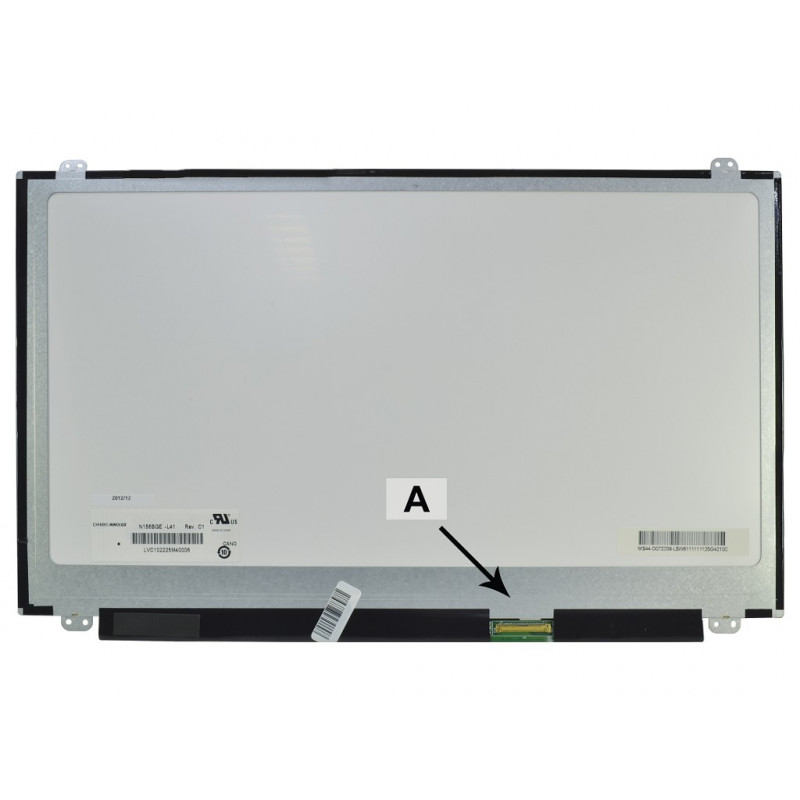

• 40-pin LVDS connector located at the left bottom for easy installation.
• Side brackets included for secure mounting in compatible laptop chassis.

Specifications

• Screen Size: 15.6 inches (39.6 cm)
• Resolution: 1366 x 768 (WXGA)
• Aspect Ratio: 16:9
• Backlight Type: LED
• Surface Type: Glossy
• Connector Type: 40-pin LVDS (Left Bottom)
• Refresh Rate: 60 Hz
• Panel Type: TN (Twisted Nematic)
• Brightness: 220 cd/m² (Typical)
• Response Time: 8 ms (Typical)
• Viewing Angle (H/V): 45°/45°/20°/40° (L/R/U/D)
• Display Technology: TFT Active Matrix
• Color Gamut: 45% NTSC (Typical)
• Pixel Density: ~100 PPI
• Mounting Type: Side Brackets
• Condition: New

Tips

Before ordering, verify your laptop's screen size, resolution, connector type, and mounting style to ensure compatibility. Handle the panel by its edges and avoid touching the surface to prevent damage. Test the screen before final assembly to confirm proper function.
