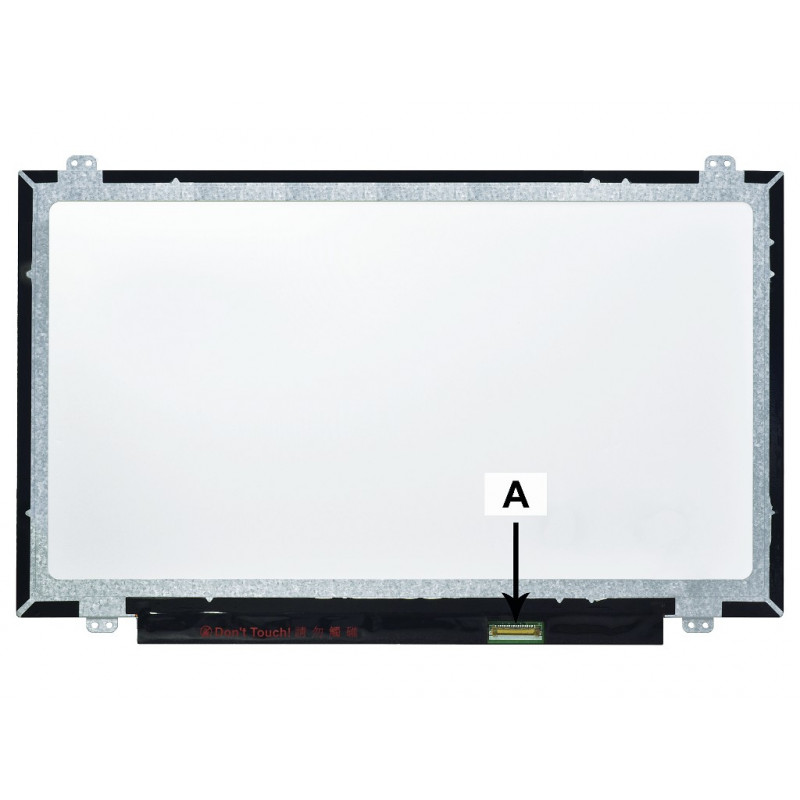

2-power 2P-G140XTN01.0 - 35,6 cm (14 inch) - WXGA

This 14-inch WXGA LED-backlit TN panel delivers crisp, clear visuals for everyday computing. With a 1366x768 resolution and a matte anti-glare finish, it reduces reflections and ensures comfortable viewing in various lighting conditions. The 30-pin eDP connector provides a reliable interface for compatible laptops.

Advantages

The LED backlight offers energy efficiency and a long lifespan, while the TN technology provides fast response times ideal for general use. The matte surface minimizes glare, reducing eye strain during extended work sessions. The panel's compact form factor and standard mounting brackets allow for straightforward installation.

Suitable for

• Business laptops and notebooks requiring a 14-inch display
• Users seeking a cost-effective replacement screen
• Applications where anti-glare properties are essential
• Systems compatible with 30-pin eDP connections

Key specifications

• Screen size: 14.0 inches (35.6 cm)
• Resolution: 1366 x 768 (WXGA)
• Panel type: TN, Active Matrix TFT LCD
• Backlight: LED
• Connector: 30-pin eDP
• Surface: Matte (anti-glare)
• Brightness: 200 cd/m²
• Contrast ratio: 400:1
• Viewing angles: 45/45/20/40 (L/R/U/D)
• Response time: 8 ms
• Color gamut: 45% NTSC
• Refresh rate: 60 Hz
• Mounting: Top and bottom brackets

Recommendations

Before ordering, verify your laptop's screen size, resolution, connector type, and mounting position. This panel is compatible with AU Optronics G140XTN01.0 and equivalent models. Professional installation is recommended to avoid damage.
