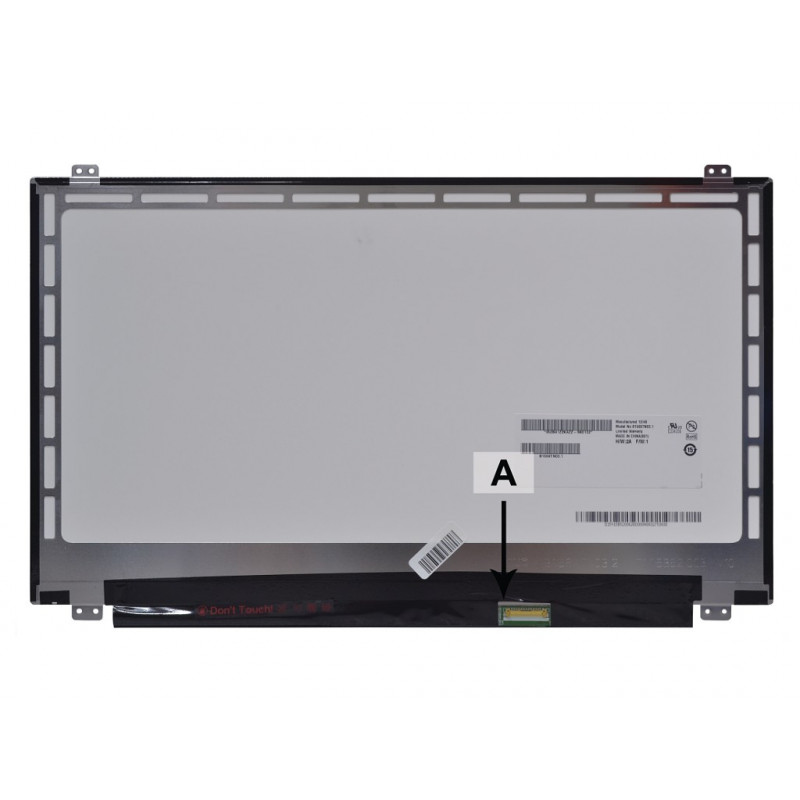

2-power 2P-B156XTN07.1 - 39,6 cm (15,6 inch) - WXGA

Replace a cracked or dim laptop display with this 2-POWER 2P-B156XTN07.1 panel, a direct-fit 15.6-inch WXGA screen for everyday notebooks. Technicians and home users can restore a laptop to full clarity in under an hour, thanks to the standard 40-pin LVDS connector and LED backlight that drops into most 15.6" chassis without modification.

Key specifications

• Screen size: 15.6 inches (39.6 cm)
• Resolution: 1366 x 768 (WXGA)
• Panel type: TN, glossy finish
• Backlight: LED
• Connector: 40-pin LVDS
• Refresh rate: 60 Hz
• Brightness: 200 cd/m²
• Contrast ratio: 500:1
• Response time: 8 ms
• Viewing angles: 45/45/20/40 degrees
• Colour support: 262K (6-bit)
• Colour gamut: 45% NTSC
• Condition: New
• Original panel manufacturer: AU Optronics

Why choose it

This panel uses the same AUO B156XTN07.1 specification found in many popular laptops, so you get factory-level colour and brightness without paying OEM prices. The glossy TN surface delivers punchy contrast for indoor use, and the LED backlight runs cooler and lasts longer than older CCFL screens.

Ideal use cases

• Replacing a broken or scratched laptop screen
• Upgrading a dim or yellowed display
• Refurbishing used notebooks for resale
• Building a portable monitor with a compatible controller board

Good to know

Before ordering, verify your laptop's original panel model and connector position. This screen does not include mounting brackets, cables, or a touchscreen digitizer. Handle the panel by its edges and avoid flexing the PCB to prevent damage.
