2-power 2P-B156XTN04 V.2 - Οθόνη - 39,6 cm (15,6 inch) - WXGA

This 15.6-inch laptop display panel delivers crisp WXGA resolution with LED backlighting, making it an ideal replacement for compatible notebooks. Its 30-pin eDP connector ensures a straightforward upgrade or repair, while the matte TN surface reduces glare for comfortable viewing in various lighting conditions.

Advantages

The panel's 1366 x 768 resolution provides sharp text and clear images for everyday computing. LED backlighting offers energy efficiency and consistent brightness up to 220 nits. The anti-glare finish minimizes reflections, reducing eye strain during extended use. The 30-pin eDP interface supports modern laptops, ensuring compatibility with a wide range of systems.

Suitable for

• Replacing a damaged or faulty 15.6-inch WXGA display panel
• Upgrading an older laptop to a brighter, more efficient LED screen
• DIY laptop repairs and refurbishment projects
• System integrators building custom portable devices

Key specifications

• Screen size: 15.6 inches (39.6 cm)
• Resolution: 1366 x 768 (WXGA)
• Panel type: TN (Twisted Nematic)
• Backlight: LED
• Surface: Matte (anti-glare)

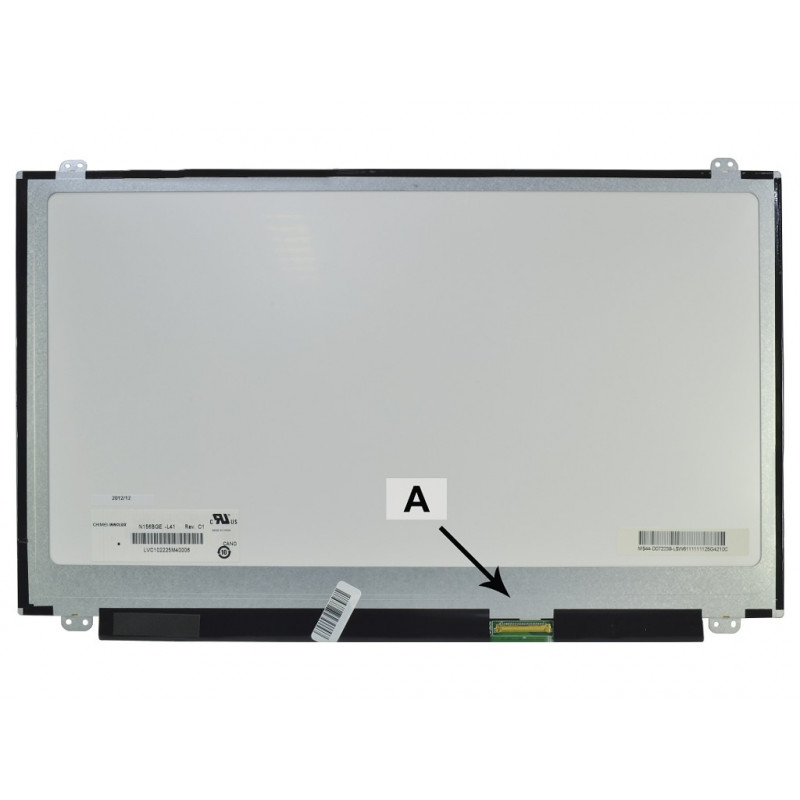

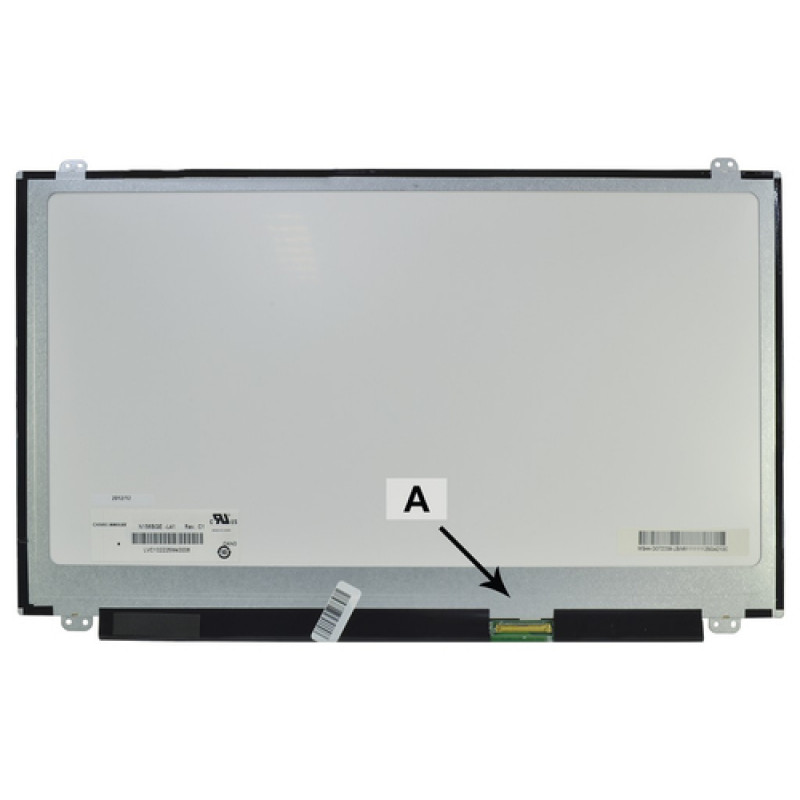

• Connector: 30-pin eDP (bottom right)
• Refresh rate: 60 Hz
• Brightness: 220 cd/m²
• Response time: 8 ms
• Color gamut: 45% NTSC
• Viewing angles: 45/45/20/45 (H/V)
• Touchscreen: No

Recommendations

Before ordering, verify that your laptop requires a 15.6-inch WXGA LED panel with a 30-pin eDP connector and that the mounting brackets and cable position match. This panel is not compatible with 40-pin LVDS or touchscreen models.
