2-power 2P-B140HTN02.0 HW1A - 35,6 cm (14 inch)

Unlike generic replacement panels that force compromises in fit or image quality, the 2-POWER 2P-B140HTN02.0 HW1A brings a factory-grade 14.0-inch HD display to your laptop. Built around a TN LED panel with a matte anti-glare finish, it delivers crisp 1366 x 768 resolution, a 16:9 aspect ratio, and a 60 Hz refresh rate for smooth everyday computing. The 30-pin eDP connector is positioned bottom-right (viewed from the back) for straightforward installation in compatible notebooks.

Highlights

• 14.0-inch (35.6 cm) TN LED panel with HD resolution (1366 x 768)
• Matte anti-glare surface reduces reflections in bright environments

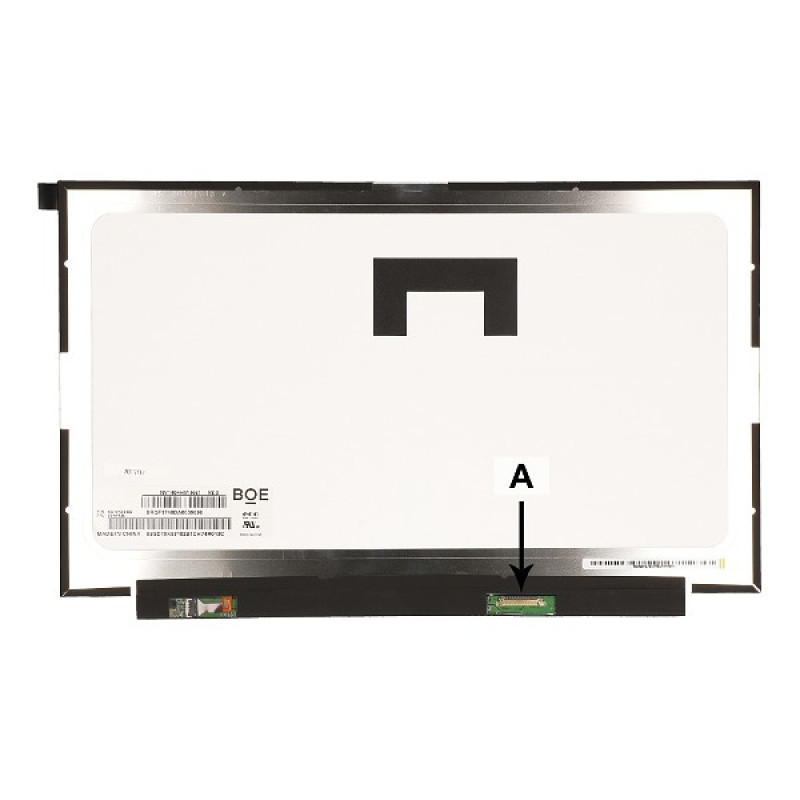

• 30-pin eDP connector, bottom-right orientation for easy replacement
• 200 cd/m² typical brightness and 45% NTSC colour gamut for clear visuals
• 60 Hz refresh rate for fluid video and smooth cursor movement
• Hardware version HW1A, part number 2P-B140HTN02.0 for exact compatibility

In daily use

Whether you are refurbishing a business laptop, upgrading a student notebook, or repairing a damaged screen, this panel restores your device to like-new clarity. The matte finish keeps glare at bay under office lights or near windows, while the TN technology offers fast response times that suit productivity tasks, web browsing, and video conferencing. The eDP interface ensures a direct digital connection without signal conversion loss.

Full specifications

• Screen size: 14.0 inches (35.6 cm diagonal)
• Resolution: 1366 x 768 (HD)
• Panel type: TN (Twisted Nematic)
• Backlight: LED
• Aspect ratio: 16:9
• Surface finish: Matte (anti-glare)
• Connector type: eDP (Embedded DisplayPort)
• Connector pins: 30-pin
• Connector position: Bottom right (viewed from back)
• Refresh rate: 60 Hz
• Brightness: 200 cd/m² (typical)
• Colour gamut: 45% NTSC (CIE1931)
• Viewing angles: typical TN (45/45/20/40 degrees H/V)
• Condition: New
• Product type: Laptop display panel
• Compatibility: Universal 14.0" HD eDP 30-pin replacement (verify with original panel specifications)

Final note

Trust 2-POWER for reliable, high-quality replacement screens. The 2P-B140HTN02.0 HW1A is a direct-fit solution that meets original specifications, ensuring your laptop looks and performs its best.
