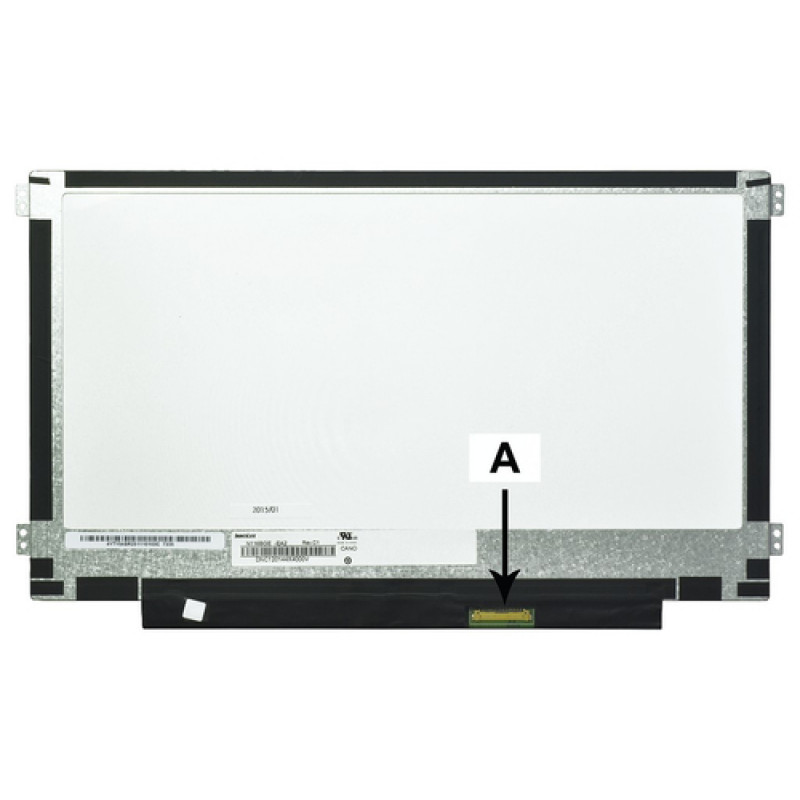

2-power 2P-B116XTN02.3 - Οθόνη - 29,5 cm (11.6) - WXGA

A cracked or dim laptop screen turns every task into a struggle—squinting at lines, colors washed out, work slowed to a crawl. The 2-POWER 2P-B116XTN02.3 display panel restores crisp, bright visuals to compatible notebooks, making it a practical repair solution for technicians and DIY upgraders. This 11.6-inch WXGA panel delivers 1366 x 768 resolution with a 16:9 aspect ratio, ideal for everyday computing, web browsing, and office applications.

Who is it for

This screen is built for laptop repair professionals, IT departments, and home users who need a reliable replacement for a faulty AUO B116XTN02.3 panel. It fits a wide range of 11.6-inch notebooks that use a 40-pin LVDS connection and bottom-right connector orientation.

Main features

• 11.6-inch a-Si TFT-LCD panel with WXGA (1366 x 768) resolution
• Glossy surface for vibrant color and sharp text
• TN technology with 200 cd/m² brightness and 400:1 contrast ratio
• 60 Hz refresh rate and 8 ms response time for smooth motion
• WLED backlight for energy efficiency and consistent illumination
• 40-pin LVDS connector positioned bottom-right (viewed from back)
• 45% NTSC color gamut for accurate color reproduction
• No touchscreen – standard non-touch panel

Specifications

• Screen Size: 11.6 inch
• Resolution: WXGA (1366 x 768)
• Aspect Ratio: 16:9
• Display Technology: a-Si TFT-LCD
• Panel Type: TN
• Backlight Type: WLED
• Surface Type: Glossy (Glare)
• Connector Type: 40-pin LVDS
• Connector Position: Bottom Right (viewed from back)
• Refresh Rate: 60 Hz
• Brightness: 200 cd/m²
• Contrast Ratio: 400:1
• Response Time: 8 ms
• Color Gamut: 45% NTSC
• Touchscreen: No
• Compatible Panel: AUO B116XTN02.3

Tips

Before ordering, verify your original screen's model number and connector position. Handle the panel by its edges and use an anti-static workspace. A plastic spudger helps release the bezel without damage. Test the new panel before final assembly to ensure proper function.
