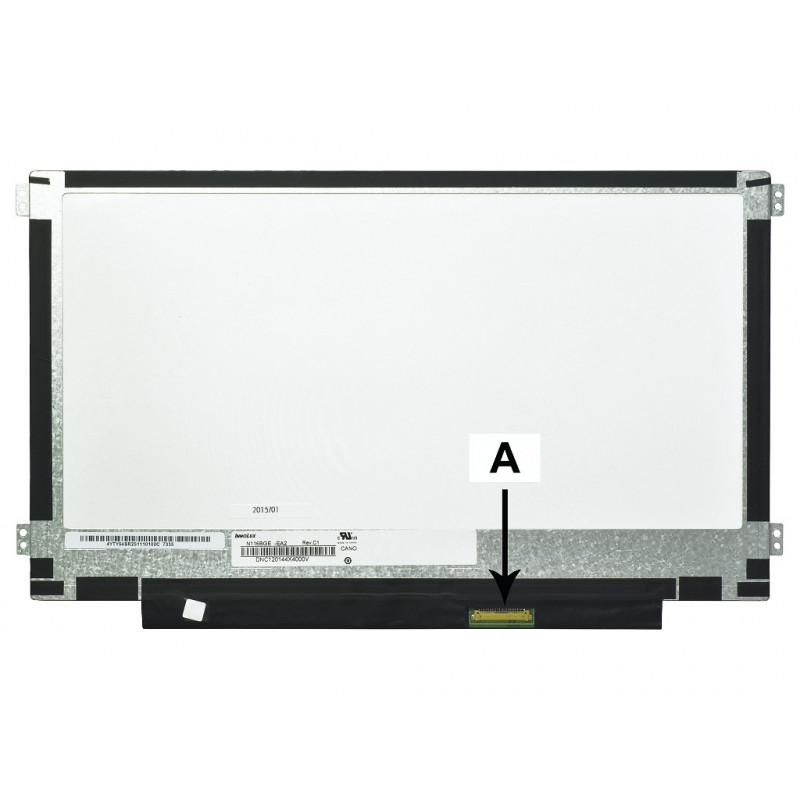

2-power 2P-5D10Y97328 - 29,5 cm (11,6 inch) - WXGA

Experience crisp visuals with a 1366x768 WXGA resolution on this 11.6-inch LED-backlit LCD panel, delivering 220 nits of brightness and a 60Hz refresh rate for smooth everyday computing. The glossy finish enhances color vibrancy, while the 30-pin eDP connector ensures a secure, high-speed signal to your device.

Overview

Designed as a direct replacement for laptops and devices requiring an 11.6-inch WXGA display with a 30-pin eDP interface, this panel combines TN technology with a 16:9 aspect ratio, making it ideal for productivity, web browsing, and multimedia. With a response time of 8ms and a pixel density of approximately 135 PPI, text appears sharp and motion is fluid. The panel supports 6-bit color depth, providing 262K colors for accurate image reproduction.

What stands out

• WXGA (1366x768) resolution for clear, detailed images
• LED backlighting for energy efficiency and consistent brightness
• Glossy surface finish for vibrant colors and deep contrast
• 30-pin eDP connector for modern, high-speed data transfer
• Wide compatibility with many 11.6-inch laptops

Technical details

• Screen size: 11.6 inches (29.5 cm diagonal)
• Resolution: 1366 x 768 pixels (WXGA)
• Display technology: TN (Twisted Nematic) LCD with LED backlight
• Aspect ratio: 16:9
• Refresh rate: 60 Hz
• Response time: 8 ms (typical)
• Brightness: 220 cd/m² (nits)
• Viewing angles: 45° left/right, 20° up, 45° down
• Color depth: 6-bit (262K colors)
• Surface finish: Glossy
• Connector: 30-pin eDP
• Touchscreen: No
• Condition: New

Our verdict

A reliable and affordable replacement screen that restores your laptop's display to like-new performance. With its standard WXGA resolution and eDP interface, it's a straightforward drop-in solution for compatible devices.
