2-power 15.6 1920x1080 FHD LED TN ματ (2P-NT156FHM-N62)

This 15.6-inch replacement laptop display panel delivers crisp Full HD resolution in a slim TN form factor with a matte anti-glare finish. The 1920x1080 pixel matrix renders sharp text and detailed visuals, while the LED backlight provides consistent brightness at 220 cd/m². A 30-pin eDP connector on the bottom right ensures straightforward integration with compatible notebooks, and the 60 Hz refresh rate keeps motion smooth for everyday productivity, web browsing, and video playback. With a 500:1 contrast ratio and 45% NTSC colour coverage, the screen reproduces clear, natural colours for office tasks and multimedia. The matte surface reduces reflections and fingerprints, making it ideal for use in bright or varied lighting conditions. The panel is a bare LCD without mounting brackets, designed for direct replacement in laptops that accept a 15.6-inch FHD 30-pin eDP TN matte display. Its active matrix TFT technology and 8 ms response time ensure responsive performance, while the low typical power consumption of approximately 4.5 W helps preserve battery life. Whether you are refurbishing a laptop, repairing a broken screen, or upgrading an older panel, this display offers a reliable, cost-effective solution with universal compatibility for many 15.6-inch notebooks.

Advantages

Full HD 1920x1080 resolution for sharp, detailed images. Matte anti-glare coating minimises reflections and improves visibility in bright environments. LED backlight delivers energy-efficient brightness at 220 nits. 30-pin eDP connector matches a wide range of laptop models. Slim TN panel with 8 ms response time for smooth video and everyday use. Low power draw of about 4.5 W extends battery runtime. Bare panel design allows easy installation without unnecessary brackets.

Suitable for

• Laptop screen replacement and repair projects
• Upgrading older 15.6-inch notebooks to Full HD resolution
• DIY enthusiasts and professional repair technicians
• Office work, web browsing, and multimedia consumption
• Environments with bright or variable lighting where glare is a concern

Key specifications

• Screen size: 15.6 inches
• Resolution: 1920 x 1080 pixels (Full HD)
• Panel type: TN (Twisted Nematic)
• Backlight: LED
• Surface: Matte (anti-glare)
• Aspect ratio: 16:9
• Refresh rate: 60 Hz

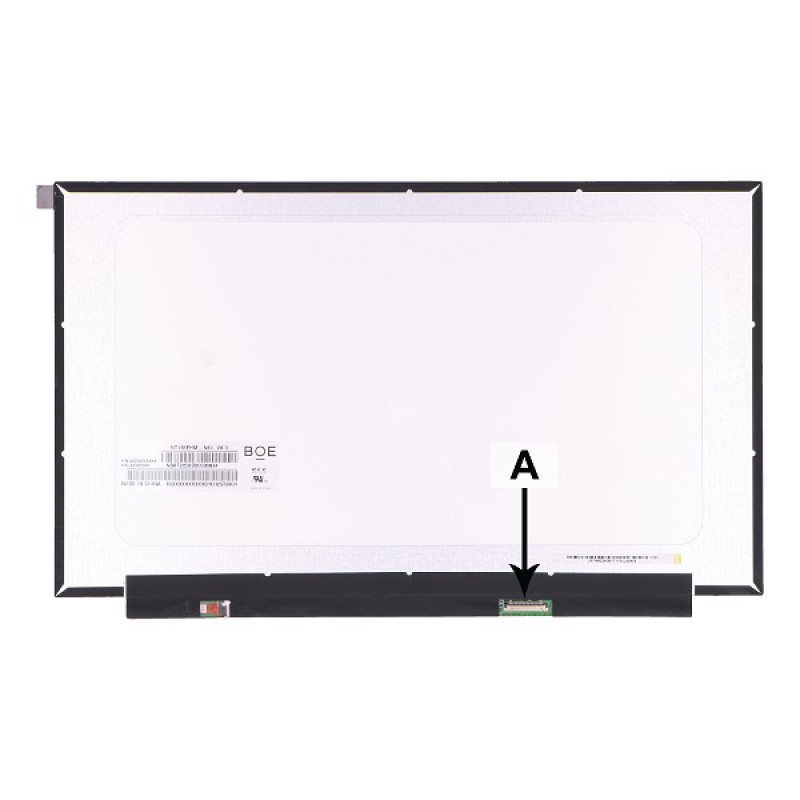

• Connector: 30-pin eDP (bottom right)
• Brightness: 220 cd/m²
• Contrast ratio: 500:1
• Viewing angles: 45/45/20/40 degrees (L/R/U/D)
• Response time: 8 ms (gray-to-gray)
• Colour gamut: 45% NTSC
• Pixel density: ~141 PPI
• Power consumption: ~4.5 W typical
• Mounting: bare panel (no brackets)

Recommendations

Verify that your laptop requires a 15.6-inch FHD 30-pin eDP TN matte panel before ordering. Handle the bare panel carefully during installation to avoid damage. Pair with an anti-static workspace and appropriate tools for a successful replacement.
