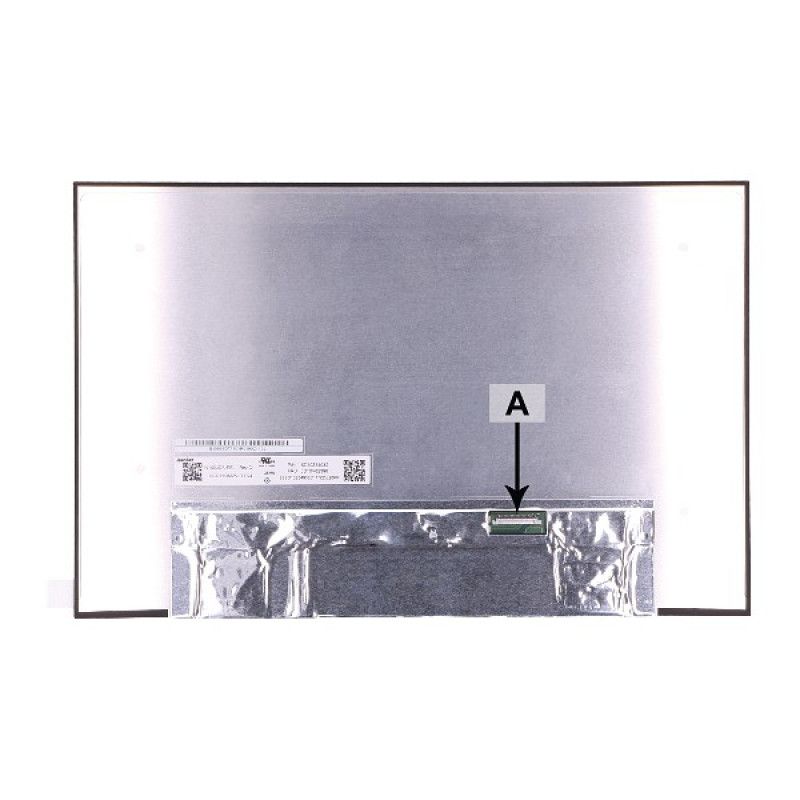

2-power 14,0 inch WUXGA 1920x1200 5MM EDP IPS (2P-NV140WUM-N42 V8.0)

Experience stunning clarity with a 1920x1200 WUXGA resolution on a 14.0-inch IPS panel, delivering sharp visuals and vibrant colors for immersive productivity and entertainment.

Overview

Upgrade your laptop display with the 2-Power 2P-NV140WUM-N42 V8.0, a high-performance 14.0-inch WUXGA panel engineered for crisp, detailed images. Featuring an IPS (In-Plane Switching) panel with LED backlighting, this display offers wide 89-degree viewing angles in all directions, ensuring consistent color and contrast from any position. The 16:10 aspect ratio provides extra vertical space, ideal for documents, web browsing, and creative work. With a slim 5mm profile and a 30-pin eDP connector, it integrates seamlessly into compatible laptops. The anti-glare (matte) surface reduces reflections, making it perfect for bright environments. Enjoy smooth visuals with a 60Hz refresh rate and a quick 30ms response time. With a brightness of 300 nits and a contrast ratio of 800:1, images pop with depth and clarity. Power consumption is a low 3.5W typical, contributing to longer battery life. This panel is a universal replacement for laptops requiring a 14.0" WUXGA eDP IPS display.

What stands out

• High-resolution 1920x1200 WUXGA for sharp, detailed images
• IPS technology with wide 89° viewing angles
• Anti-glare coating for comfortable viewing in any lighting
• Ultra-slim 5mm design for modern thin laptops
• Low power consumption at 3.5W typical
• Standard 30-pin eDP interface for easy installation

Technical details

• Display Size: 14.0 inches
• Resolution: 1920 x 1200 pixels
• Aspect Ratio: 16:10
• Panel Technology: IPS
• Backlight Type: LED
• Interface Type: eDP (Embedded DisplayPort)
• Panel Thickness: 5 mm
• Surface Finish: Anti-Glare (Matte)
• Refresh Rate: 60 Hz
• Brightness: 300 cd/m² (nits)
• Color Gamut: 45% NTSC
• Viewing Angle: 89/89/89/89 (L/R/U/D)
• Connector Type: 30-Pin eDP
• Response Time: 30 ms (Gray-to-Gray)
• Contrast Ratio: 800:1
• Touchscreen Support: No
• Power Consumption: 3.5 W (Typical)
• Compatibility: Universal for laptops requiring 14.0" WUXGA eDP IPS panels

Our verdict

The 2-Power 2P-NV140WUM-N42 V8.0 is an excellent choice for users seeking a high-quality display upgrade. Its WUXGA resolution and IPS panel deliver superior image quality, while the slim design and low power draw make it a practical replacement for modern laptops.
