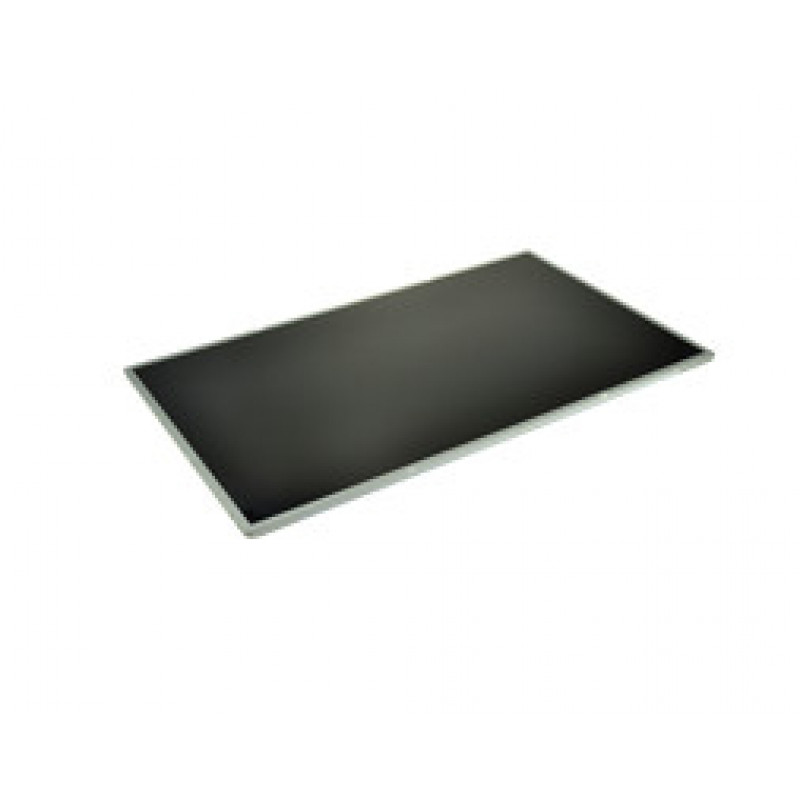

2-power 13,3 inch WUXGA AG IPS LENOVO (B133UAN01.2 0A)

Upgrade your Lenovo laptop with a genuine AU Optronics B133UAN01.2 panel, delivering crisp WUXGA 1920x1200 resolution on a 13.3-inch anti-glare IPS screen. The 16:10 aspect ratio provides extra vertical space for documents and web browsing, while the matte finish reduces reflections in bright environments. With 300 cd/m² brightness and 1000:1 contrast, images appear vivid and text remains sharp. The 72% NTSC colour gamut ensures accurate colours for photo editing and media consumption. Wide 85/85/85/85 viewing angles maintain consistency from any position. The 30-pin eDP connector enables straightforward installation in compatible Lenovo models.

Advantages

This panel combines a high-resolution IPS display with an anti-glare coating, offering both visual clarity and eye comfort. The LED backlight provides uniform illumination and energy efficiency. The 60Hz refresh rate and 30ms response time are suitable for everyday productivity and multimedia. As a new, original AUO panel, it ensures long-term reliability and perfect compatibility with Lenovo systems.

Suitable for

• Lenovo laptops requiring a 13.3-inch WUXGA eDP 30-pin display
• Users needing a matte screen for outdoor or brightly lit workspaces
• Professionals who benefit from the 16:10 aspect ratio for spreadsheets and coding
• Replacement or upgrade of a damaged or lower-resolution panel

Key specifications

• Screen Size: 13.3 inches
• Resolution: 1920 x 1200 (WUXGA)
• Aspect Ratio: 16:10
• Panel Type: IPS
• Surface Finish: Anti-Glare (Matte)
• Backlight Type: WLED (LED)
• Brightness: 300 cd/m² (Typical)
• Contrast Ratio: 1000:1 (Typical)
• Color Gamut: 72% NTSC (Typical)
• Viewing Angle: 85/85/85/85 (Typ.)(CR≥10)
• Refresh Rate: 60Hz
• Response Time: 30 ms (Typ.)(Tr+Td)
• Data Connector: eDP 30 Pin
• Panel Manufacturer: AU Optronics (AUO)
• Panel Model Number: B133UAN01.2
• Condition: New

Recommendations

For a flawless replacement, verify your laptop's original panel connector and mounting brackets match the 30-pin eDP interface. Professional installation is recommended to avoid damage to the display or laptop chassis.
