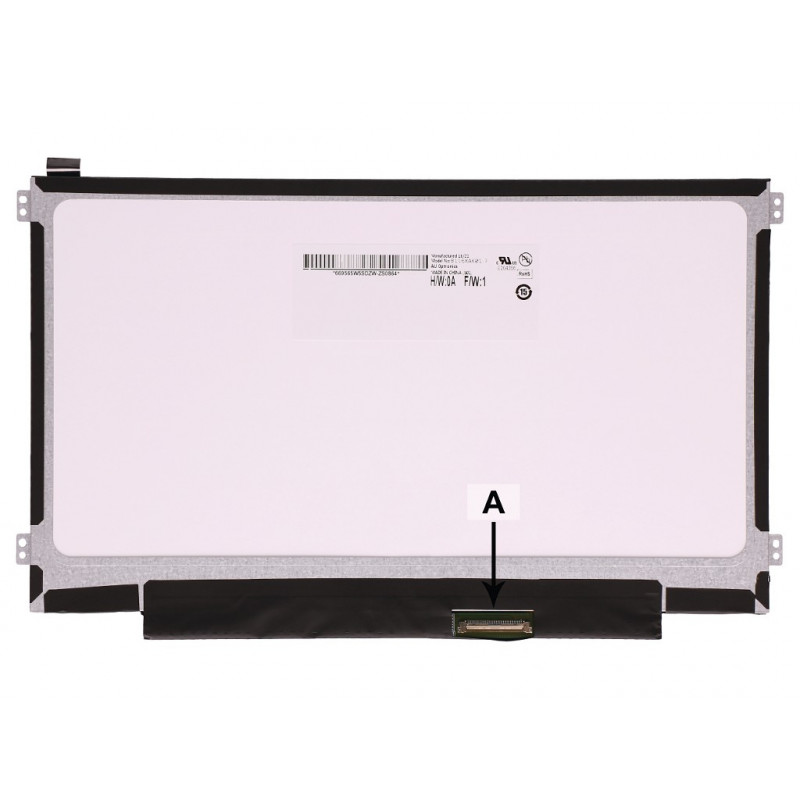

2-power 11.6 1366x768 LED OnCell T/P Ματ (2P-B116XAK01.2 HW0A)

Replacement laptop display panel with 11.6-inch LED-backlit OnCell touch screen, delivering crisp 1366x768 resolution and a matte finish for reduced glare. This panel integrates capacitive multi-touch (10-point) directly on the glass, ensuring responsive input and a slim profile. The 30-pin eDP connector ensures compatibility with a wide range of laptops requiring WXGA touch panels.

Advantages

OnCell touch technology eliminates a separate digitizer layer, reducing thickness and improving optical clarity. The matte surface minimizes reflections, making it ideal for bright environments. LED backlighting provides energy efficiency and consistent brightness. With a 60 Hz refresh rate and approximately 25 ms response time, it handles everyday tasks smoothly. The 10-point multi-touch supports intuitive gestures in Windows and other operating systems.

Suitable for

• Laptops requiring an 11.6-inch WXGA (1366x768) touch display with 30-pin eDP connector
• Users needing a glare-free screen for outdoor or brightly lit workspaces
• Professionals and students who rely on touch input for navigation and productivity
• System builders and repair technicians seeking a reliable replacement panel

Key specifications

• Display size: 11.6 inches
• Resolution: 1366 x 768 pixels (WXGA)
• Panel type: OnCell Touch, TN
• Backlight: LED
• Surface: Matte
• Touch: Capacitive, 10-point multi-touch
• Connector: 30-pin eDP
• Refresh rate: 60 Hz
• Response time: ~25 ms
• Brightness: ~220 cd/m²
• Color gamut: ~45% NTSC
• Viewing angles: 45/45/20/40 (L/R/U/D)
• Pixel density: ~135 PPI
• Aspect ratio: 16:9
• Mounting: Adhesive / bezel-less

Recommendations

Verify your laptop's screen size, resolution, connector type, and touch requirement before ordering. Handle the panel by its edges to avoid damage to the flex cable and glass. Use proper ESD precautions during installation. For best results, calibrate the touch screen after installation using your operating system's calibration tool.
