WAGO 773-108 σύνδεσμος push-wire 8 αγωγών, διαφανής, 400V, 24A, χαλκός

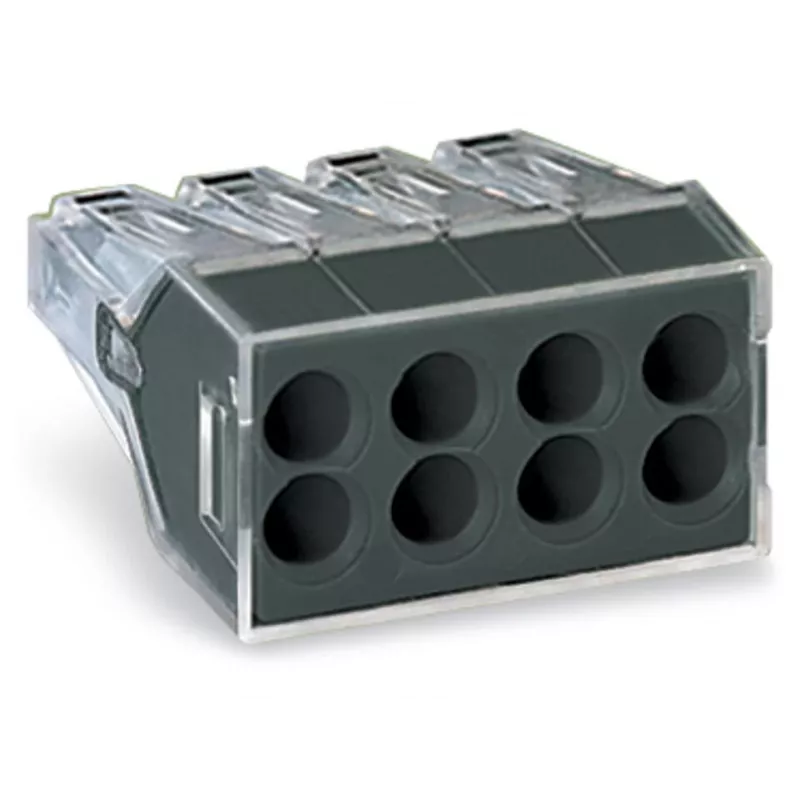

The WAGO 773-108 is a compact, transparent 8-conductor push-wire connector designed for reliable and tool-free wiring in junction boxes and lighting installations. Rated for 400 V and 24 A, it accepts solid copper conductors from 1.5 to 2.5 mm² (16–14 AWG) and features CAGE CLAMP® technology for secure connections.

Advantages

Tool-free push-in termination saves installation time. Transparent housing allows visual inspection of conductor insertion. Compact dimensions (24 x 19.5 x 13.1 mm) save space in junction boxes. VDE, UL, and CSA approved for global use.

Suitable for

• Junction boxes
• Lighting installations
• Control cabinets
• General electrical wiring

Key specifications

• 8 connection points
• Rated voltage: 400 V
• Rated current: 24 A
• Conductor cross-section: 1.5–2.5 mm² solid
• Stripping length: 12 mm
• Connection technology: CAGE CLAMP®
• Housing material: Polycarbonate (PC)
• Flammability rating: UL94 V2
• Operating temperature: up to 105 °C
• Dimensions: 24 x 19.5 x 13.1 mm
• Weight: 4.605 g

Recommendations

For best results, use with solid copper conductors and strip to exactly 12 mm. Suitable for indoor use only.
