Βάση tablet RAM Mounts RAM-HOL-HON9PD2U Μαύρο για εσωτερικό χώρο

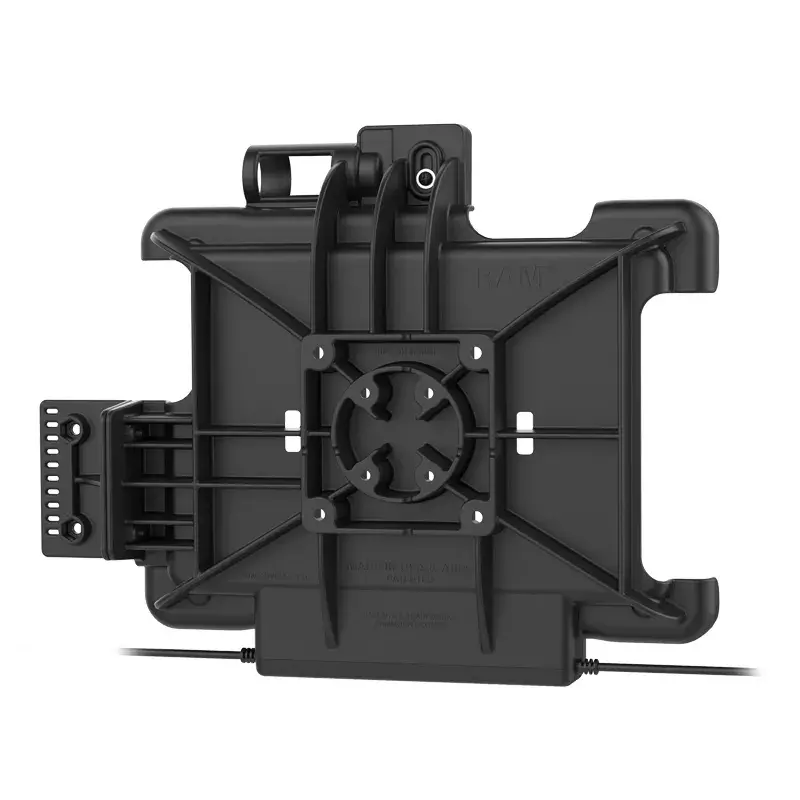

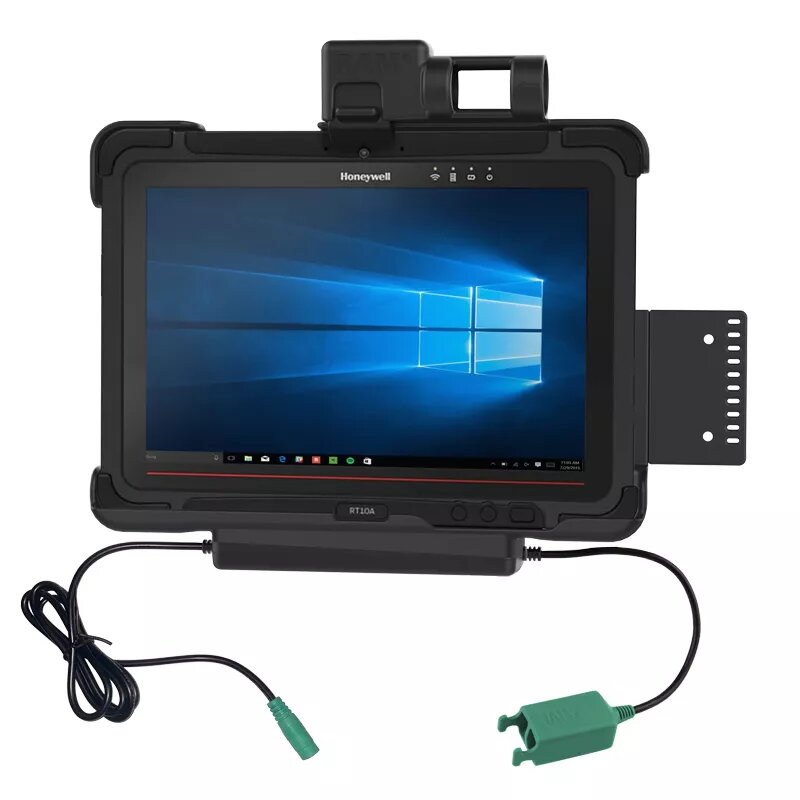

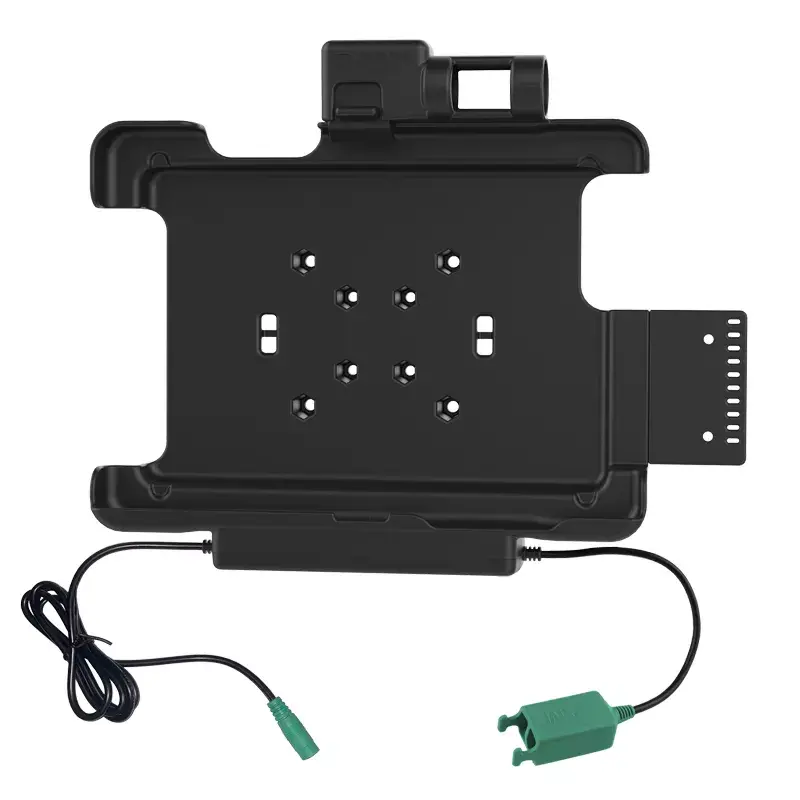

The RAM® Vehicle Dock for the Honeywell RT10 rugged tablet provides a secure mounting and charging solution that supports up to two peripherals while the tablet is docked. Power is supplied via the dock's 5.5 mm DC power jack and the dock charges the tablet through pogo pin contacts. The design includes a rear cutout to preserve the tablet's scanning function and to accommodate accessories such as a scanner module, hand strap, or extended battery pack. The dock is finished in black for indoor use and matches common RAM mounting patterns for flexible installation.

Advantages

The vehicle dock supports simultaneous charging and peripheral connections through its dual USB Type-A cable and integrated power jack, reducing the need for separate adapters. The rear cutout ensures uninterrupted scanner operation and makes space for add-ons without removing the tablet from the dock. Compatibility with RAM C and D size 4-hole AMPS and 75 x 75 mm VESA patterns enables a wide range of mounting arm options, and the built-in 2-hole plate allows additional small device mounts such as a phone or other handheld.

Suitable for

• Mounting Honeywell RT10 tablets in vehicles or fixed indoor stations
• Use cases requiring simultaneous charging and peripheral connectivity (barcode scanner, USB devices)
• Installations needing compatibility with RAM AMPS or VESA mounting systems
• Environments where access to the tablet’s rear scanner or accessory ports must be preserved

Key specifications

• Compatible device: Honeywell RT10 rugged tablet
• Power input: 5.5 mm DC power jack (dock)
• Charging method: Pogo pin contacts (tablet docked)
• Peripheral interface: Built-in dual USB Type-A cable (supports up to two peripherals)
• Mounting compatibility: RAM C and D size 4-hole AMPS and 75 x 75 mm VESA patterns
• Additional mount: Built-in 2-hole plate compatible with RAM 2-hole diamond base
• Color: Black; Intended use: Indoor

How to use

Attach the dock to a compatible RAM base or arm using the C/D size 4-hole AMPS or 75 x 75 mm VESA pattern, or use the optional bracket and 2-hole diamond base for additional devices. Connect a suitable 5.5 mm DC power adapter to the dock's power jack. Slide the Honeywell RT10 into the dock so the pogo pin contacts engage and the rear cutout aligns with any scanner or add-on. Connect up to two USB peripherals using the built-in dual USB Type-A cable. Verify that the tablet charges and that attached peripherals are recognized by the tablet.

Recommendations

For reliable operation, use a power adapter that matches Honeywell’s recommended voltage and current specifications and route USB cables through the dock's cable management features. Periodically check pogo pin contacts and mounting fasteners for wear or loosening, and avoid exposing the dock to prolonged moisture since it is designed for indoor use.
