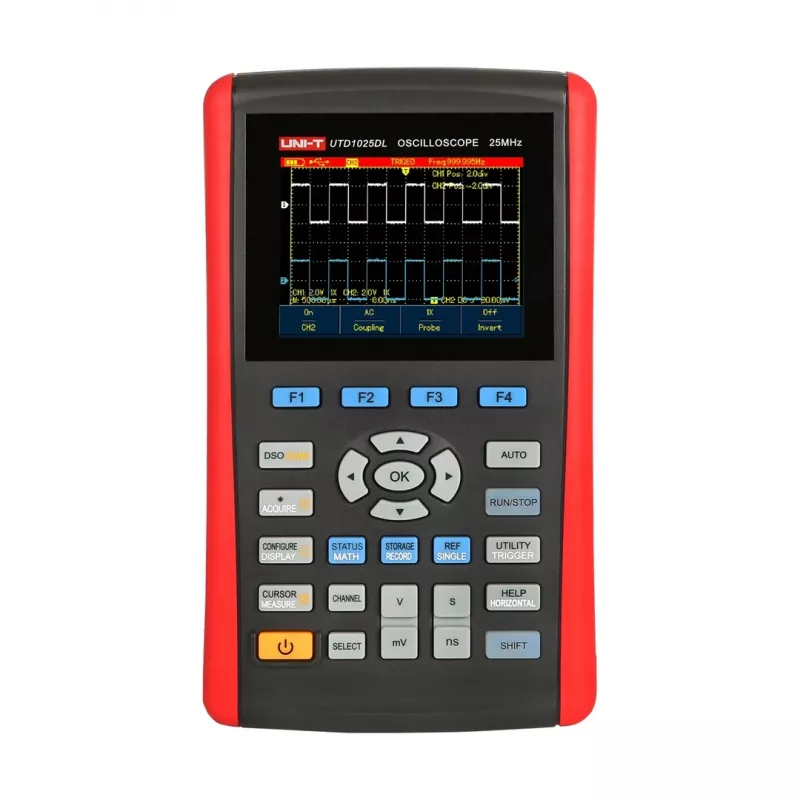

Uni-T UTD1025DL Παλμογράφος 25 MHz 2 Κανάλια 250 MSa/s

The Uni-T UTD1025DL is a high-performance digital storage oscilloscope designed for precise signal analysis in educational, service, and industrial applications. With a bandwidth of 25 MHz and a real-time sample rate of 250 MSa/s, it delivers accurate waveform capture and measurement. The 5.7-inch TFT LCD display with 320x240 resolution provides clear visualization of signals.

Advantages

This oscilloscope offers a comprehensive set of automatic measurements (28 types), FFT function for frequency analysis, and versatile trigger modes including edge, pulse, video, slope, and alternate. The memory depth of 600 kpts per channel ensures detailed signal storage. Its compact design and USB connectivity (Host and Device) make it easy to integrate into test setups.

Suitable for

• Electronics education and training labs
• Service and repair technicians
• Embedded system development and debugging
• General-purpose signal analysis

Key specifications

• Bandwidth: 25 MHz
• Channels: 2
• Real-time Sample Rate: 250 MSa/s
• Rise Time: ≤14 ns
• Memory Depth: 600 kpts per channel
• Display: 5.7-inch TFT LCD, 320x240 pixels
• Vertical Sensitivity: 5 mV/div to 20 V/div
• Time Base Range: 10 ns/div to 50 s/div
• Input Impedance: 1 MΩ ±2% || 18 pF ±3 pF
• Max Input Voltage: 400 V (DC+AC Peak)
• Trigger Modes: Edge, Pulse, Video, Slope, Alternate
• Automatic Measurements: 28 types
• Waveform Storage: 10 waveforms
• FFT Function: Yes
• Interface: USB Host, USB Device
• Power Supply: 100-240 V AC RMS, 50/60 Hz

Recommendations

For reliable and accurate signal measurement, the Uni-T UTD1025DL is an excellent choice for both beginners and experienced users. Its robust feature set and user-friendly interface make it a valuable tool for any electronics workbench.
