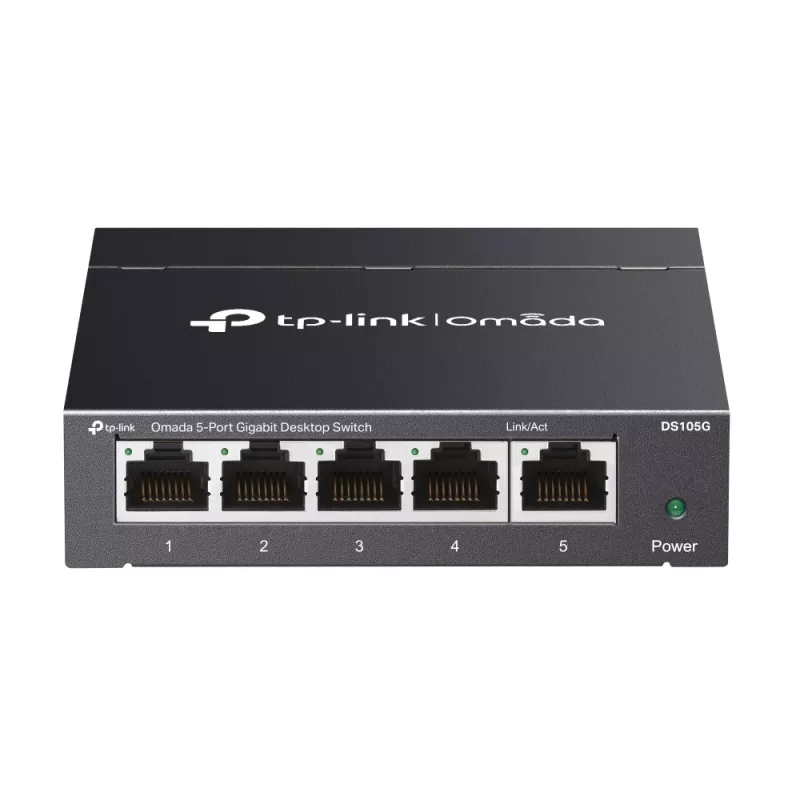

TP-Link Omada 5-Port Gigabit Desktop Switch

The TP-Link Omada 5-Port Gigabit Desktop Switch is a high-performance, fanless switch designed for small and medium businesses. It provides five 10/100/1000 Mbps RJ45 ports with auto-negotiation and auto MDI/MDIX, ensuring seamless connectivity for your network devices. With a switching capacity of 10 Gbps and a packet forwarding rate of 7.44 Mpps, this switch delivers reliable and efficient data transfer. Its metal casing and desktop/wall-mountable design make it durable and versatile for various deployment scenarios.

Advantages

This switch offers several key benefits: fanless design ensures silent operation, making it ideal for noise-sensitive environments; Green Ethernet technology reduces power consumption; and jumbo frame support up to 16 KB enhances performance for large data transfers. The compact metal casing provides durability and heat dissipation.

Suitable for

• Small office/home office (SOHO) networks
• Expanding wired connectivity for IP cameras, printers, and computers
• Creating a reliable network backbone for Omada SDN solutions
• Wall-mounted installations in retail or hospitality environments

Key specifications

• 5 x 10/100/1000 Mbps RJ45 ports
• Switching capacity: 10 Gbps
• Packet forwarding rate: 7.44 Mpps
• MAC address table: 2K entries
• Jumbo frame support: 16 KB
• Fanless design for silent operation
• Green Ethernet technology for energy savings
• External power adapter (5VDC/0.6A)
• Max power consumption: 2.3W
• Metal casing, desktop and wall-mountable
• LED indicators: Power, Link/Act per port
• Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x
• Certifications: CE, FCC, RoHS

Recommendations

For optimal performance, use this switch with Cat5e or higher Ethernet cables. It is recommended to mount the switch in a well-ventilated area to ensure longevity. The switch is plug-and-play, requiring no configuration for basic operation.
