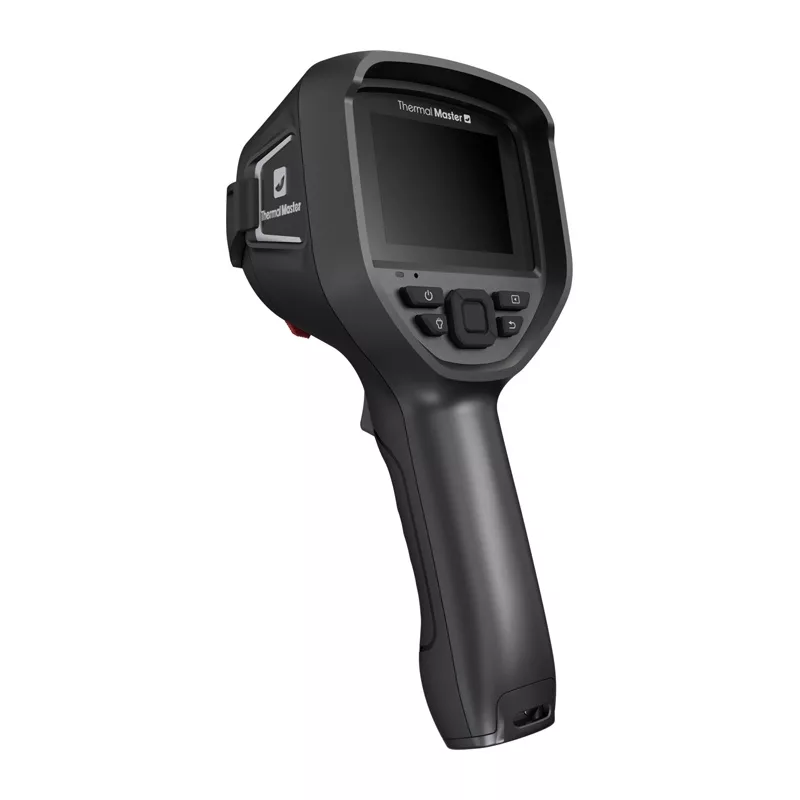

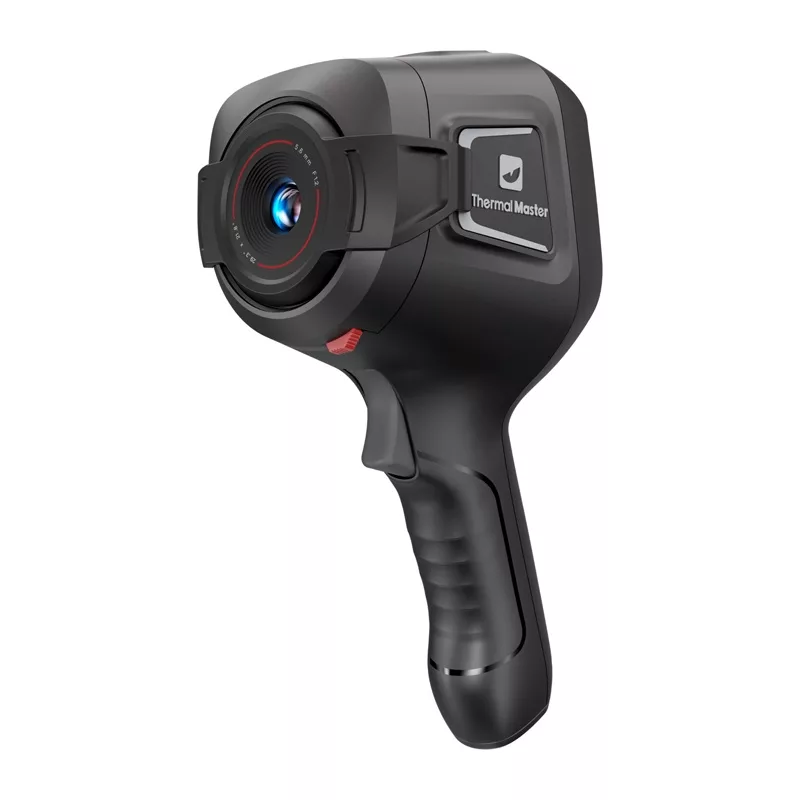

THERMAL MASTER Thor002 Θερμική κάμερα

The THERMAL MASTER Thor002 is a high-performance thermal imaging camera designed for professional diagnostics, electrical inspections, building maintenance, and HVAC applications. With a 256x192 infrared resolution and a wide temperature range from -20°C to 550°C, it delivers precise thermal measurements and clear imaging. The device features a 3.5-inch LCD display, a 5MP visible light camera, and multiple image modes including thermal, visual, fusion, and picture-in-picture. Its robust IP54 rating ensures durability in challenging environments.

Advantages

High-resolution thermal sensor with 256x192 pixels for detailed temperature analysis. Accurate measurements with ±2°C or ±2% accuracy and <40 mK thermal sensitivity. Long battery life of up to 6 hours from a 5000 mAh rechargeable Li-ion battery. Built-in Wi-Fi and USB Type-C for easy data transfer and connectivity. Six color palettes (Iron Red, Rainbow, White Hot, Black Hot, Lava, Arctic) enhance image interpretation. Emissivity adjustable from 0.01 to 1.00 for various surface materials.

Suitable for

• Electrical panel and circuit board inspections
• Building envelope and insulation analysis
• HVAC system diagnostics
• Mechanical equipment monitoring
• Predictive maintenance and quality control

Key specifications

• Infrared Resolution: 256 x 192 pixels
• Temperature Range: -20°C to 550°C (-4°F to 1022°F)
• Accuracy: ±2°C or ±2% (whichever greater)
• Thermal Sensitivity (NETD): <40 mK
• Frame Rate: 25 Hz
• Field of View: 56° x 42°
• Spatial Resolution (IFOV): 3.75 mrad
• Focus: Fixed focus
• Display: 3.5-inch LCD
• Visible Camera: 5 Megapixels
• Image Modes: Thermal, Visual, Fusion, Picture-in-Picture
• Color Palettes: 6 (Iron Red, Rainbow, White Hot, Black Hot, Lava, Arctic)
• Storage: 16 GB internal (approx. 100,000 images)
• Connectivity: USB Type-C, Wi-Fi
• Battery: Rechargeable Li-ion 5000 mAh, up to 6 hours
• IP Rating: IP54
• Operating Temperature: -10°C to 50°C (14°F to 122°F)
• Emissivity Adjustment: 0.01 to 1.00
• Measurement Tools: Spot, Line, Area (Max/Min/Avg)

Recommendations

For optimal results, ensure the lens is clean and the device is calibrated according to the user manual. Use the appropriate emissivity setting for the material being measured. The Thor002 is ideal for professionals seeking reliable thermal imaging in demanding conditions.
