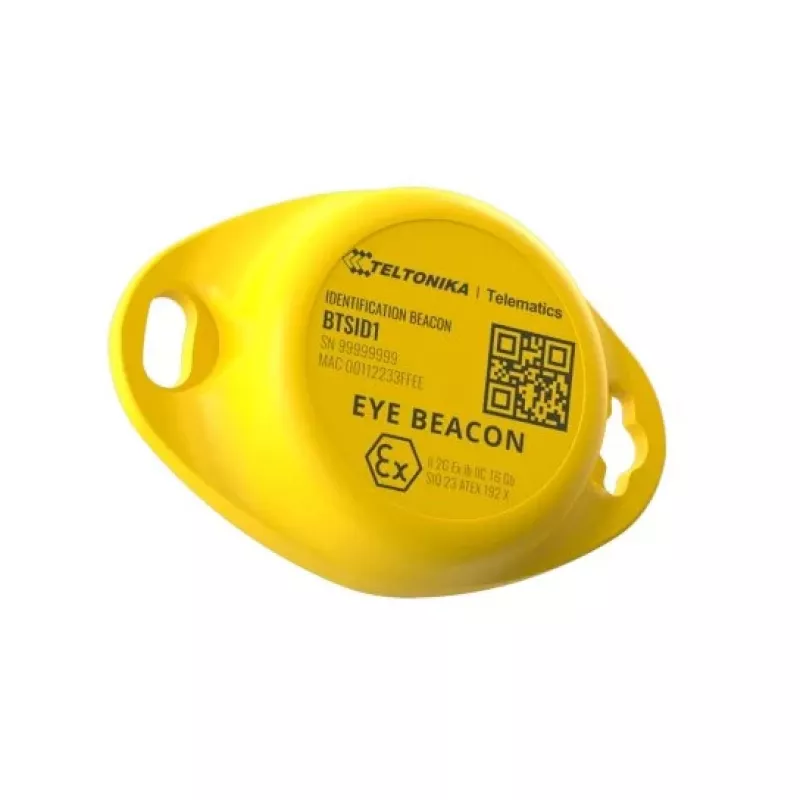

Teltonika Telematics EYE Beacon ATEX Bluetooth ID Beacon για εκρηκτικές ατμόσφαιρες

Tracking assets in hazardous environments demands a beacon that can withstand explosive atmospheres while delivering reliable, long-range identification. The Teltonika Telematics EYE Beacon ATEX Bluetooth ID beacon is engineered for exactly this: certified for use in Zone 1 and Zone 2 gas and dust environments, it provides robust Bluetooth Low Energy (BLE) signals for asset tracking, personnel safety, and proximity marketing in industries like oil & gas, chemical plants, and mining.

Who is it for

This beacon is ideal for safety managers, asset tracking specialists, and IoT solution providers operating in ATEX/IECEx classified areas. It suits applications such as equipment monitoring, worker mustering, and location-based services where standard beacons cannot be used due to explosion risks.

Main features

• ATEX and IECEx certified for hazardous zones (II 2G Ex ib IIC T4 Gb, II 2D Ex ib IIIC T135°C Db)
• Supports iBeacon and Eddystone (UID, URL, TLM) protocols for flexible integration
• Bluetooth 4.0 Low Energy with configurable transmit power (-20 dBm to +4 dBm) and advertising interval (100 ms to 10 s)
• Long battery life: up to 5 years on a replaceable CR2032 coin cell
• Rugged IP67-rated polycarbonate housing for dust and water resistance
• Built-in temperature sensor for environmental monitoring
• Multiple mounting options: adhesive tape, screw holes, or cable ties

Specifications

• Bluetooth version: 4.0 Low Energy (BLE)
• Frequency range: 2.4 GHz
• Maximum operating distance: up to 200 meters line-of-sight
• Operating temperature: -20 °C to +60 °C
• Housing material: Polycarbonate (PC)
• Compliance certificates: ATEX, IECEx, CE, FCC, UKCA, RoHS, REACH
• Battery type: CR2032 (replaceable)
• Configuration: Teltonika Configurator App for Android/iOS

Tips

For optimal battery life, set a longer advertising interval (e.g., 1 second or more) if real-time tracking is not critical. Use the built-in temperature sensor to monitor ambient conditions in hazardous areas and trigger alerts if thresholds are exceeded. Pair with Teltonika gateways or third-party BLE receivers for comprehensive asset visibility.
