Tecline HD Singlemode OS2 SC Duplex σε SC Duplex οπτική ίνα patch cable, 9/125 µm, κίτρινο, 1 m 799SS01

With a return loss of ≥50 dB, this Tecline HD patch cable ensures minimal signal reflection in demanding singlemode links. The OS2 fibre is optimised for 1310 nm and 1550 nm wavelengths, delivering attenuation of ≤0.4 dB/km and ≤0.3 dB/km respectively.

Overview

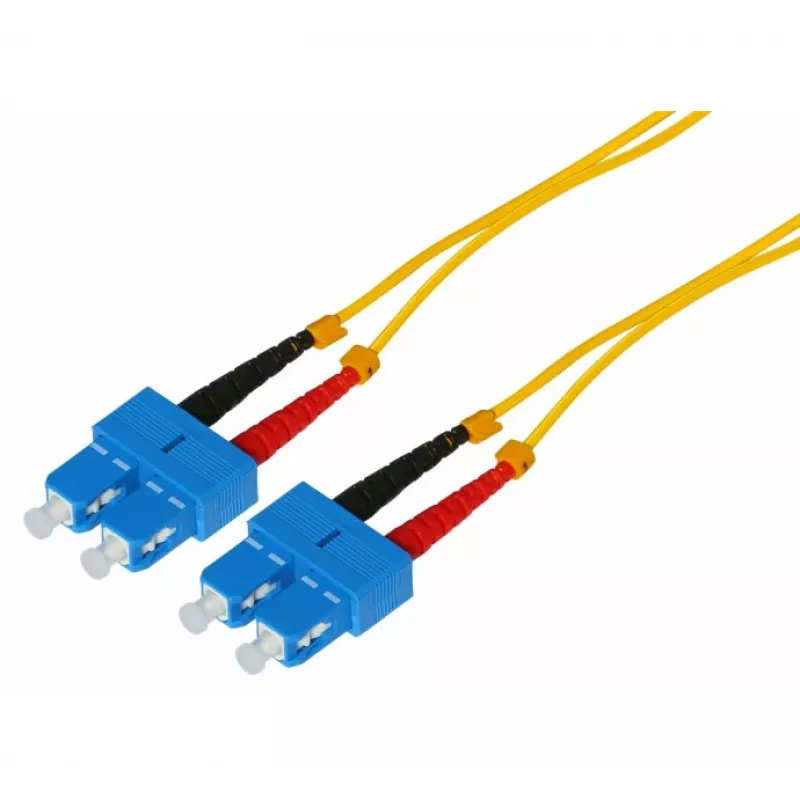

The Tecline HD Singlemode OS2 patch cable features SC duplex connectors on both ends and a 9/125 µm core/cladding diameter. The 1-metre yellow LSZH jacket is halogen-free, making it suitable for environments where low smoke and zero halogen are required.

What stands out

• Low insertion loss: ≤0.3 dB typical per connector
• High return loss: ≥50 dB for stable singlemode transmission
• OS2 fibre supports long-haul and high-speed networks
• LSZH jacket reduces toxic emissions in fire conditions
• Duplex design with SC connectors for easy polarity management

Technical details

• Fibre type: Singlemode OS2, 9/125 µm
• Connectors: SC Duplex to SC Duplex
• Length: 1 m
• Jacket colour: Yellow
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Insertion loss: ≤0.3 dB
• Return loss: ≥50 dB
• Attenuation: ≤0.4 dB/km at 1310 nm, ≤0.3 dB/km at 1550 nm
• Operating temperature: -20°C to +70°C
• Minimum bend radius: 30 mm (installation), 10 mm (long term)

Our verdict

A reliable singlemode patch cable with SC duplex connectors, ideal for high-performance fibre links where low loss and LSZH safety are priorities.
