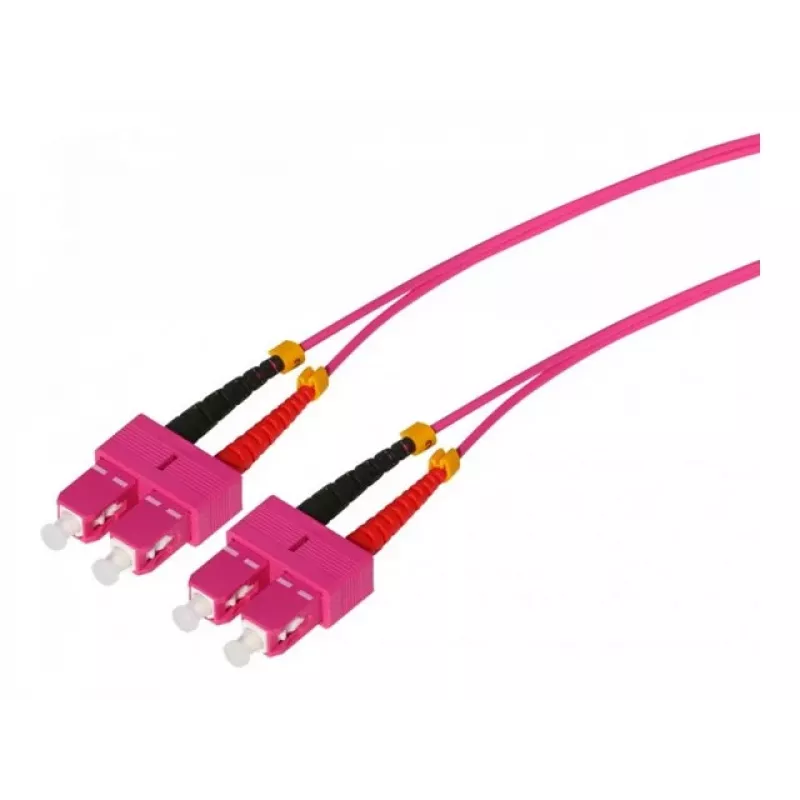

Tecline HD Καλώδιο Patch Οπτικών Ινών, OM4 Multimode, SC Duplex σε SC Duplex, Heather Violet, 5,0 m 798SS05

Fiber optic patch cable with SC duplex connectors on both ends, designed for high-speed multimode data transmission in data centers and LAN environments. The OM4 fiber supports 10/40/100 Gigabit Ethernet and is optimized for VCSEL light sources, delivering reliable performance at 850 nm.

Advantages

OM4 multimode fiber with 50/125 µm core/cladding diameter enables high bandwidth and extended reach for modern network demands. Duplex construction with two fibers supports bidirectional communication. Heather violet jacket allows easy identification and cable management.

Suitable for

• Data center interconnects
• Local area networks (LAN)
• Storage area networks (SAN)
• High-speed backbone links

Key specifications

• Fiber type: Multimode OM4
• Core/cladding diameter: 50/125 µm
• Connectors: SC Duplex to SC Duplex
• Length: 5.0 m
• Jacket colour: Heather violet
• Bandwidth: 4700 MHz·km at 850 nm, 500 MHz·km at 1300 nm
• Standards: TIA/EIA-568-C.3, ISO/IEC 11801, EN 50173-1

Recommendations

For optimal performance, pair with OM4-compatible transceivers and maintain proper bend radius during installation.
