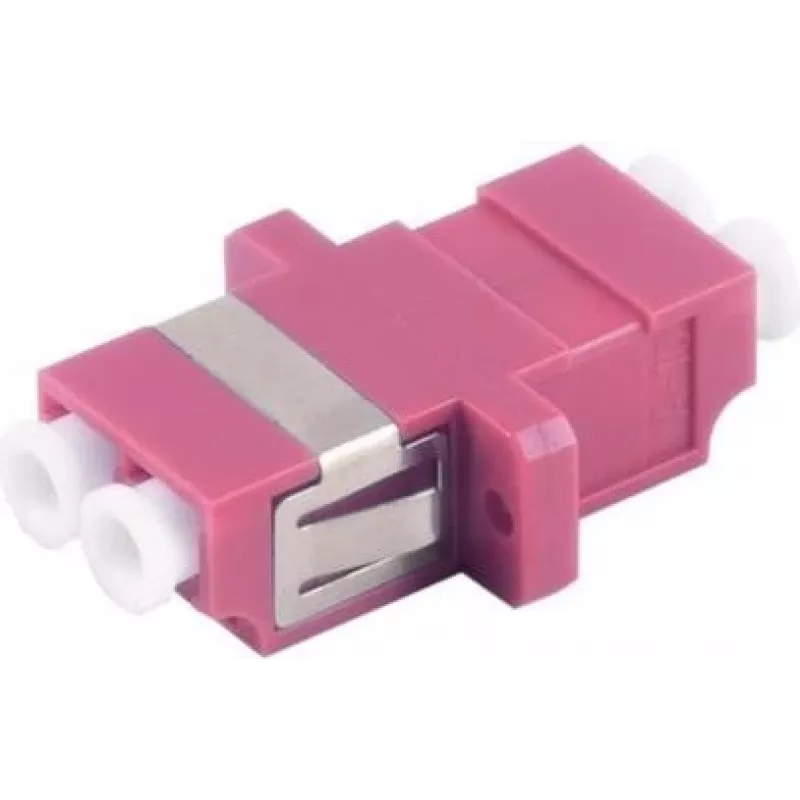

Σύνδεσμος οπτικής ίνας LC/LC υποδοχή/υποδοχή ShiverPeaks BS07-60013

The ShiverPeaks BS07-60013 is an LC/LC female-to-female fibre optic connector designed as a bulkhead-style adapter for panel or enclosure mounting. It provides a compact, duplex interface that aligns and secures two LC-terminated fibre cables for singlemode or multimode links where LC connectors are used. The adapter's form factor supports high-density installations and maintains optical alignment to ensure consistent signal transmission in networking and telecom environments.

Advantages

This LC/LC female/female bulkhead connector offers a standardized duplex connection compatible with LC-terminated fibre cables, enabling straightforward mating through panels or patch panels. The adapter's precision ferrule alignment minimizes insertion loss and back reflection, while its compact size allows for dense port arrangements. Its bulkhead design simplifies installation and provides a stable mechanical interface that reduces stress on connected fibre cables.

Key specifications

• Connector type: LC female to LC female (duplex)
• Mounting style: bulkhead / panel adapter
• Compatibility: LC-terminated fibre cables (duplex)
• Typical applications: singlemode and multimode fibre links
• Form factor: compact duplex adapter for high-density installations

How to use

Install the bulkhead adapter into a compatible panel or enclosure cutout and secure it according to the mounting method of the panel. Insert LC-terminated fibre patch cords into each side of the adapter until a positive click is felt, ensuring correct duplex orientation. Verify optical continuity and check insertion loss with appropriate test equipment after installation. To disconnect, depress the LC latch and withdraw the connector straight out to avoid bending the fibre.

Recommendations

Use dust caps when connectors are not mated to prevent contamination. Handle LC connectors by the boot or housing, avoid touching the ferrule, and perform regular visual inspection and cleaning with approved fibre cleaning tools to maintain optimal optical performance.
