Striebel & John AP DA27BB Τριών Σημείων A27 1Z1V5A2 Επίτοιχος Κατανεμητής

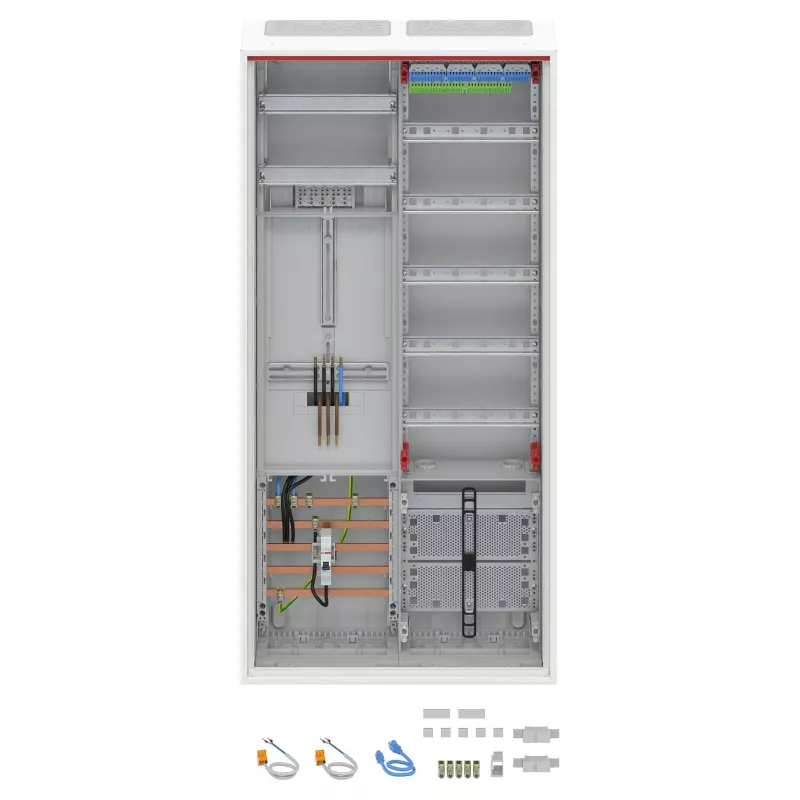

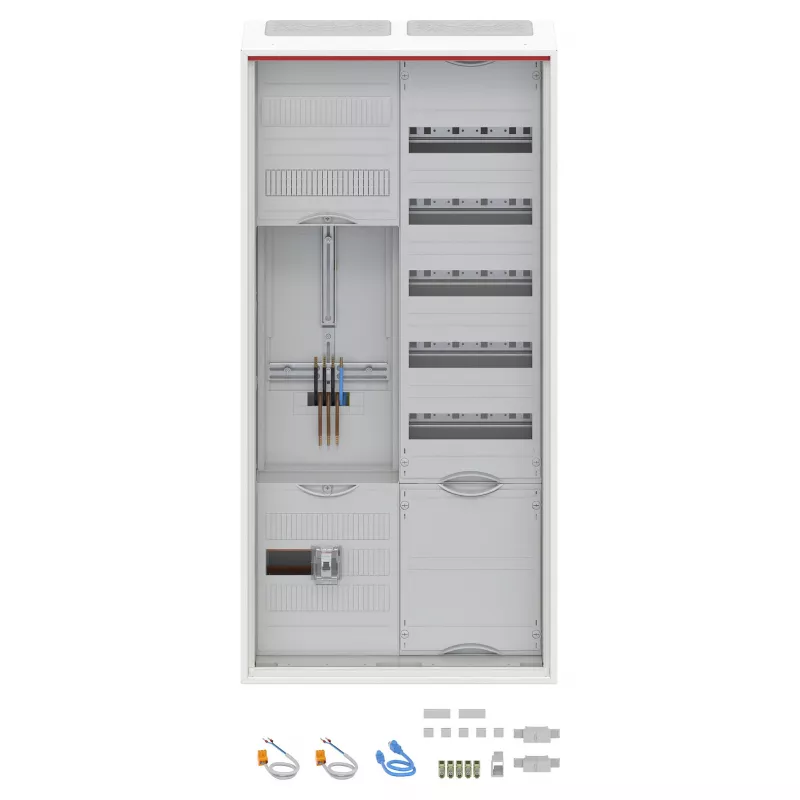

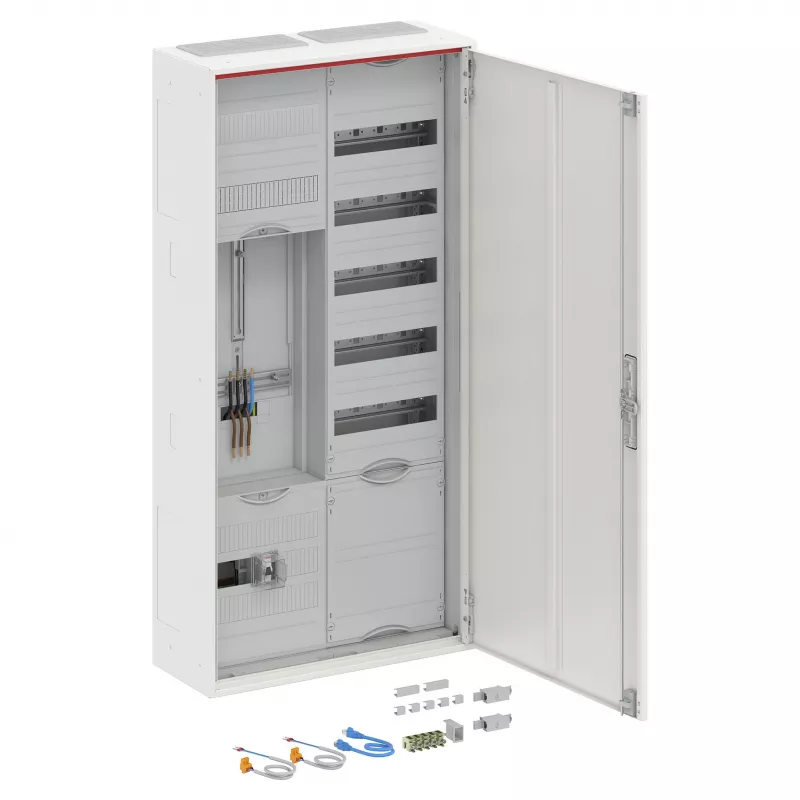

The Striebel & John AP DA27BBDreipunkt A27 1Z1V5A2 is a high-quality surface-mounted distribution board designed for professional electrical installations. It offers robust construction and reliable performance for residential and commercial applications.

Advantages

This distribution board features a durable steel sheet enclosure with a pure white RAL 9010 finish, providing excellent protection against dust and water with IP44 rating. The three-point rod lock ensures secure closure, while the IK07 impact resistance guarantees durability in demanding environments.

Suitable for

• Residential electrical distribution systems
• Commercial building installations
• Industrial control cabinets
• Meter and distribution field applications

Key specifications

• Mounting Type: Surface-mounted (AP)
• Material: Steel sheet
• Colour: RAL 9010 (Pure white)
• Protection Class: IP44
• Impact Resistance: IK07
• Number of Meter Fields: 1
• Number of Distribution Fields: 1
• Number of Rows (Distribution): 5
• Modules per Row (Distribution): 24
• Total Modules (Distribution): 120
• Locking Mechanism: Three-point rod lock
• Door Type: Steel door
• Rated Voltage: 230/400 V AC
• Rated Current (max): 63 A
• Cable Entry: Top, Bottom, Side (pre-punched/removable flanges)
• Standards: DIN VDE 0603-1, DIN 43870-1
• Internal Configuration: With mounting plate, DIN rails, busbar system

Recommendations

For optimal installation, ensure proper cable entry preparation and use appropriate accessories. This distribution board is ideal for new constructions or upgrades where surface mounting is required.
