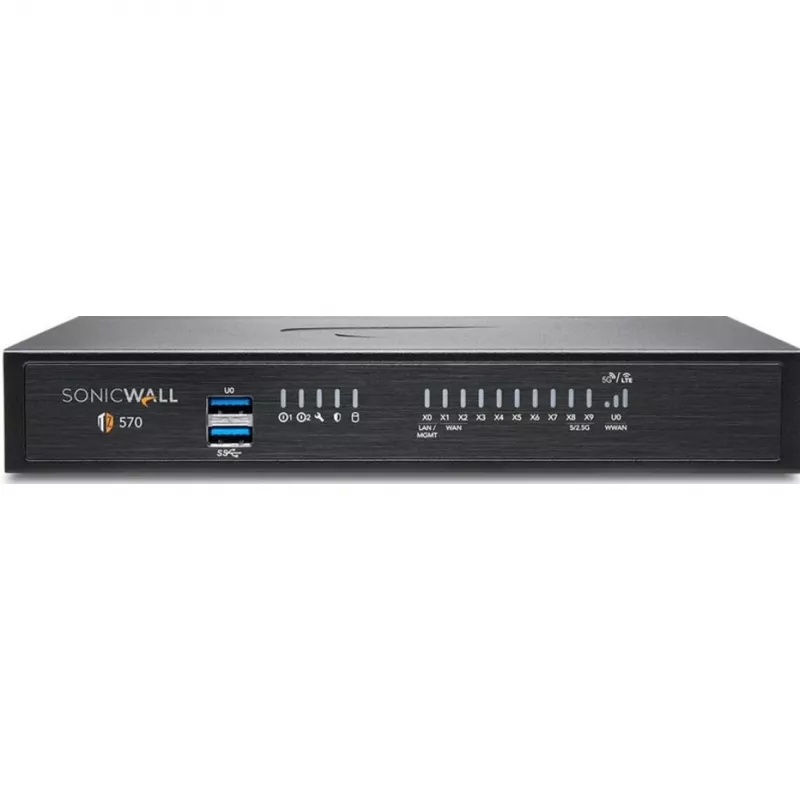

SonicWALL TZ570 High Availability Security Appliance - 8x 1GbE, 2x 5GbE - Desktop

The SonicWALL TZ570 High Availability Security Appliance delivers enterprise-grade next-generation firewall protection for distributed enterprises and branch offices. With active/passive stateful failover, this model ensures business continuity by automatically switching to a standby unit in case of failure. It combines high-speed connectivity with advanced security features including Capture ATP, IPS, GAV, content filtering, SSL/TLS inspection, and application control.

Advantages

High availability ensures zero downtime with seamless failover. The TZ570 offers impressive throughput: 6.0 Gbps firewall, 2.5 Gbps threat prevention, and 2.0 Gbps VPN. It supports SD-WAN capabilities for optimized WAN performance and includes a multi-core processor for efficient packet processing. The compact desktop form factor fits easily into any environment.

Suitable for

• Branch offices requiring high availability and redundancy
• Distributed enterprises needing consistent security across locations
• Organizations with growing bandwidth demands (1GbE and 5GbE ports)
• Businesses seeking advanced threat protection and secure remote access

Key specifications

• Device Type: Next-Generation Firewall (NGFW) Security Appliance
• Form Factor: Desktop
• Firewall Throughput: 6.0 Gbps
• Threat Prevention Throughput: 2.5 Gbps
• Intrusion Prevention Throughput: 3.0 Gbps
• VPN Throughput: 2.0 Gbps
• Ethernet Ports: 8 x 1GbE (RJ45), 2 x 5GbE (RJ45)
• USB Ports: 1 x USB 3.0, 1 x USB 2.0
• Console Port: 1 x RJ45
• Maximum SPI Connections: 1,000,000
• New Connections Per Second: 30,000
• Site-to-Site VPN Tunnels: 200
• High Availability: Active/Passive Stateful Failover
• Security Features: Capture ATP, IPS, GAV, Content Filtering, SSL/TLS Inspection, Application Control
• SD-WAN Capabilities: Yes
• Management Interface: SonicOS (Web UI, CLI), Cloud (NSM)
• Power Supply: External AC Adapter (100-240 VAC, 50/60 Hz)
• Processor Architecture: Multi-core

Recommendations

For organizations that require maximum uptime and advanced security, the SonicWALL TZ570 High Availability bundle is an ideal choice. Pair with SonicWALL NSM for centralized cloud management and consider adding a wireless access point for Wi-Fi coverage.
