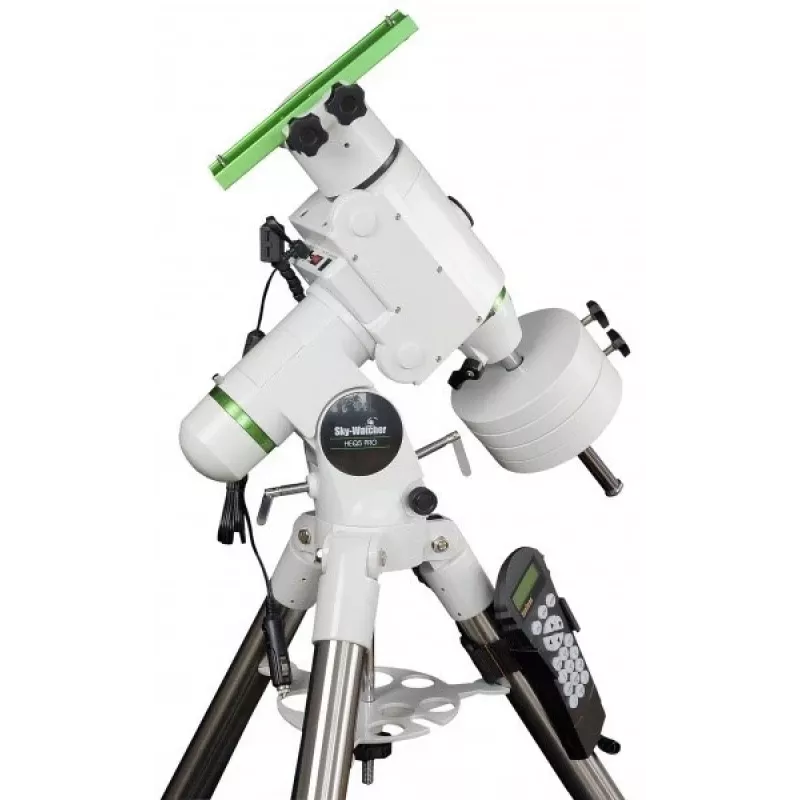

Ισημερινή στήριξη Skywatcher HEQ5 PRO με τρίποδο NEQ5

The Skywatcher HEQ5 PRO equatorial mount paired with the NEQ5 tripod is a precision tracking platform designed for amateur astronomers working with medium-aperture telescopes. The assembly provides equatorial drive mechanics and polar alignment capability to follow celestial objects across the sky, enabling steady visual observation and guided long-exposure astrophotography. The mount supports payload balancing and stable guided tracking to reduce field rotation and improve image sharpness during extended exposures.

Advantages

The mount features an equatorial axis design that simplifies sidereal tracking and minimizes the need for frequent re-centering. Built for stability, the HEQ5 PRO head combined with the NEQ5 tripod reduces mechanical flex and vibration, improving image stability at moderate focal lengths. The assembly supports guided tracking to correct for small guiding errors and offers precise polar alignment capability to optimize tracking accuracy for long-exposure imaging.

Suitable for

• Visual observing with medium-aperture refractors and reflectors
• Guided astrophotography with DSLR or mirrorless cameras
• Long-exposure deep-sky imaging at moderate focal lengths
• Educational and amateur astronomy projects requiring accurate tracking

Key specifications

• Equatorial mount head with polar alignment capability for sidereal tracking
• Payload capacity suitable for medium-aperture telescopes and imaging equipment
• Guiding input for autoguiders to enable corrections during exposures
• Sturdy tripod with adjustable legs and vibration damping features
• Counterweight shaft and counterweights support for balanced payload distribution
• Slow-motion controls and fine adjustment for precise target framing

How to use

Assemble the NEQ5 tripod and secure the HEQ5 PRO mount head per the manufacturer's mechanical connections. Mount the telescope and attach counterweights to achieve balanced operation on both right ascension and declination axes. Perform polar alignment using the mount's polar scope or an electronic polar-alignment routine, then calibrate any connected autoguider or drive system. For visual use, balance the setup and use slow-motion controls to track targets manually or engage the mount's tracking drive for automatic sidereal tracking. For astrophotography, connect an autoguider and camera, perform guiding calibration, and run exposures while monitoring guiding corrections and focus.

Recommendations

Use accurate polar alignment and proper balancing to maximize tracking performance. When imaging, choose moderate focal lengths and use autoguiding to minimize tracking errors. Allow the mount to settle after slews and avoid overloading the payload capacity to reduce periodic error and mechanical strain.
