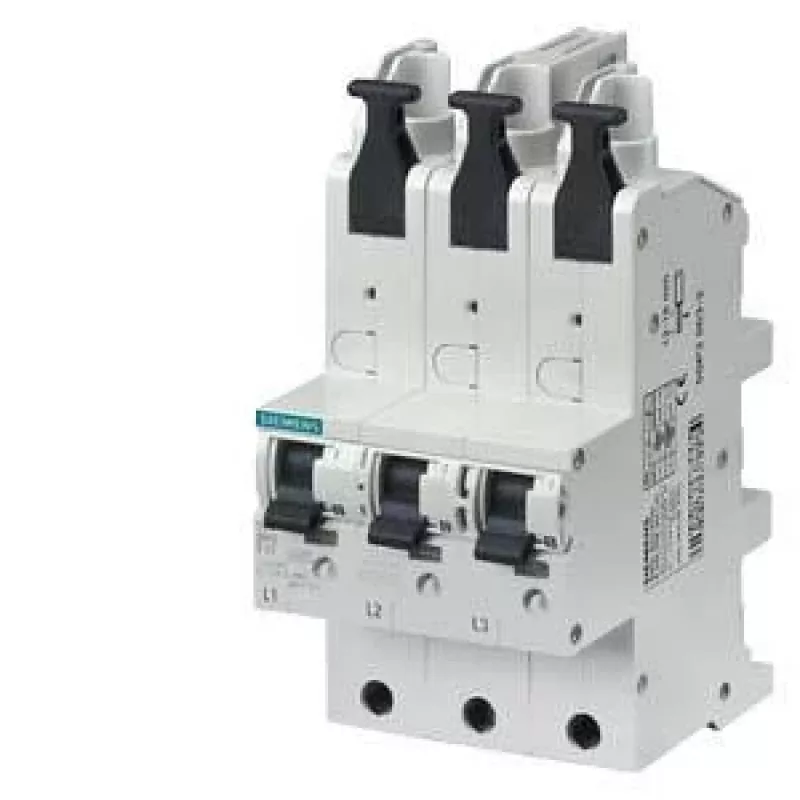

SIEMENS SENTRON 5SP38632 3πολικός 63A χαρακτηριστική C MCB 6kA

Main line circuit breaker from the SENTRON series, delivering reliable protection for electrical installations with a 63 A rated current and C tripping characteristic.

Advantages

This 3-pole miniature circuit breaker (MCB) provides effective protection against overload and short-circuit currents. Its C-curve ensures reliable tripping for circuits with moderate inrush currents, making it suitable for a wide range of commercial and industrial applications. The 6 kA breaking capacity handles high fault currents safely, while the compact 3-module width saves space on the DIN rail.

Suitable for

• Distribution boards in commercial buildings
• Industrial control panels
• Protection of power circuits with moderate inrush currents

Key specifications

• Number of poles: 3
• Rated current: 63 A
• Tripping characteristic: C
• Rated voltage: 400 V AC
• Breaking capacity: 6 kA
• Frequency: 50/60 Hz
• Mounting: DIN rail
• Width: 3 modules (54 mm)
• Connection: screw terminals
• Terminal capacity (solid): 0.75 - 35 mm²
• Terminal capacity (stranded): 0.75 - 25 mm²
• Electrical endurance: 10,000 cycles
• Mechanical endurance: 20,000 cycles
• Pollution degree: 3
• Overvoltage category: III
• Standard: EN 60898-1

Recommendations

Ideal for protecting main power distribution circuits where a 63 A rating and C-curve tripping are required. Ensure proper sizing according to local regulations and installation conditions.
