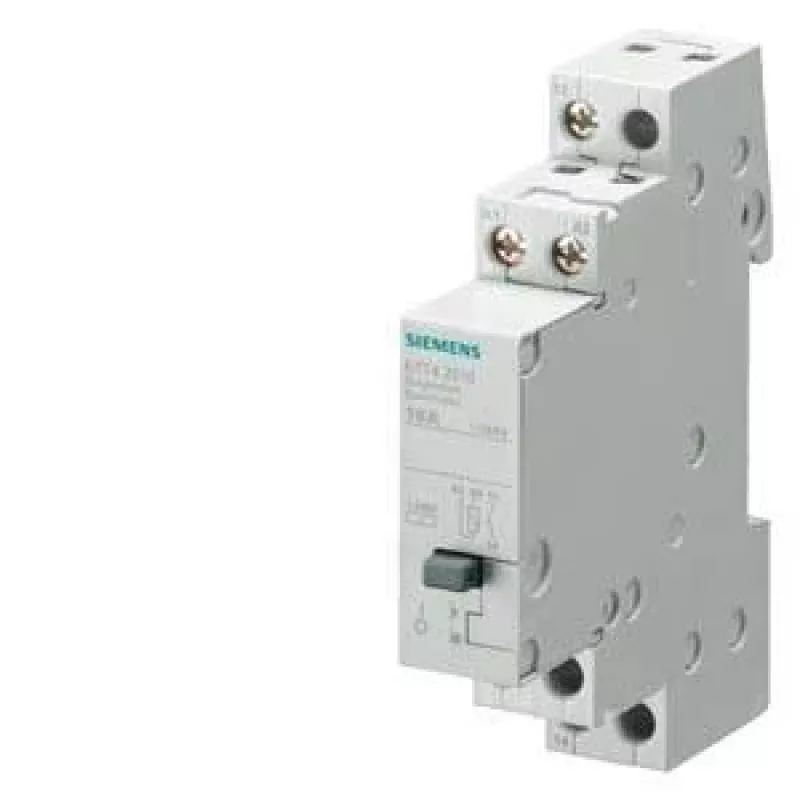

SIEMENS Ρελέ 5TT42070, 2 επαφές εναλλαγής, πηνίο 230 V AC, 16 A

This switching relay stands out with its 2 changeover contacts and 16 A rating in a compact 1 TE DIN rail housing, making it a reliable choice for control and switching tasks in electrical installations.

Highlights

• 2 changeover contacts (SPDT) for versatile switching
• 230 V AC coil voltage
• 16 A rated contact current
• DIN rail mounting, 1 module width (18 mm)
• Screw terminals for secure wiring

In daily use

The relay handles resistive loads up to 3680 VA at 230 V AC, suitable for lighting, heating, and motor control. Its mechanical life of 1,000,000 cycles ensures long-term reliability.

Full specifications

• Product type: Switching Relay
• Contact configuration: 2 changeover contacts (SPDT)
• Rated coil voltage: 230 V AC
• Rated contact current: 16 A
• Rated frequency: 50/60 Hz
• Max. switching capacity (resistive load): 3680 VA
• Power consumption (coil): 1.5 VA
• Mounting type: DIN rail
• Module width: 1 TE (18 mm)
• Connection type: Screw terminals
• Terminal capacity (solid): 0.5 - 4 mm²
• Terminal capacity (stranded): 0.5 - 2.5 mm²
• Mechanical life: 1,000,000 cycles
• Electrical life: 100,000 cycles
• Operating temperature range: -25 to +55 °C
• Storage temperature range: -40 to +70 °C
• Protection degree (device): IP40
• Protection degree (terminals): IP20
• Overvoltage category: III

Final note

A compact and robust relay for DIN rail installation, offering reliable switching performance in a space-saving design.
