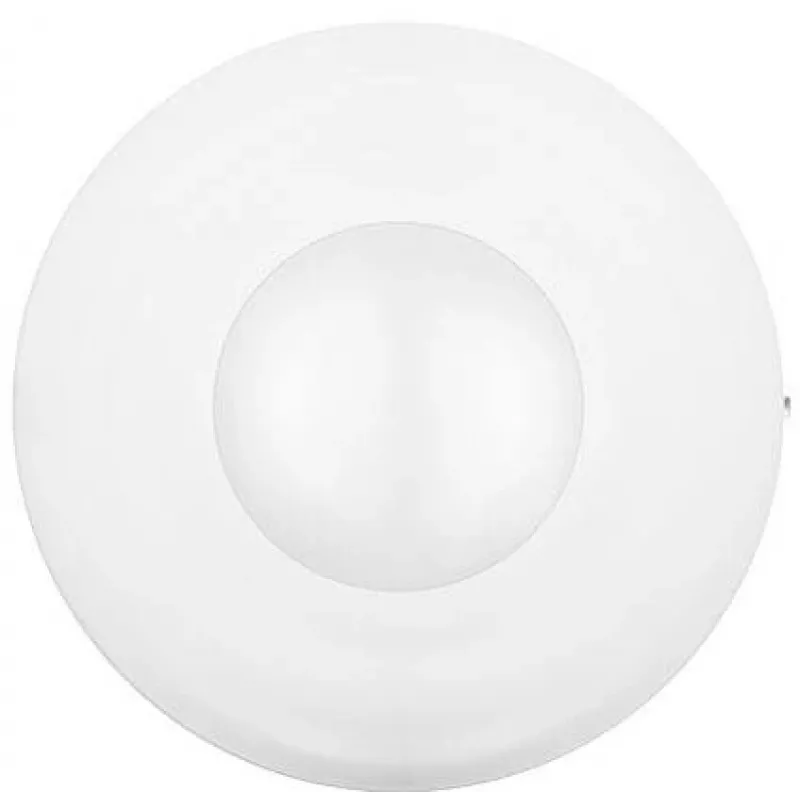

SATEL SLIM-S-PIR-LUNA Ανιχνευτής κίνησης PIR οροφής

The SATEL SLIM-S-PIR-LUNA is a professional passive infrared (PIR) ceiling-mounted motion detector designed for indoor security systems. With a 360° detection angle and a maximum diameter of 12 meters, it provides comprehensive coverage for residential and commercial premises. The detector features digital sensitivity adjustment, a configurable LED indicator, and built-in EOL resistors for easy integration with alarm panels.

Advantages

Compact and discreet design blends seamlessly with any ceiling. Reliable detection with minimal false alarms thanks to digital signal processing. Easy installation and configuration with built-in tamper protection.

Suitable for

• Indoor security systems in homes, offices, and retail spaces
• Ceiling-mount applications where 360° coverage is required
• Integration with SATEL and other alarm control panels

Key specifications

• Detector type: Passive Infrared (PIR)
• Mounting type: Ceiling
• Detection angle: 360°
• Max. detection range (diameter): 12 m (at 2.4 m mounting height)
• Recommended mounting height: 2.4 m - 4 m
• Power supply: 12 V DC (±15%)
• Current consumption: 10 mA (standby), 12 mA (max)
• Alarm output: NC, 40 mA / 24 V DC
• Tamper output: NC, 40 mA / 24 V DC
• Operating temperature: -10°C to +55°C
• Environmental class: II (EN 50130-5)
• Protection class: IP20
• Built-in EOL resistors: Yes (2EOL/NC)
• Sensitivity adjustment: Digital
• LED indicator: Yes (configurable)

Recommendations

For optimal performance, mount the detector at the recommended height of 2.4 m to 4 m and ensure the area is free from obstructions. Use with a compatible SATEL alarm panel for full functionality.
