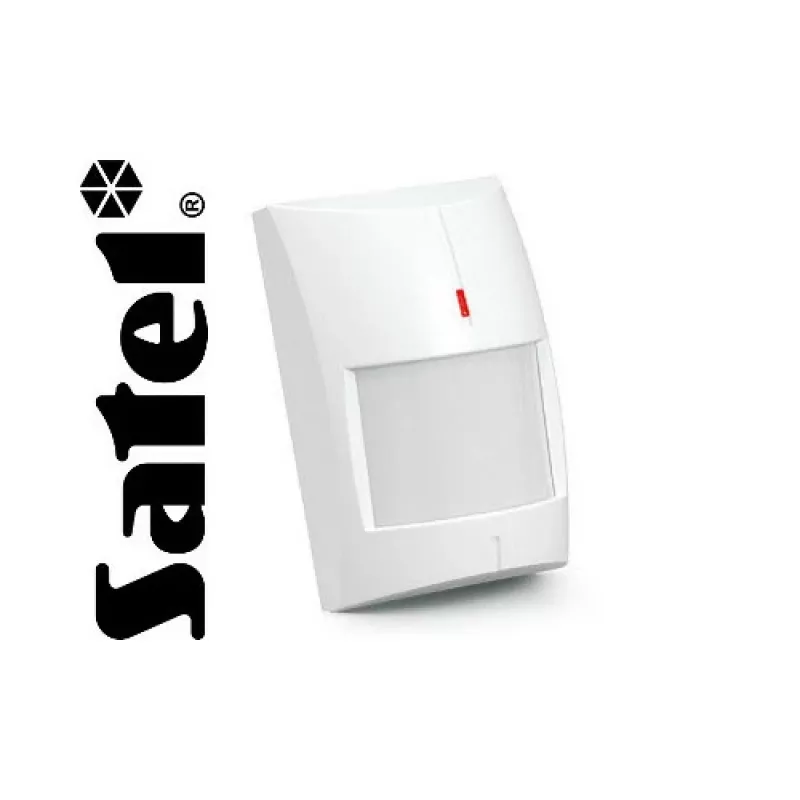

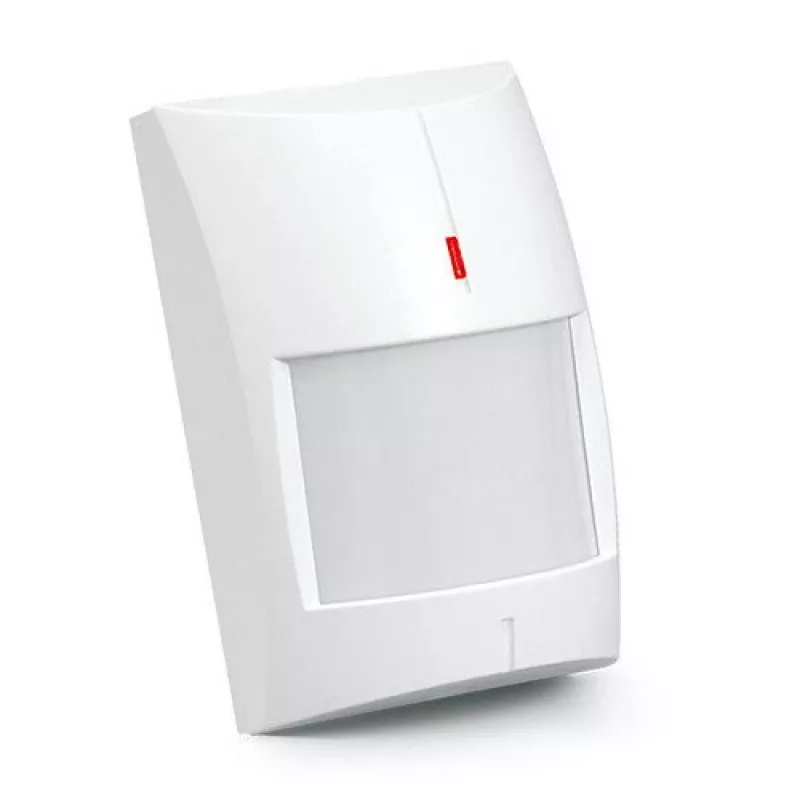

SATEL PIR+MW ανιχνευτής κίνησης γκρι

The SATEL PIR+MW Motion Detector Grey is a dual-technology security sensor that combines passive infrared (PIR) and microwave (MW) detection for reliable intrusion detection in indoor environments. Designed for professional security systems, it offers high immunity to false alarms and is suitable for residential and commercial applications.

Advantages

Dual-technology detection reduces false alarms by requiring both PIR and microwave triggers. Adjustable sensitivity for both PIR and microwave allows fine-tuning to specific environments. Supports multiple end-of-line (EOL) resistor configurations (1EOL, 2EOL, 3EOL) for compatibility with various alarm panels. Compact and discreet grey housing blends with interior decor.

Suitable for

• Indoor security systems in homes, offices, and retail spaces
• Areas requiring high reliability and low false alarm rates
• Integration with Grade 2 compliant alarm systems

Key specifications

• Detection Technology: PIR + Microwave (24.125 GHz)
• Detection Range: 15 m
• Detection Angle: 90°
• Power Supply: 9-15 VDC
• Current Consumption: 17 mA max
• Alarm Output: NC Relay (40 mA / 24 VDC)
• Tamper Output: NC Relay (40 mA / 24 VDC)
• Operating Temperature: -10°C to +55°C
• Environmental Class: II (EN50130-5)
• Security Grade: Grade 2 (EN 50131-2-4)
• Mounting Height: 2.4 m
• Housing Colour: Grey

Recommendations

For optimal performance, mount at 2.4 m height and avoid areas with direct sunlight, heat sources, or moving objects that may cause false triggers. Use with a compatible control panel supporting dual-technology detectors.
