SATEL Οροφής Διπλός Ανιχνευτής Κίνησης SLIM-R-DUAL-PRO

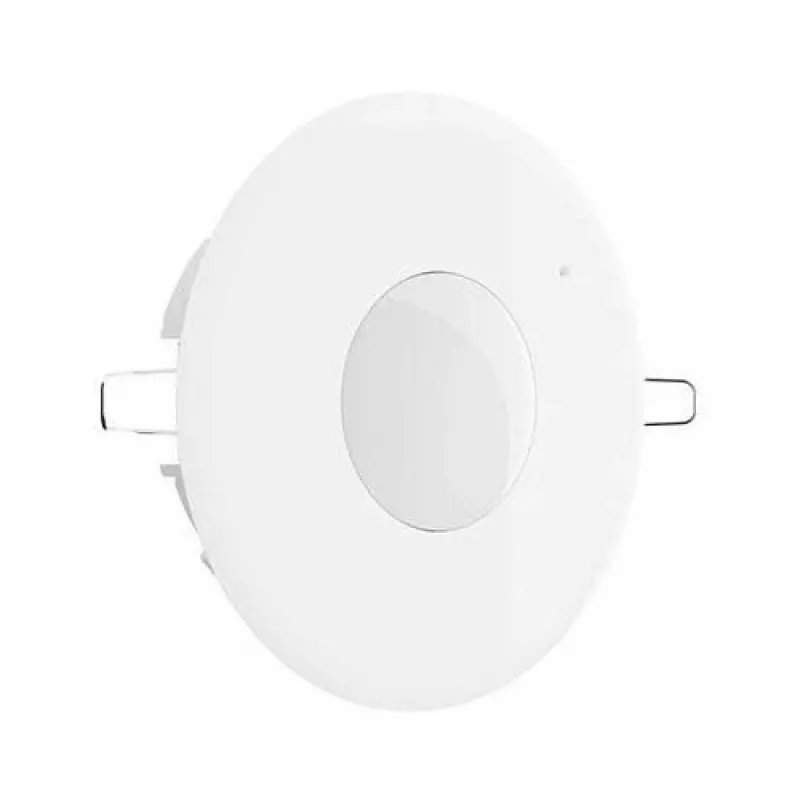

The SATEL SLIM-R-DUAL-PRO is a professional ceiling-mounted dual technology motion detector combining passive infrared (PIR) and microwave (MW) sensors for enhanced detection accuracy and reduced false alarms. Designed for indoor security applications, it offers a detection range of up to 10 meters in diameter when mounted at 2.4 meters height. The detector features active IR anti-masking, digital signal processing, and independent sensitivity adjustment for both PIR and MW channels. It supports remote configuration via PRF-LCD or USB-RS interfaces and is compatible with 2EOL/NC and 3EOL/NC resistor configurations. The housing is made of white ABS plastic, and the device operates on 12 VDC power supply with low current consumption.

Advantages

Dual technology (PIR + microwave) significantly reduces false alarms. Active IR anti-masking ensures the detector cannot be covered or blocked without triggering an alarm. Independent sensitivity adjustment allows fine-tuning for specific environments. Remote configuration capability simplifies installation and maintenance. Supports multiple EOL resistor configurations for flexible integration with alarm panels.

Suitable for

• Indoor security systems in residential and commercial buildings
• Ceiling-mounted installations for wide-area coverage
• Applications requiring high immunity to false alarms
• Integration with wired alarm control panels supporting NC relay outputs

Key specifications

• Detection Technology: Dual (PIR + Microwave)
• Mounting Type: Ceiling
• Detection Range: Up to 10 m diameter (at 2.4 m mounting height)
• Anti-masking: Yes (Active IR)
• Power Supply Voltage: 12 VDC (9-15 VDC)
• Current Consumption (Standby): 12 mA
• Current Consumption (Maximum): 15 mA
• Alarm Output Type: NC Relay (40 mA / 24 VDC)
• Tamper Output Type: NC Relay (40 mA / 24 VDC)
• Operating Temperature Range: -10°C to +55°C
• Environmental Class: II (EN 50130-5)
• Digital Signal Processing: Yes
• Sensitivity Adjustment: Independent PIR and MW
• EOL Resistors Support: Yes (2EOL/NC, 3EOL/NC)
• Creep Zone Detection: Yes
• Remote Configuration: Yes (via PRF-LCD or USB-RS)
• Housing Material: ABS Plastic
• Color: White

Recommendations

For optimal performance, mount the detector at a height of 2.4 meters and ensure the area is free from obstructions. Use the remote configuration tool for fine-tuning sensitivity settings. Always comply with local security installation standards.
