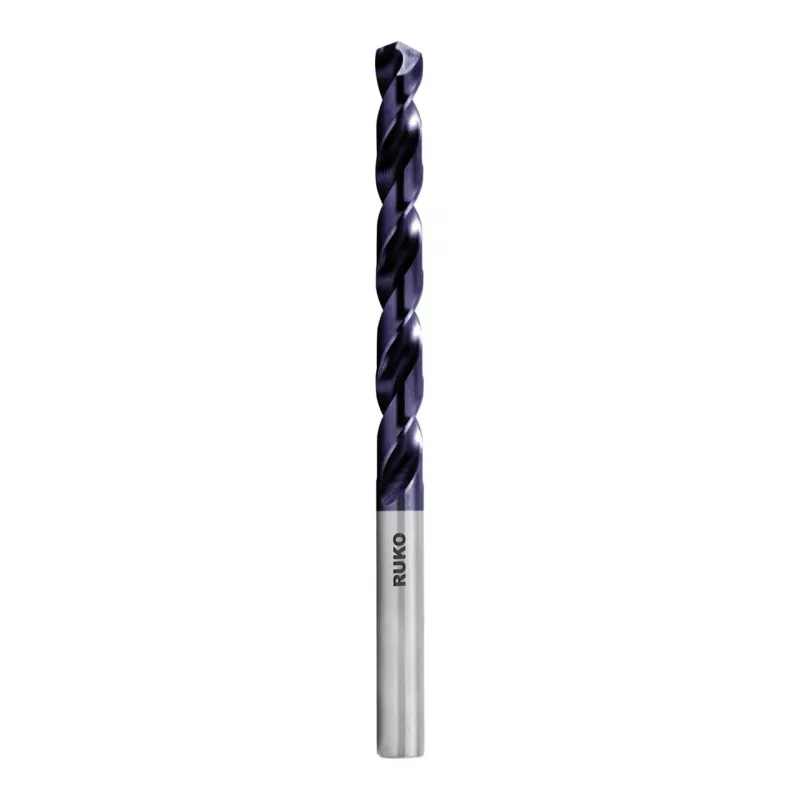

RUKO SPB-DIN338-HSSCo8-TiAlN-Ø7,0mm σπειροειδές τρυπάνι

Twist drill bit with 7.0 mm diameter, engineered for high-performance drilling in tough materials. The TiAlN coating and HSS-Co8 cobalt steel deliver exceptional heat and wear resistance, ensuring long tool life even in hardened steels up to 1100 N/mm².

Advantages

Fully ground from HSS-Co8 with 8% cobalt, this drill bit offers superior hardness and toughness. The TiAlN coating reduces friction and allows higher cutting speeds, while the 130° point angle provides excellent centering and reduced thrust. Right-hand cutting with a cylindrical shank ensures compatibility with standard drill chucks.

Suitable for

• High-alloy steels
• Stainless steel
• Cast iron
• Titanium alloys
• Heat-resistant steels
• Hardened materials

Key specifications

• Drill bit type: Twist drill bit (jobber drill)
• Standard: DIN 338
• Material: HSS-Co8 (8% cobalt)
• Coating: TiAlN
• Diameter: 7.0 mm
• Shank type: Cylindrical
• Shank diameter: 7.0 mm
• Point angle: 130°
• Overall length: 109 mm
• Flute length: 69 mm
• Tolerance: h8
• Cutting direction: Right-hand
• Manufacturing process: Fully ground
• Heat resistance: Very high
• Wear resistance: Very high
• Chip removal: Excellent
• Coolant use: Recommended for optimal performance
• Colour: Bronze/Anthracite

Recommendations

Use with coolant for best results and extended tool life. Suitable for high-performance drilling in demanding industrial applications.
