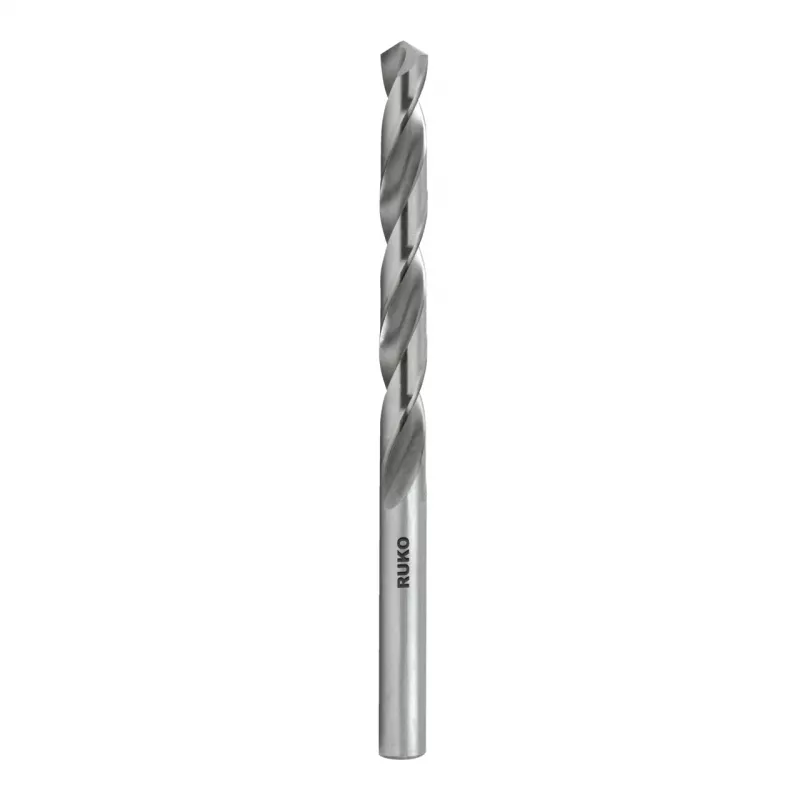

RUKO SPB-DIN338-HSS-G-Kreuz-9,6mm σπειροειδές τρυπάνι

This twist drill bit delivers self-centering precision for general-purpose drilling in steel, cast iron, non-ferrous metals, and plastics. The split point (Kreuzanschliff) with 135° point angle reduces feed pressure and improves hole accuracy.

Advantages

Ground from high-speed steel (HSS-G) to DIN 338, this drill bit offers high concentricity, reduced walking, and consistent performance across common workshop materials. The bright finish supports efficient chip evacuation in right-hand cutting.

Suitable for

• Steel
• Cast iron
• Non-ferrous metals
• Plastics

Key specifications

• Drill diameter: 9.6 mm
• Overall length: 125 mm
• Working length: 87 mm
• Shank type: cylindrical, 9.6 mm
• Point type: split point, 135°
• Material: HSS-G, bright finish
• Tolerance: h8

Recommendations

For best results, use appropriate cutting speed and lubrication when drilling steel. The self-centering tip minimizes the need for center punching.
