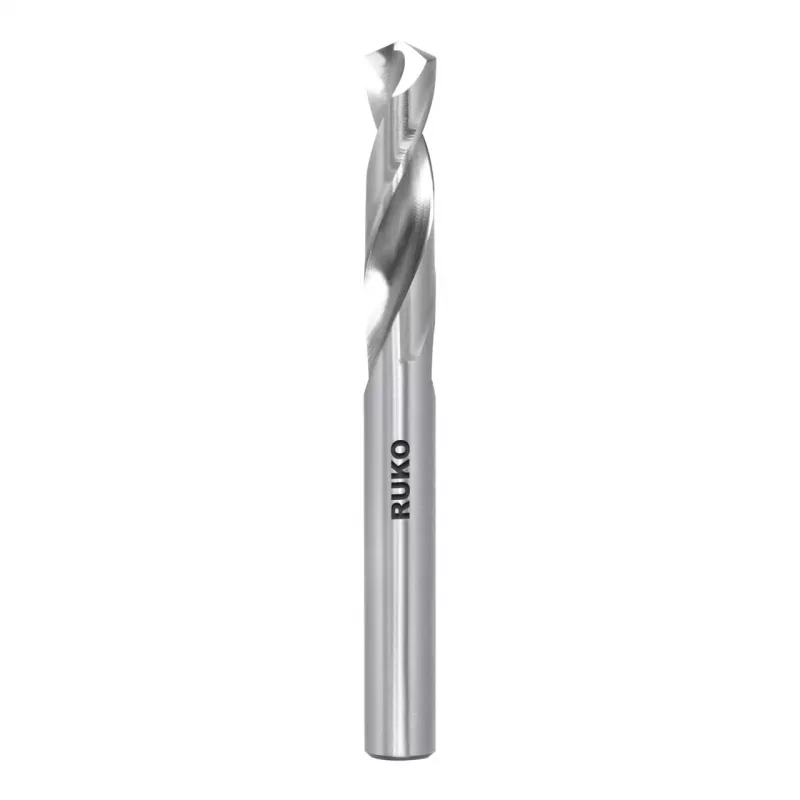

RUKO SPB-DIN1897-HSSCo-Ø11,0mm σπειροειδές τρυπάνι κοντό

The RUKO SPB-DIN1897-HSSCo-Ø11.0mm is a short series twist drill bit engineered for precision and durability in metalworking. Its HSS-Co construction with 5% cobalt enhances heat resistance, making it suitable for drilling stainless and acid-resistant steels, while the split point grind reduces walking and improves centring accuracy.

Highlights

• HSS-Co with 5% cobalt for high heat resistance
• Split point (cross-ground) for precise starting without centre punch
• DIN 1897 short series for increased rigidity
• Fully ground with bright finish for smooth chip evacuation
• Right-hand cutting, cylindrical shank

In daily use

This drill bit excels in industrial drilling of alloyed and unalloyed steel, stainless steel (V2A/V4A), cast iron, and non-ferrous metals. The 130° point angle and h8 tolerance ensure accurate holes, while the short flute length provides stability in demanding applications.

Full specifications

• Drill bit type: Twist drill bit
• Standard: DIN 1897 (short series)
• Material: HSS-Co (5% cobalt)
• Diameter: 11.0 mm
• Shank type: Cylindrical (parallel)
• Shank diameter: 11.0 mm
• Total length (l1): 94 mm
• Flute length (l2): 57 mm
• Point angle: 130°
• Point grind: Split point (cross-ground)
• Surface finish: Bright / polished
• Manufacturing process: Fully ground
• Tolerance: h8
• Cutting direction: Right-hand cutting
• Recommended materials: Alloyed and unalloyed steel, stainless steel (V2A/V4A), cast iron, non-ferrous metals, heat-resistant steel, acid-resistant steel, high-alloy steel
• Application: Industrial drilling, metalworking
• Packaging: Single drill bit

Final note

A reliable choice for professionals requiring precision and longevity in tough materials.
