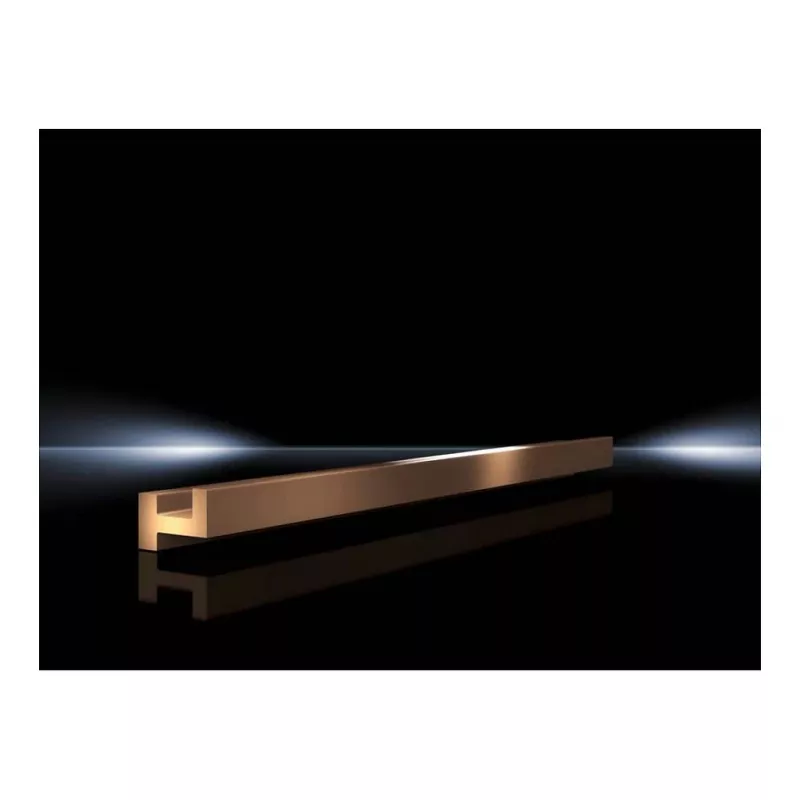

Rittal PLS Ειδική ράβδος συλλογής E-Cu (PLS1600), L=2400 mm

This special busbar for the Rittal PLS1600 system delivers a continuous current rating of 1600 A, enabling efficient power distribution in low-voltage switchgear. Its 100 x 10 mm electrolytic copper profile ensures low resistance and excellent thermal performance, while the 2400 mm length supports extended busbar runs with minimal joints.

Advantages

Manufactured from bare electrolytic copper (E-Cu), the busbar offers high conductivity and is fully compliant with RoHS and REACH. It is engineered to withstand short-circuit currents up to 50 kA for 1 second, providing robust protection in demanding electrical installations. The untreated surface allows for direct connection or optional plating, giving flexibility in assembly.

Suitable for

• Power distribution in Rittal PLS1600 busbar systems
• Low-voltage switchgear and controlgear assemblies
• Main and sub-distribution boards up to 1000 V AC/DC
• Industrial plants requiring high current capacity

Key specifications

• Product type: Busbar
• Material: Electrolytic copper (E-Cu)
• System compatibility: Rittal PLS1600
• Length: 2400 mm
• Cross-section: 100 x 10 mm
• Rated current: 1600 A
• Rated voltage: up to 1000 V AC/DC
• Short-circuit withstand: 50 kA (1 s)
• Mounting: for Rittal PLS busbar supports
• Surface: bare copper
• Standards: IEC 61439-1/-2 (for complete assembly)

Recommendations

For optimal performance, use this busbar with original Rittal PLS busbar supports and torque connections to the manufacturer's specifications. Ensure proper clearance and creepage distances according to IEC 61439 when integrating into switchgear.
