Rack αξεσουάρ Lanview RAS105WH λευκό 1U 50kg

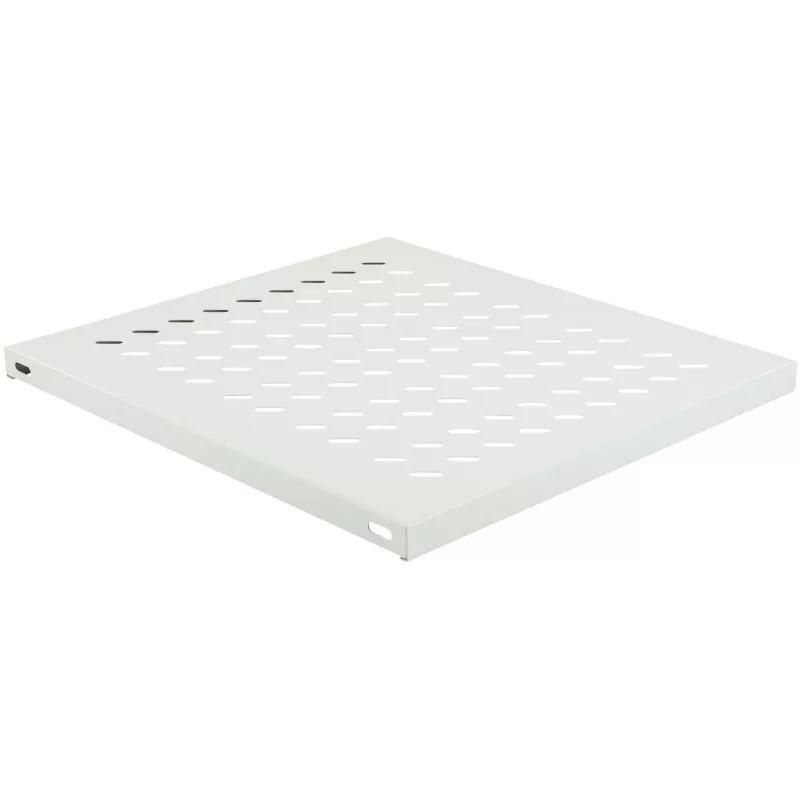

19" fixed shelf for 1U installation, compatible with LOGON cabinets. The shelf has outer dimensions W 465 x D 525 x H 25 mm and is finished in RAL 7035 (light gray). It features four connection points and ventilation slots in the load surface. Maximum static load capacity is 50 kg; the shelf accepts cable organizers attached to rectangular openings at the front and rear for orderly cable routing.

Advantages

The fixed 1U shelf provides a compact, stable platform for mounting equipment in 19" racks. Its four mounting points ensure secure attachment to cabinet rails, while ventilation slots help prevent heat buildup under mounted devices. Rectangular openings at both ends allow installation of single cable organizers to keep cables neat and separated. The RAL 7035 finish offers a neutral, industry-standard appearance suitable for most technical environments.

Suitable for

• Mounting small servers, network switches or peripheral devices in 1U space
• Use in LOGON-compatible 19" cabinets with up to 800 mm cabinet depth
• Organizing cables for devices installed on the shelf

Key specifications

• Manufacturer: Lanview
• Model / MPN: RAS105WH
• Dimensions (W x D x H): 465 x 525 x 25 mm
• Designed rack width: 19" (1U)
• Maximum static load: 50 kg
• Color: RAL 7035 (light gray)
• Compatibility: LOGON cabinets, cabinet depth up to 800 mm
• EAN: 5420016845283

How to use

Secure the shelf to the cabinet rails using the four provided connection points, aligning the shelf with the 1U position you require. Place devices on the shelf within the 50 kg load limit and route power and network cables through the rectangular openings. Attach single cable organizers to these openings at the front and rear to fasten and separate cables for improved access and airflow.

Recommendations

Do not exceed the specified maximum static load of 50 kg. Ensure the shelf is mounted level and all four connection points are engaged. Allow clearance for airflow around mounted equipment and use cable organizers to prevent strain on connectors.
