Πομποδέκτης και δέκτης AV Lindy 300m Fibre Optic HDMI 4K60

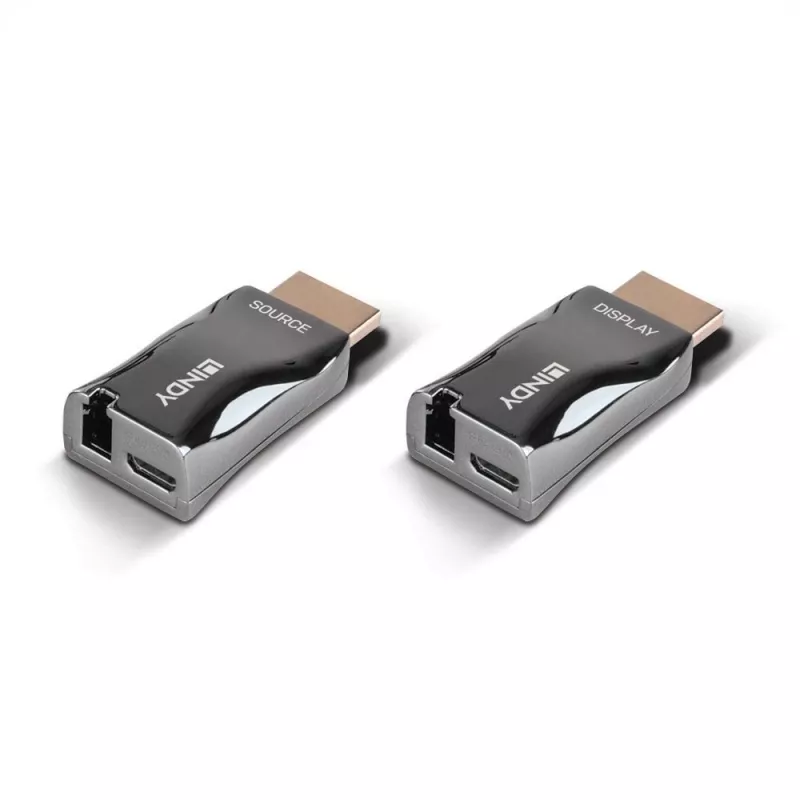

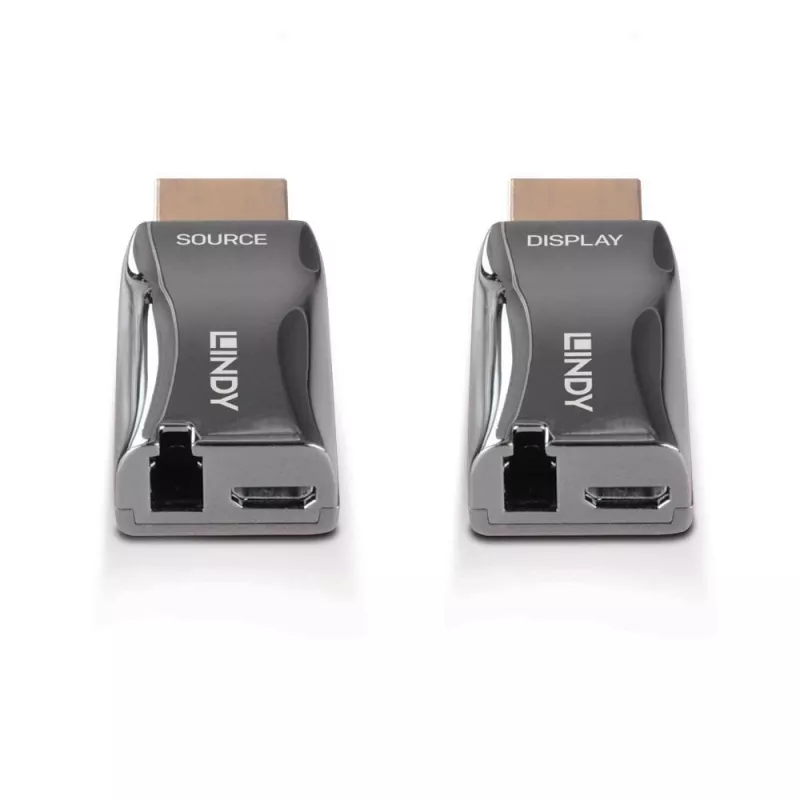

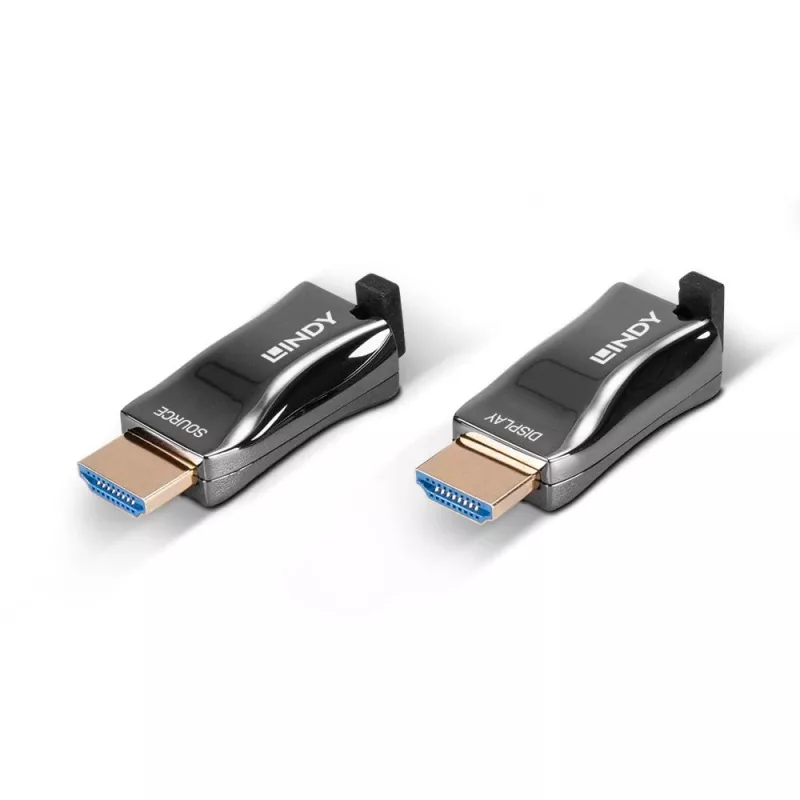

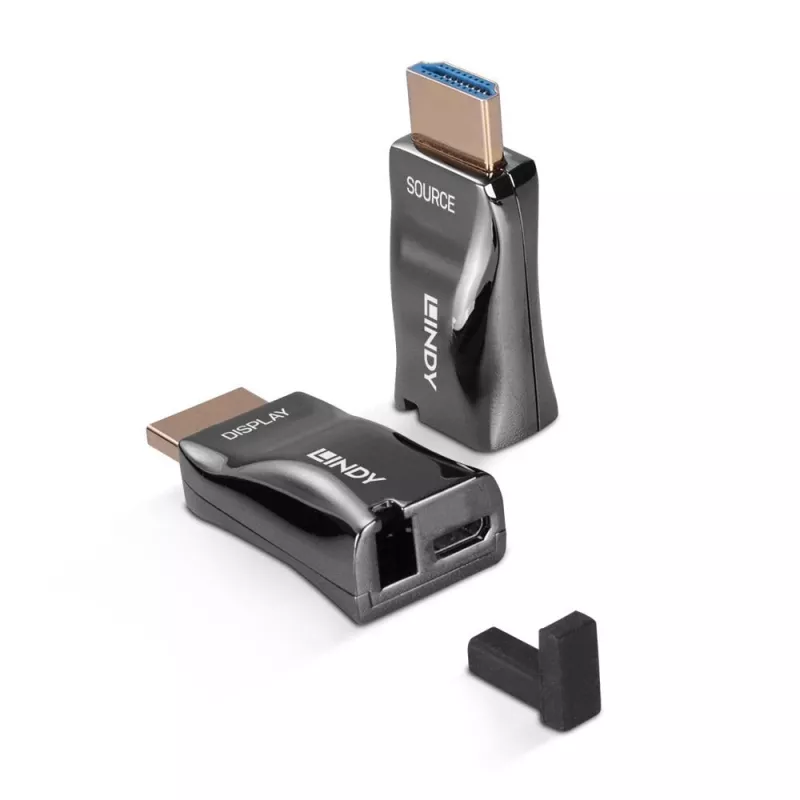

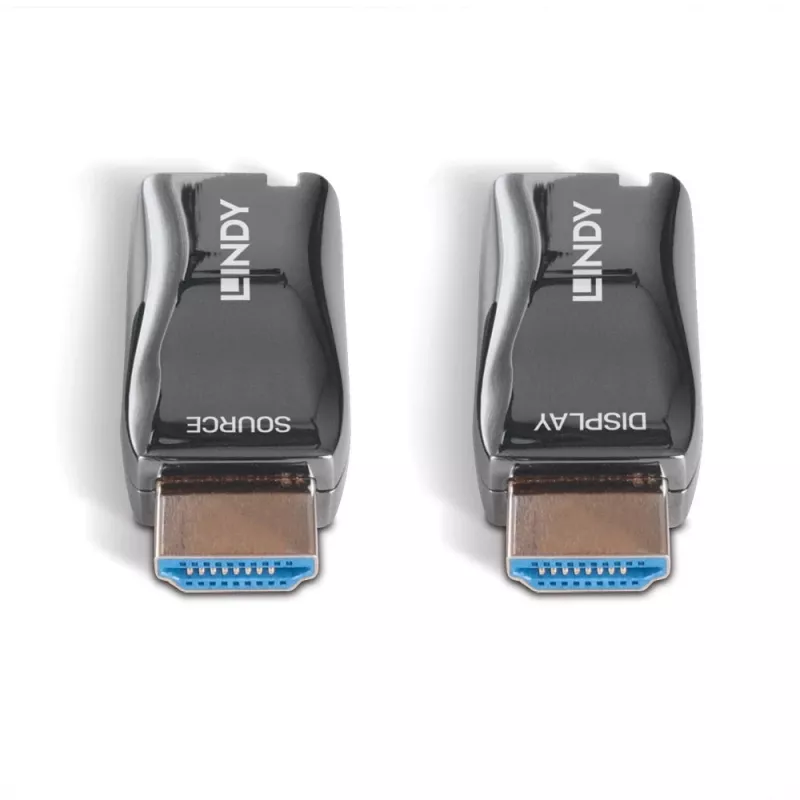

The Lindy Fibre Optic HDMI® 4K60 Dongle Extender is an effective, reliable solution for extending UHD HDMI® transmissions over incredible distances up to 300m using one simplex LC OM3 or OM4 multi-mode (50/125µm) fibre optic cable.

The extender can transmit 3840x2160@60Hz 4:4:4 8bit signals up to 300m with a OM3 or OM4 cable using smart methods of compression which decompresses the video at the receiver, allowing for distribution of visually lossless UltraHD content. With HDR (High Dynamic Range), HLG and Dolby Vision support, content can be seen enhanced contrast, and a much wider colour gamut, perfect for a true home cinema experience or eye-catching digital signage in retail settings. HDCP 2.2 compatibility allows protected 4K content, including Blu-Ray movies, TV shows & streaming services to be enjoyed without issue.

Support for lossless audio formats including Dolby Atmos & Dolby TrueHD adds powerful multi-channel sound to video content, providing an enhanced experience and sense of realism to the viewer.

The use of cost-effective LC multi-mode fibre optic cabling allows for the transmission of high bandwidth audio and video signals over incredible distances, far greater than is achievable with traditional copper-based extension systems. Fibre optic cables are also completely immune to any electromagnetic and radio frequency interference which makes this extender an ideal solution for installations within environments susceptible to high interference such as medical, aerospace and manufacturing facilities. The compact size and flexibility also allow for easy installation under floors and within wall partitions.

The low power requirement and super slim form factor provide invaluable flexibility when incorporating this extender into new and existing installations. The enclosed HDMI® extension cables allows each module to be placed in a convenient location near the source and display without blocking ports and creating a discreet installation. The transmitter unit can be connected and powered by a variety of HDMI® source and devices while the receiver needs to be powered via the USB Micro-B port connecting it to a 5V USB charger or any powered USB port.

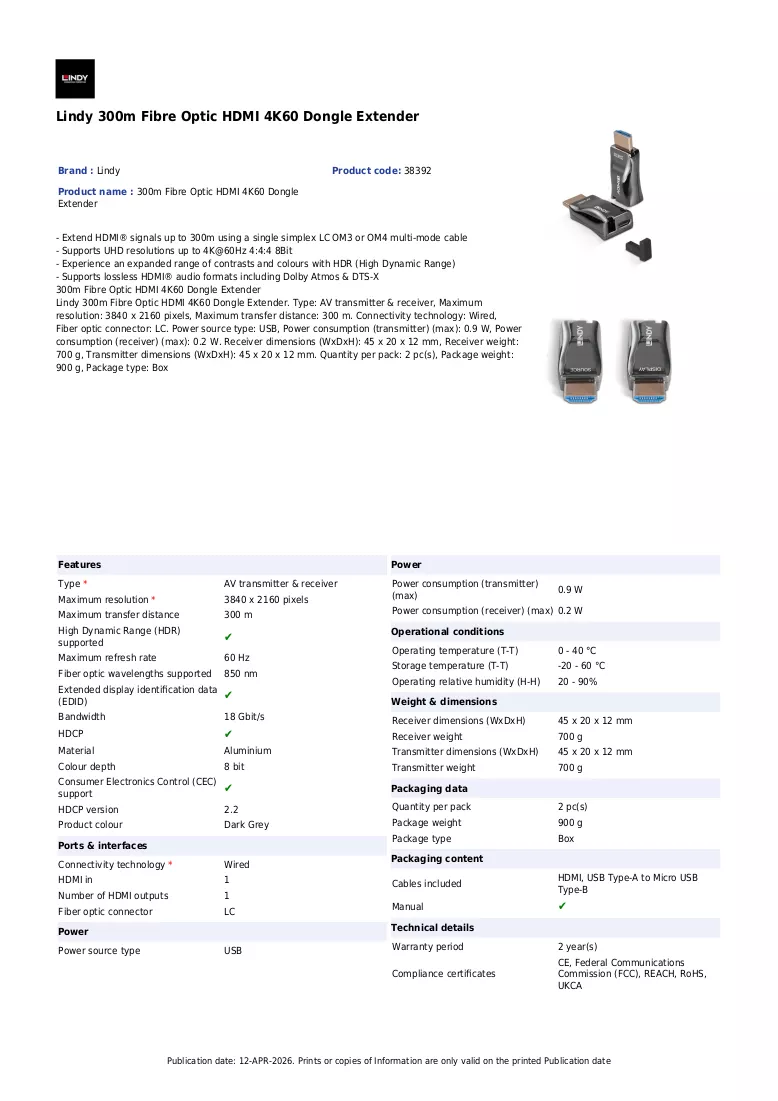

Lindy 300m Fibre Optic HDMI 4K60 Dongle Extender. Type: AV transmitter & receiver, Maximum resolution: 3840 x 2160 pixels, Maximum transfer distance: 300 m. Connectivity technology: Wired, Fiber optic connector: LC. Power source type: USB, Power consumption (transmitter) (max): 0.9 W, Power consumption (receiver) (max): 0.2 W. Receiver dimensions (WxDxH): 45 x 20 x 12 mm, Receiver weight: 700 g, Transmitter dimensions (WxDxH): 45 x 20 x 12 mm. Quantity per pack: 2 pc(s), Package weight: 900 g, Package type: Box

How to use

Connect the transmitter to the HDMI source using the enclosed HDMI extension lead and plug the LC fibre into the transmitter's LC port. At the display end connect the LC fibre to the receiver and attach the enclosed HDMI extension lead to the display input. Power the receiver via the USB Micro‑B port using a 5 V USB charger or any powered USB port; the transmitter can be powered by the HDMI source when supported. Ensure correct fibre type (OM3/OM4 multimode 50/125µm) and follow the device orientation markers when inserting fibre connectors.

Recommendations

For reliable 4K60 4:4:4 transmission up to 300 m, use quality OM3 or OM4 multimode LC simplex cable, avoid tight bends in the fibre (respect the bend radius), and connect HDCP‑compliant sources when playing protected content. If power from the HDMI source is not available for the transmitter, use a suitable USB power source for the receiver and verify cable terminations before installation.
