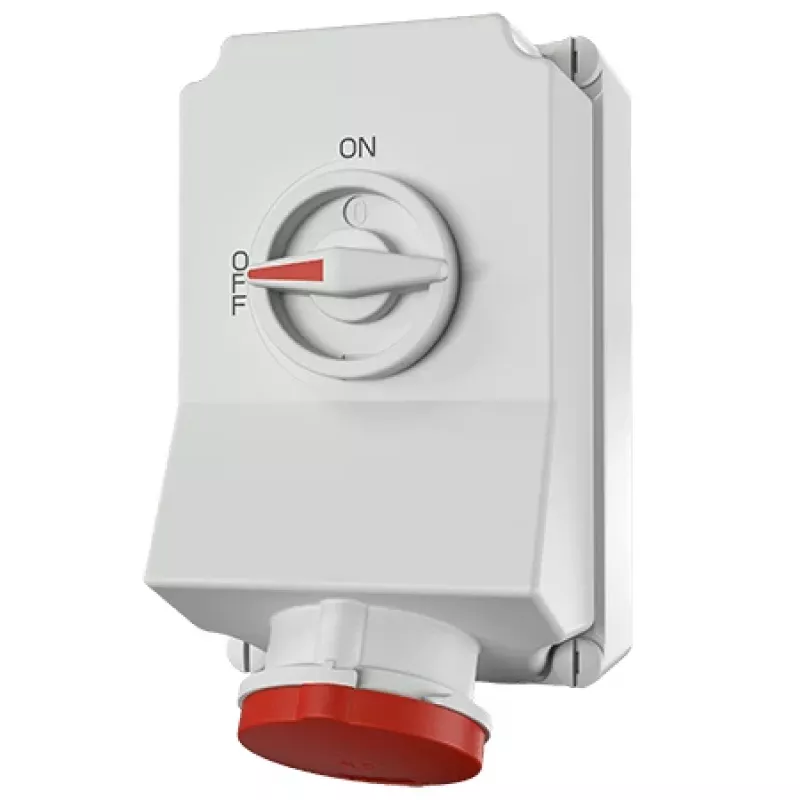

MENNEKES DUO επιτοίχια πρίζα 63A 5-πολική 6h 400V IP44 5959A

Industrial and commercial environments often require robust, high-current power distribution points that can withstand mechanical stress and moisture. The MENNEKES DUO wall-mounted socket provides a dependable 63 A, 400 V connection with two outlets, allowing simultaneous operation of two devices from a single installation point.

Who is it for

This socket is intended for electricians, facility managers, and industrial users who need a fixed, wall-mounted CEE power outlet for heavy-duty equipment such as motors, generators, or distribution boards. It is suited for workshops, factories, construction sites, and agricultural buildings where a durable and splash-proof connection is required.

Main features

• Rated current: 63 A, rated voltage: 400 V, 5-pole (3P+N+PE), 6h earth position.
• DUO design: two CEE sockets in one housing, enabling dual device connection.
• IP44 protection: guards against solid objects over 1 mm and splashing water.
• Wall-mounted with screw terminals for secure wiring.
• Housing made of polyamide for high mechanical strength and insulation.
• Complies with IEC 60309 for industrial plugs and sockets.

Specifications

• Current Rating: 63 A
• Voltage Rating: 400 V
• Number of Poles: 5-pole (3P+N+PE)
• Hour Position: 6h
• Ingress Protection: IP44
• Mounting Type: Wall-mounted
• Socket Type: CEE Industrial Socket
• Design: DUO (Double Socket)
• Frequency: 50/60 Hz
• Connection Technology: Screw terminals
• Housing Material: Polyamide
• Standard: IEC 60309
• Type of Current: AC

Tips

Ensure that the supply cable and circuit breaker are rated for 63 A to avoid overload. Mount the socket at a height that minimises exposure to direct water jets, and check the gasket regularly to maintain IP44 protection.
