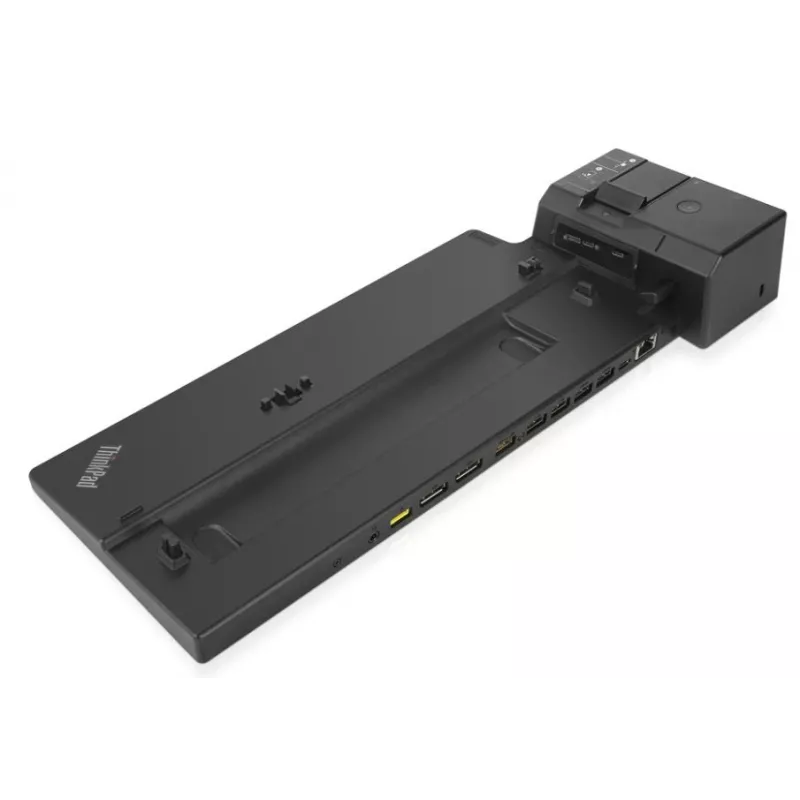

Lenovo 40AH0135EU Σταθμός σύνδεσης φορητού υπολογιστή/Replicator θυρών Docking μαύρο

The Lenovo 40AH0135EU docking station is a compact, enterprise-grade docking solution designed for ThinkPad notebooks. It provides a driver-free side connector for convenient attachment to a range of USB accessories and external displays, supports rapid charging and features a mirrored power button. Built for large enterprise environments, the dock supports PXE boot, Wake-on-LAN and MAC address pass-through to simplify IT asset management. The unit has a black finish, measures 159 mm × 378 mm × 54.1 mm and includes a Kensington cable lock slot for added security.

Advantages

The docking station delivers reliable wired network connectivity with a 10/100/1000 Mbit/s Ethernet port and expands workstation I/O with three USB 3.2 Gen 1 Type-A ports and two USB 2.0 ports. Its driver-free side connector streamlines daily docking and undocking for ThinkPad users, while enterprise features such as PXE boot and Wake-on-LAN support help IT departments manage devices remotely. The compact black design fits typical office setups and the Kensington lock slot enhances physical security.

Suitable for

• Enterprise workstations and hot-desking environments
• IT asset management with PXE boot and Wake-on-LAN requirements
• Users needing multiple USB peripherals and a wired Gigabit Ethernet connection
• Offices seeking a compact docking station with physical security (Kensington lock)

Key specifications

• Model: Lenovo 40AH0135EU
• Connectivity: Docking station with driver-free side connector
• Ethernet: 1 × RJ-45, 10/100/1000 Mbit/s
• USB ports: 3 × USB 3.2 Gen 1 (Type-A), 2 × USB 2.0
• Colour: Black
• Weight: 0.765 kg
• Dimensions (W × D × H): 159 mm × 378 mm × 54.1 mm
• Kensington cable lock slot: Yes
• Enterprise features: PXE boot, Wake-on-LAN, MAC address pass-through

How to use

Place the docking station on a stable surface and connect it to a compatible ThinkPad using the side connector. Attach required peripherals—USB devices and an Ethernet cable—to the corresponding ports. If needed, secure the unit with a Kensington cable lock. Power on the notebook; the docking station supports driver-free operation for basic connectivity and will expose network and USB peripherals automatically. Use PXE boot or Wake-on-LAN where supported by your IT infrastructure.

Recommendations

For reliable network performance, connect the Ethernet cable to a Gigabit-capable switch or router. Ensure your ThinkPad firmware and enterprise management settings are configured to take advantage of PXE boot, Wake-on-LAN and MAC pass-through features. Use the Kensington lock in shared or public workspaces to deter theft.
