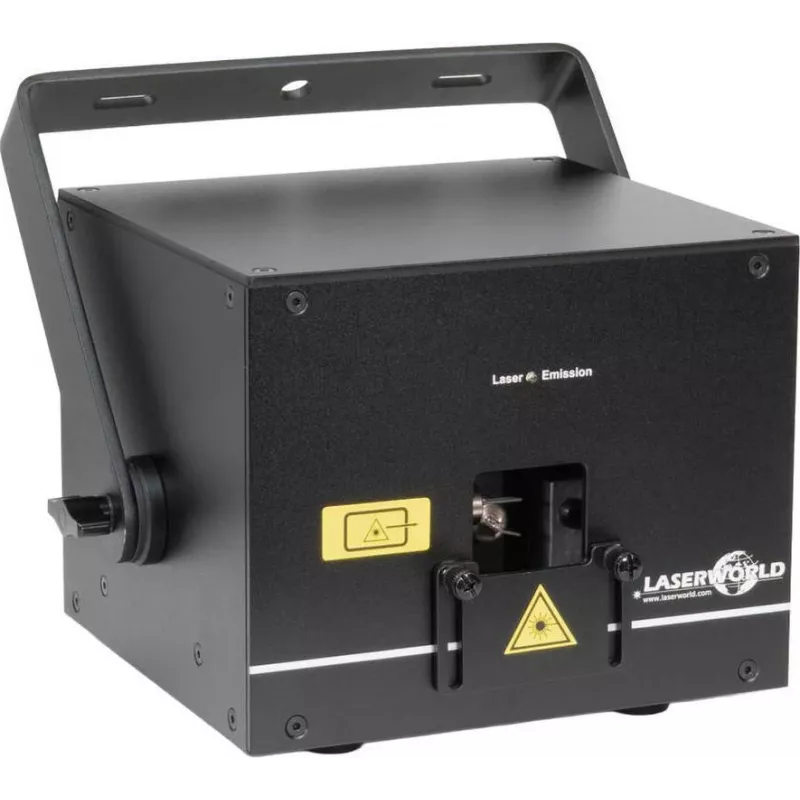

LASERWORLD CUBE 1 (51743255)

The LASERWORLD CUBE 1 stands apart from typical laser projectors by packing a guaranteed 800 mW of total laser power into a compact aluminum housing, with a typical output reaching 1000 mW. This Class 4 laser system combines red, green, and blue diode sources to deliver vibrant, high-contrast beams and graphics for professional shows, clubs, and mobile entertainers.

Highlights

• Guaranteed total laser power: 800 mW (typical 1000 mW)
• RGB diode laser source: 200 mW red (638 nm), 200 mW green (520 nm), 600 mW blue (450 nm)
• Fast galvo scanning at 28 kpps @ 8° ILDA with a max scan angle of 40°
• Versatile control: Auto, Music, DMX (12 channels), ILDA, Master/Slave
• Over 120 built-in patterns including layers, tunnels, fences, and waves
• Robust aluminum housing with fan cooling for reliable operation

In daily use

The CUBE 1 is ready for immediate use with its built-in show modes and automatic sound activation. For more complex productions, connect a DMX controller or ILDA-compatible software to take full advantage of the precise galvo system. The wide 40° scan angle fills rooms with sharp beams and graphics, while the fan cooling keeps the unit stable during long events. The aluminum chassis withstands the rigors of touring and installation alike.

Full specifications

• Total laser power (guaranteed): 800 mW
• Total laser power (typical): 1000 mW
• Red laser: 200 mW / 638 nm
• Green laser: 200 mW / 520 nm
• Blue laser: 600 mW / 450 nm
• Laser source type: Diode
• Laser class: Class 4
• Scanner system: Galvo System
• Scan speed: 28 kpps @ 8° ILDA
• Max scan angle: 40°
• Operating modes: Auto, Music, DMX, ILDA, Master/Slave
• DMX channels: 12
• ILDA compatibility: Yes
• Built-in patterns: >120
• Power supply: 85-250 V AC, 50/60 Hz
• Power consumption: 60 W
• Housing material: Aluminum
• Cooling method: Fan
• Operating temperature: 10 - 40 °C

Final note

The LASERWORLD CUBE 1 delivers professional-grade laser performance in a compact, durable package, making it an excellent choice for DJs, clubs, and event production companies seeking a reliable RGB laser projector.
