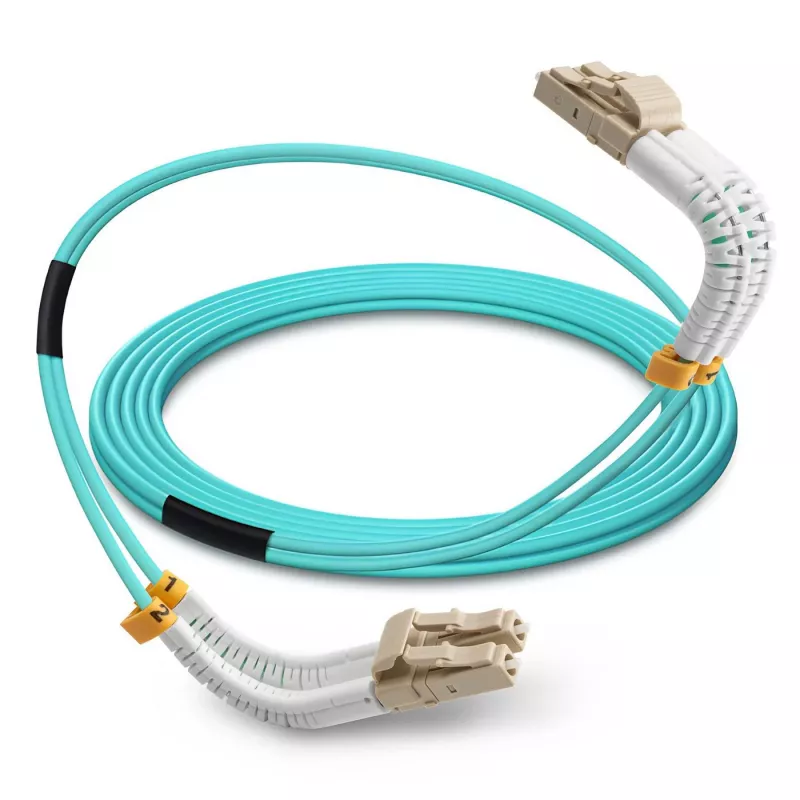

Lanview LVO231220-FLEX Καλώδιο InfiniBand/οπτικών ινών 20 m LC LC/LC χρώμα aqua

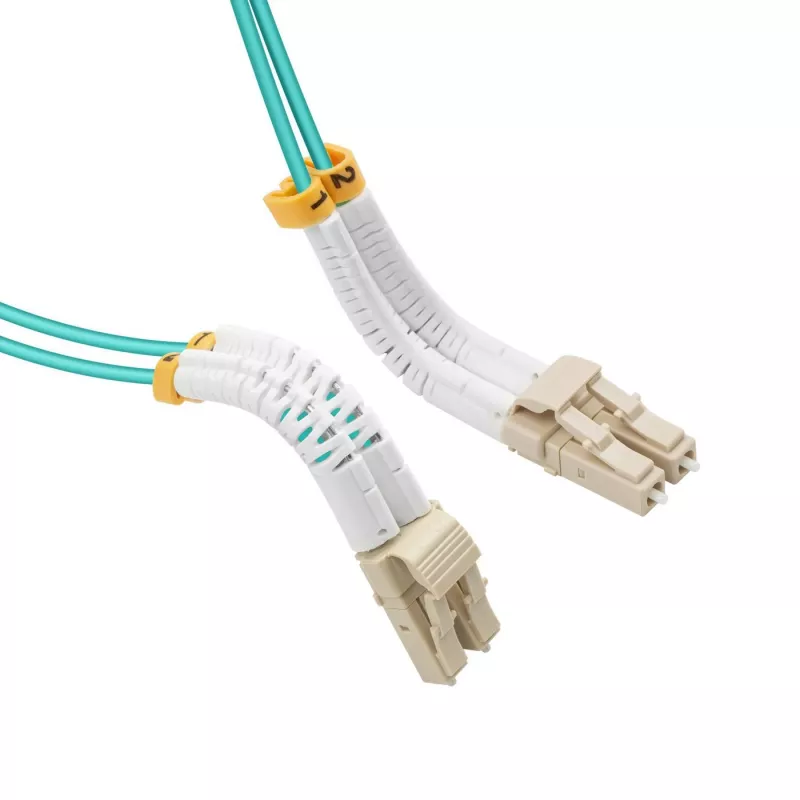

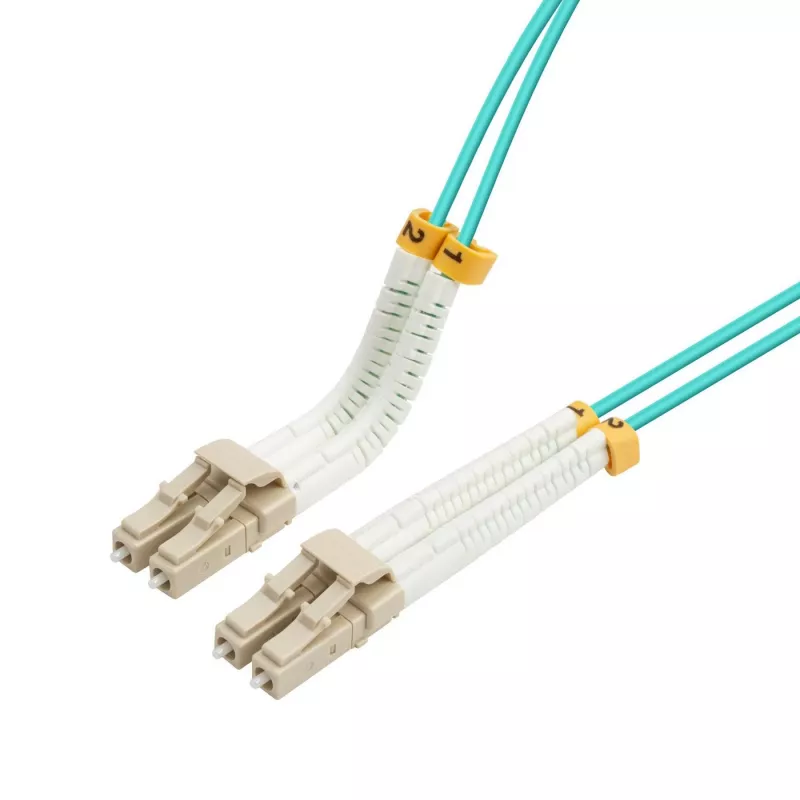

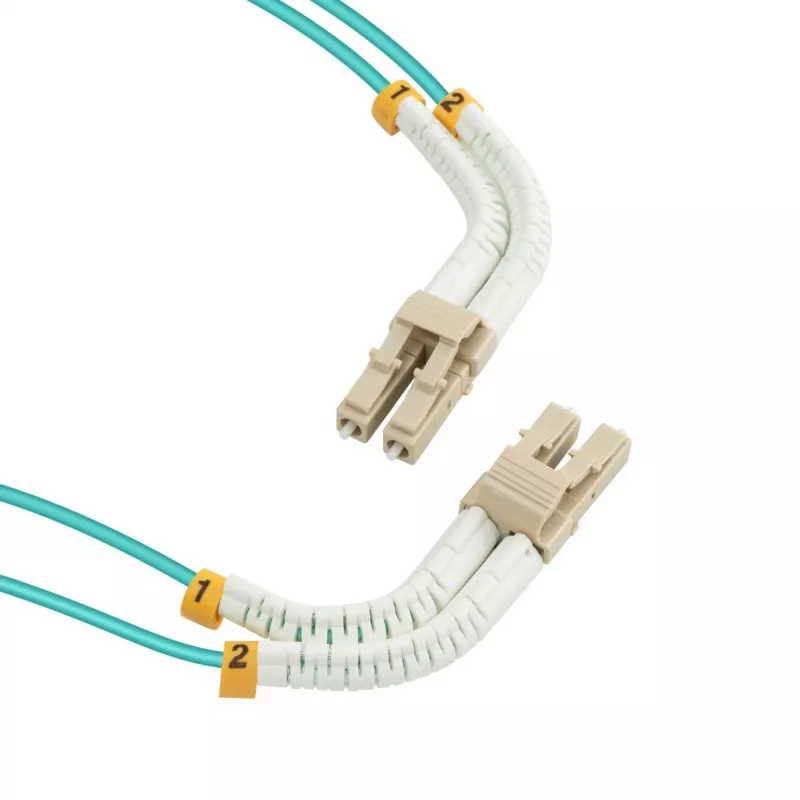

The Lanview Bendable series LVO231220-FLEX is a 20 m fibre optic patch cable with LC connectors on both ends, using OM3 multimode fibre (50 µm core) in an aqua-coloured jacket. Designed for flexible cable management, the boot contains a single stainless-steel wire that allows the connector boot to be bent and hold any angle from straight to 90° while preserving the internal fibre alignment for reliable full-duplex transmission.

Advantages

The bendable boot can be adjusted by hand and maintains its set angle thanks to the internal stainless-steel wire, enabling stable connector positioning in confined or high-density installations. The boot can be repositioned or straightened quickly for connector disconnection, and the OM3 multimode construction supports high-speed data links suitable for network backbones and server racks.

Suitable for

• High-density patch panels and server racks
• Confined or shallow-installation spaces
• Short to medium multimode links requiring OM3 performance
• Full-duplex data transmission in local networks

Key specifications

• Cable type: LC/LC
• Length: 20 m
• Fibre type: OM3 multimode, 50 µm core
• Connector 1: LC
• Connector 2: LC
• Colour: Aqua
• Weight: 0.35 kg
• MPN: LVO231220-FLEX
• EAN: 5715063505939

How to use

Route the cable to the required ports, bend the boot by hand to achieve the desired angle and position the connector in the patch panel or network device. The internal wire will hold the angle; straighten the boot when you need to remove or replace the connector. Ensure connectors are clean before mating to maintain optimal signal performance.

Recommendations

Use this LC–LC OM3 cable where space is limited or where controlled connector orientation improves cable management. Avoid excessive force beyond the designed bend range and keep connector end-faces free of dust and contaminants to preserve link quality.
