KVM-Switch ATEN CL6700MW Τοποθέτηση σε Rack Μαύρο USB 1920x1080

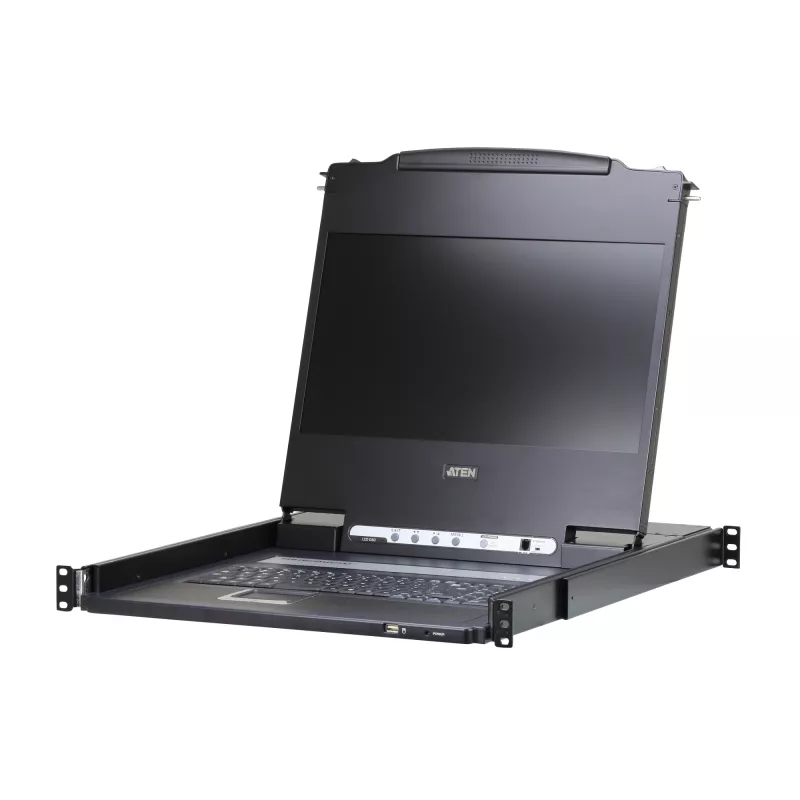

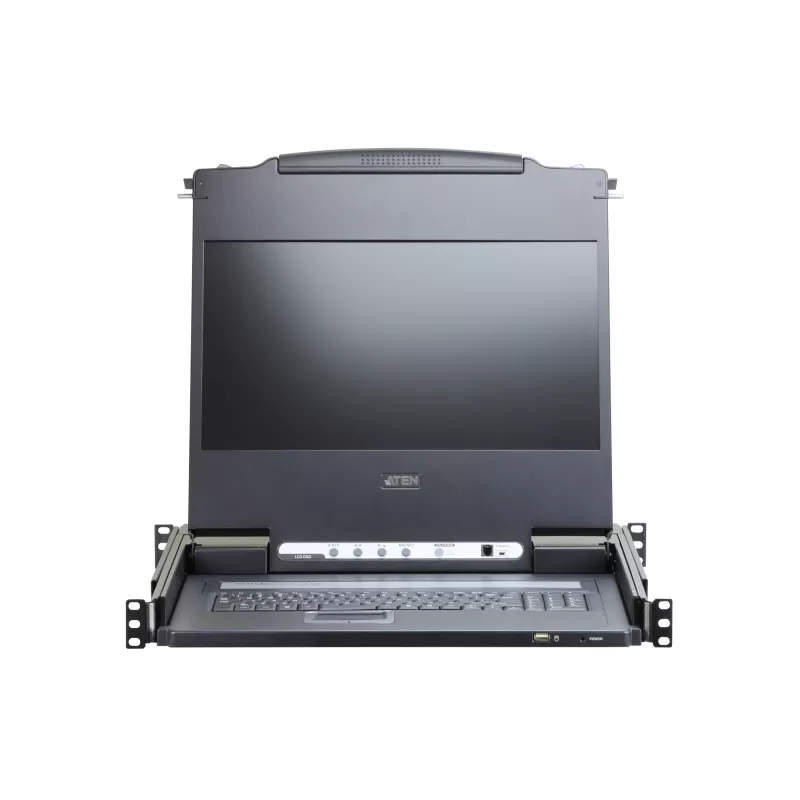

The CL6700 features an integrated 17.3" (CL6700MW) or 19” (CL6700N) LED-backlit LCD panel, a full keyboard, and a touchpad in a 1U rack-mountable sliding housing with audio support. The CL6700 LCD KVM console provides front end access to compatible KVM switches utilizing space with a module that closes flat and slides into the rack.

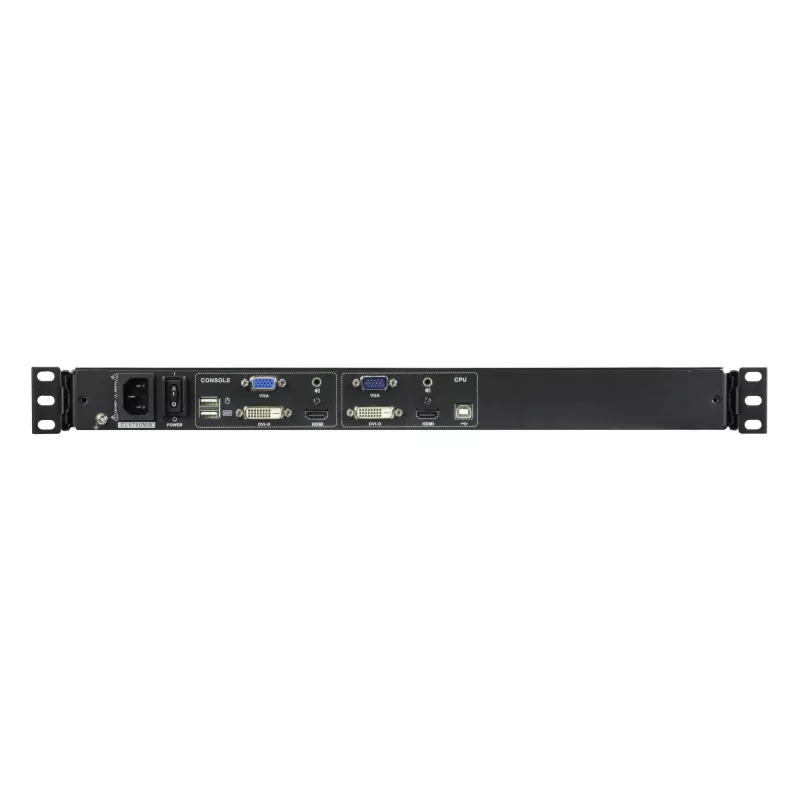

The CL6700MW supports three types of video input – HDMI, DVI, and VGA – and provides the ultimate in installation flexibility by allowing users to connect the console and the computer via any of the three types of video source. For added convenience, the 17.3" full HD console features a port for an external USB mouse on the unit’s front panel, while ports for the second KVM console (USB keyboard, USB mouse and HDMI, DVI, or VGA monitor) are provided on the rear panel.

While the CL6700MW supports multiple video interfaces, the CL6700N is a dedicated front end sliding console for compatible DVI KVM switches. The CL6700N supports DVI video input and provides ports for the second KVM console (USB keyboard, USB mouse and DVI or VGA monitor) on the rear panel. Both of the CL6700MW and CL6700N include two mini stereo ports for connecting audio speakers.

Users who already have a switch can take advantage of the space saving and efficiency benefits of the CL6700 LCD KVM console without the unnecessary expense of having to purchase a KVM switch. This model provides convenient ‘at the rack’ console access to KVM switches already installed at your site.

Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below.

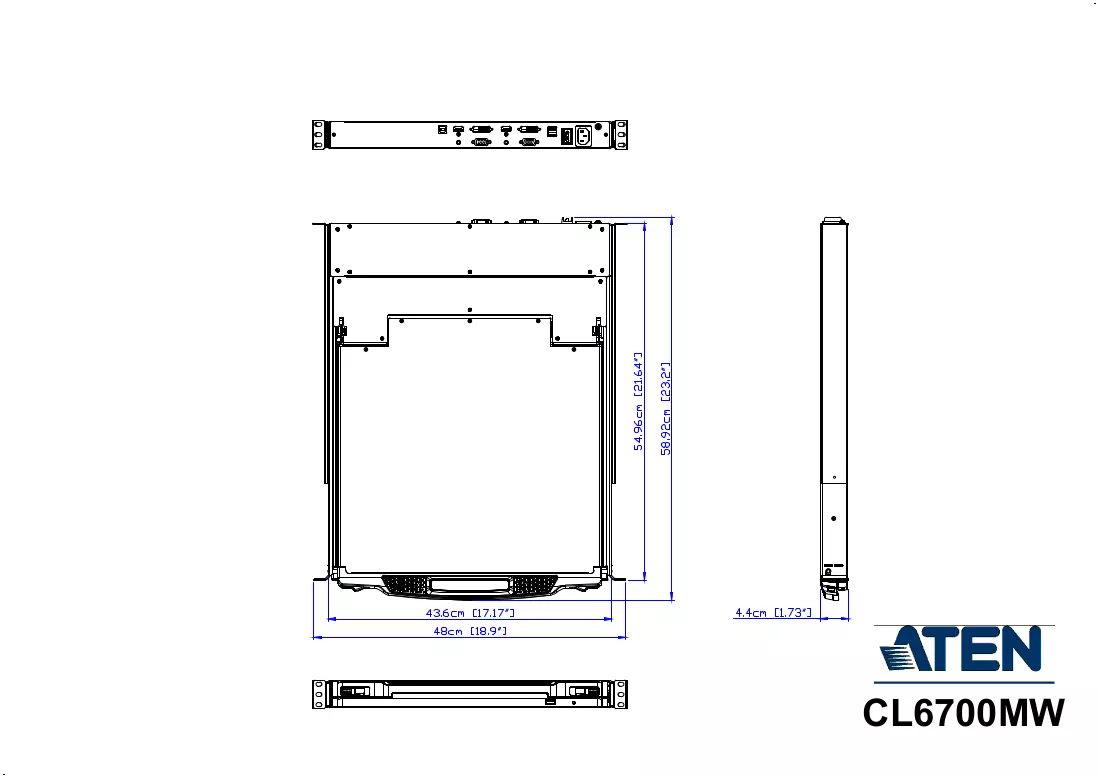

ATEN CL6700MW. Display diagonal: 43.9 cm (17.3"), Display resolution: 1920 x 1080 pixels, Display: LCD. DVI connector type: DVI-D, Keyboard port type: USB, Mouse port type: USB. Keyboard language: Swiss, Keyboard layout: QWERTZ. Power consumption (typical): 19.4 W, AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50/60 Hz. Width: 589.2 mm, Height: 44 mm, Depth: 480 mm

How to use

Mount the CL6700MW in a 1U rack slot and slide the unit into place until it closes flat. Connect the console to your target KVM switch or computer using the appropriate video cable (VGA, DVI or HDMI) and connect USB cables for keyboard and mouse operation. Use the integrated keyboard and touchpad to control the connected system; if needed, connect an external high-definition monitor to the console’s HDMI port.

Recommendations

Install the console in a stable rack environment with sufficient ventilation and ensure video and USB cables are securely connected. For best image quality, use HDMI or DVI connections at 1920x1080 resolution. Regularly check mounting screws and cable strain relief to maintain reliable operation.
